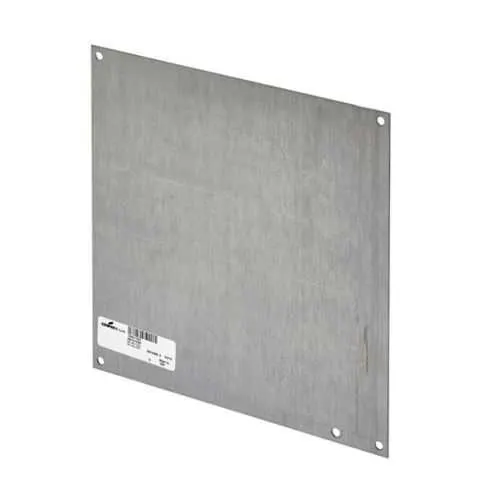

Eaton N1612P Panel Enclosure - NEMA 3R ANSI 61 Gray
Part Number: N1612P
Quick Summary
The Eaton N1612P Panel Enclosure is a rugged wall‑mounted solution for housing wiring and pull boxes in industrial spaces. Engineers often face weather exposure, tight spaces, and code compliance challenges when expanding panels, and downtime during installation can be costly. This enclosure carries UL Listed, CSA C22.2, and NEMA 3R ratings, providing reliable protection in demanding environments. The galvanized steel body with ANSI 61 gray finish offers durable protection against corrosion, while the 9 in depth and 13 in height deliver workable internal volume for wiring, splices, and connectors. Its compatibility with 16" x 12" enclosures and Type 3R large continuous hinge cover supports scalable, code‑compliant installations. Pair it with Eaton B-Line accessories for faster assembly and long‑term maintenance efficiency.
Product Information
Extended Description
N1612P Eaton: Eaton B-Line series panel enclosure, NEMA 3R, ANSI 61 gray painted, Used as wiring boxes, junction and pull boxes, Galvanized steel, Wall mounting, Fits enclosures 16" X 12", Panel enclosures, Type 3r large continuous hinge cover, Panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
N1612P
UPC
782051377002
Product Length/Depth
9 in
Product Height
13 in
Product Width
0.063 in
Product Weight
1.075 lb
Certifications
UL Listed CSA C22.2. NEMA
Application
Used as wiring boxes, junction and pull boxes
Material
Galvanized steel
Finish color
ANSI 61 gray painted
Mounting method
Wall
Special features
Fits enclosures 16" X 12"
Product Category
Panel enclosures
Type
Type 3r large continuous hinge cover
Degree of protection
NEMA 3R
Feature: NEMA 3R weather‑resistant enclosure protects internal wiring in outdoor or damp environments. Business Impact: Reduces weather‑related outages and corrosion‑driven maintenance costs, ensuring long service life. Application: Suitable for exterior wall installations and demanding industrial spaces where moisture exposure is a concern. The robust protection translates to predictable uptime and lower lifecycle costs. Feature: Galvanized steel construction with ANSI 61 gray painted finish. Business Impact: Provides durable, paintable protection that resists corrosion and abrasion, lowering repaint cycles and replacement risk. Application: Ideal for plants, warehouses, and outdoor panels requiring a professional finish and rugged performance. Feature: Mounting method and internal fitment. Business Impact: Wall mounting and a 16" x 12" enclosure fit enable fast retrofits and flexible layouts, reducing installation time and reinforcing scalable infrastructure. Application: Wiring boxes, junction boxes, and pull boxes in compact spaces benefit from quick access and organized wiring. Feature: Type 3R large continuous hinge cover. Business Impact: Simplifies opening and closing for maintenance crews, improving service efficiency and reducing time‑to‑grid for panel work. Application: Frequent access panels in manufacturing lines and electrical rooms. Feature: Certifications and standards alignment UL Listed, CSA C22.2, NEMA 3R. Business Impact: Simplifies compliance documentation, lowers risk during audits, and supports safer, code‑compliant installations. Application: Suitable for regulated facilities and projects requiring proven electrical enclosure performance.
Get a Quick Quote for a Eaton N1612P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton N1612P?
Enquire Now
FAQs
The N1612P is a wall‑mounted galvanized steel panel enclosure designed for wiring boxes, junction boxes, and pull boxes. It carries UL Listed and CSA C22.2 certifications with a NEMA 3R rating, and it fits enclosures up to 16" x 12". This combination supports reliable, code‑compliant electrical distribution in harsh environments.
Yes. The N1612P is specified to fit enclosures 16" x 12", leveraging a Type 3R large continuous hinge cover and a wall‑mount design to simplify retrofits and new installations while maintaining a clean, compliant enclosure footprint.
The N1612P carries UL Listed and CSA C22.2 certifications and a NEMA 3R rating. These approvals validate electrical safety, performance under prescribed conditions, and weather resistance, which reduces risk during audits and supports reliable operation in outdoor or damp locations.
Plan for wall mounting at accessible height, ensure compatible B‑Line accessories are available for wiring routing, and verify the enclosure’s internal space for termination and conduit entries. The 9" depth and 13" height provide practical room for splices and connectors while maintaining a compact footprint.
Durability of galvanized steel and ANSI 61 gray finish minimizes repainting and corrosion over time, reducing maintenance frequency. The weather‑resistant NEMA 3R rating prevents weather‑related outages, delivering lower lifecycle costs and improved uptime for panel infrastructure projects.
