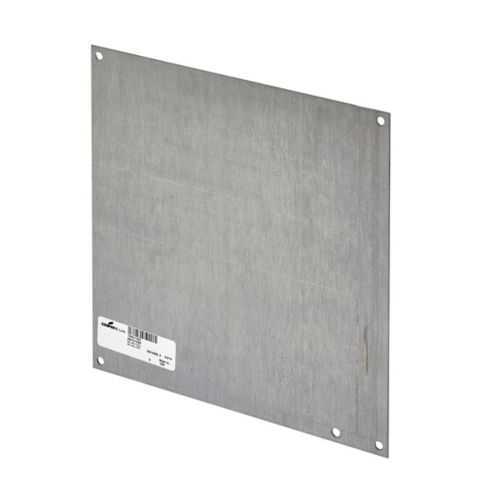

Eaton N2012P Panel Enclosures and Accessories - NEMA 1
Part Number: N2012P
Quick Summary
Eaton N2012P panel enclosures provide robust protection for electrical controls in industrial applications. Designers often battle cramped layouts, dust ingress, and strict access and maintenance requirements. This enclosure achieves UL Listed, NEMA 1 protection, and CSA C22.2 compliance, reinforcing safety and regulatory readiness. The ANSI 61 gray painted steel body offers durable indoor service, while its Type 1 small form factor and optional locking panel support flexible installation and security. With compatibility to a wide range of B-Line accessories, it delivers efficient panel housing that reduces installation time, minimizes rework, and lowers lifecycle costs for control cabinets and instrument panels.
Product Information
Extended Description
N2012P Eaton: Eaton B-Line series panel enclosure, NEMA 1, ANSI 61 gray painted, Used to house electrical controls and instruments, Steel, Type 1 small, Optional, Panel enclosures, Type 1 locking enclosure with perforated panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
N2012P
UPC
782051100884
Product Length/Depth
10.25 in
Product Height
18.25 in
Product Width
0.063 in
Product Weight
3.8 lb
Certifications
UL Listed NEMA CSA C22.2.
Application
Used to house electrical controls and instruments
Material
Steel
Finish color
ANSI 61 gray painted
Product Category
Panel enclosures
Type
Type 1 small
Degree of protection
NEMA 1
UL Listed, NEMA 1 protection, and CSA C22.2 certifications are foundational to the N2012P’s compliance narrative. This trio reduces procurement risk for regulated environments and simplifies audit processes during commissioning. In practice, you gain confidence that your enclosure will meet industry standards while keeping installation time predictable in high-demand manufacturing lines and automation cabinets. ANSI 61 gray painted steel delivers durable indoor service with a professional finish that guards against handling wear and minor corrosion. The steel construction also supports long service life in typical factory environments, minimizing maintenance interruptions. Together, these characteristics translate to fewer replacements and lower lifecycle costs for control panels and instrument housings. Product dimensions and weight support practical layout and installation planning. At 10.25 in depth and 18.25 in height, with a weight of 3.8 lb, the N2012P fits compact spaces without overburdening overhead or wall-mounted installations. Knowing exact size and mass helps engineers avoid clearance issues and streamlines rack or cabinet integration. Type 1 small, locking enclosure with perforated panel adds security and ventilation where the controls demand access control and airflow. The locking option reduces tampering risk in shared facilities, while the perforated panel supports airflow and component mounting flexibility. This combination is ideal for inline control panels and instrument housings in automated lines with frequent service. Compatibility with a broad range of panel accessories is a practical advantage. Eaton’s B-Line accessories catalog provides extensions, panels, and mounting hardware that snap into the N2012P footprint, accelerating assembly and reducing field modification. The result is faster commissioning, fewer reworks, and improved configurability for evolving control architectures in food and beverage, water treatment, and manufacturing plants. This approach also supports scalable cabinet strategies as line upgrades occur.
Get a Quick Quote for a Eaton N2012P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton N2012P?
Enquire Now
FAQs
The N2012P is designed to be compatible with Eaton B-Line panel accessories, aligning with standard mounting patterns and a perforated panel that accommodates mounting rails and diagram cards. This compatibility minimizes field changes, accelerates wiring and labeling tasks, and supports scalable cabinet configurations for evolving control architectures.
N2012P carries UL Listed recognition, a NEMA 1 enclosure rating, and CSA C22.2 certification. These approvals signal safety, electrical compliance, and suitability for indoor environments. They simplify procurement, expedite regulatory reviews, and reduce risk during plant commissioning and ongoing audits.
Yes. N2012P is designed for indoor dry locations with a NEMA 1 rating and ANSI 61 gray finish. It supports standard panel mounting and offers a Type 1 small footprint with a locking option, enabling secure wall- or cabinet-mounted installations in automation and control rooms.
N2012P provides a depth of 10.25 in, a height of 18.25 in, and a width listed as 0.063 in, with a weight of 3.8 lb. These precise figures aid space planning, clearance checks, and load calculations when integrating the enclosure into existing control cabinets or wall-mounted panels.
Official specifications are available from Eaton: the N2012P data sheet on Eaton’s site and the Accessories section of the Enclosure Catalog. For quick reference, consult the Eaton Specification Sheet – N2012P and the Enclosure Accessories catalog section.
