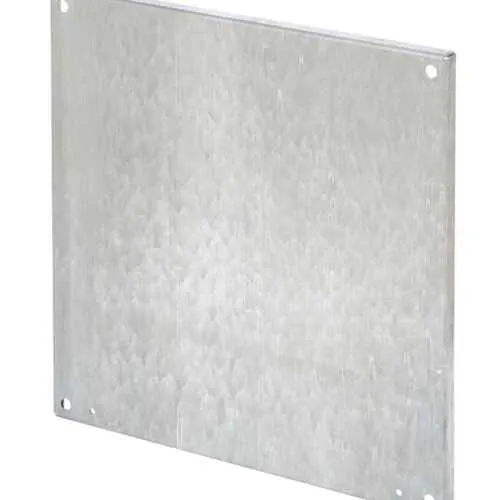

Eaton N2424P Panel Enclosures - NEMA 3R
Part Number: N2424P
Quick Summary
Eaton N2424P panel enclosure provides robust protection for electrical panels in outdoor and harsh indoor environments. This wall‑mounted solution addresses weather ingress, corrosion, and maintenance downtime by combining galvanized steel construction with a Type 3R large continuous hinge cover. UL Listed and CSA C22.2 certified, along with the NEMA 3R rating, provide code-compliance and reliable performance across seasonal exposure to rain, sleet, and ice. The ANSI 61 gray painted finish enhances visibility and corrosion resistance, while compatibility with Eaton B‑Line accessories enables scalable panel enclosures for growing facilities. For engineers and procurement teams, the N2424P offers durability, ease of installation, and long-term cost reduction through fewer service interruptions.
Product Information
Extended Description
N2424P Eaton: Eaton B-Line series panel enclosure, NEMA 3R, ANSI 61 gray painted, Protects against rain, sleet and ice formation, Galvanized steel, Wall mounting, Panel enclosures, Type 3r large continuous hinge cover, 24" X 24" panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
N2424P
UPC
782051377057
Product Length/Depth
20.875 in
Product Height
20.87 in
Product Width
0.75 in
Product Weight
13.668 lb
Certifications
UL Listed NEMA CSA C22.2.
Application
Protects against rain, sleet and ice formation
Material
Galvanized steel
Finish color
ANSI 61 gray painted
Mounting method
Wall
Product Category
Panel enclosures
Type
Type 3r large continuous hinge cover
Degree of protection
NEMA 3R
Weather-rated design delivers reliable protection against rain, sleet, and ice, reducing unplanned downtime in outdoor and damp indoor installations. This weather resistance translates into fewer field service calls and longer service life for connected equipment. Galvanized steel construction provides robust corrosion resistance and structural integrity in harsh industrial environments, translating into lower maintenance costs and delayed replacement cycles. The Type 3R large continuous hinge cover simplifies routine access while maintaining enclosure integrity, enabling faster maintenance and safer inspections in tight or high-traffic areas. ANSI 61 gray painted finish enhances visibility and resistance to UV and weathering, supporting consistent identification and reduced cosmetic wear in exposed locations. Wall mounting supports space-efficient layouts and straightforward retrofits, while remaining compatible with Eaton B-Line accessories for scalable, code-compliant installations. UL Listed, NEMA 3R, and CSA C22.2 certifications give confidence in electrical safety, regulatory compliance, and long-term reliability across facilities.
Get a Quick Quote for a Eaton N2424P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton N2424P?
Enquire Now
FAQs
N2424P is designed for wall mounting, so verify a solid wall surface and adequate access around the hinge area. Ensure proper clearance for service and cable entry, use compatible Eaton mounting hardware, and consider the enclosure’s depth (20.875 in) and height (20.87 in) to fit the allotted space. Plan for drainage and ventilation where applicable to maintain long-term performance.
N2424P carries UL listing and a NEMA 3R rating, confirming suitability for rain, sleet, ice, and outdoor exposure. CSA C22.2 certification further reinforces compliance with Canadian and other applicable standards. These certifications support safe operation, regulatory acceptance, and reduced risk during inspections or audits.
Yes. The enclosure is rated NEMA 3R and constructed from galvanized steel with an ANSI 61 gray painted finish, delivering weather resistance that protects internal panels from rain, sleet, and ice formation while maintaining service continuity and equipment reliability in harsh climates.
N2424P is part of the Eaton B-Line series and is designed to work with related enclosure accessories. For expanded functionality, consult the Accessories section of Eaton’s enclosure catalog and the enclosure accessories catalog section PDF to select compatible mounting plates, seals, gaskets, and mounting hardware that fit the 24x24 in panel footprint.
The N2424P enclosure reduces maintenance and replacement costs by offering durable weather resistance, an easy-to-access hinge design, and compatibility with scalable B-Line accessories. This leads to fewer unplanned outages, lower field service frequency, and longer equipment lifespan, delivering a favorable total cost of ownership over the system’s lifecycle.
