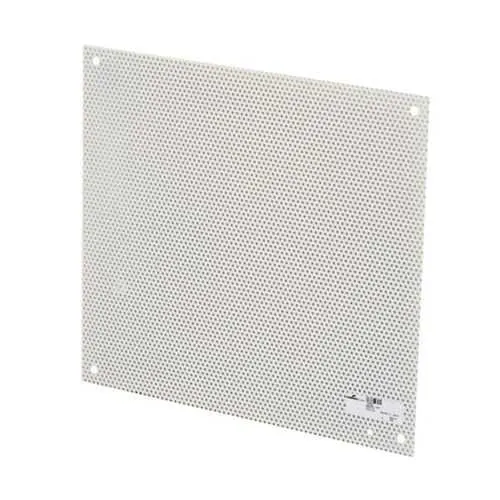

Eaton N86PP Small enclosure flat perforated panel - NEMA 1
Part Number: N86PP
Quick Summary
The Eaton N86PP is a compact NEMA 1 steel enclosure designed to mount lightweight components in control panels. When space is tight, engineers face fitment, wiring access, and corrosion risks that complicate deployment; this enclosure addresses those challenges with a rigid, white powder-coated shell. It carries UL Listed, CSA C22.2, and NEMA 1 certifications, providing clear compliance for indoor commercial and light industrial environments. As a member of the B-Line series, the N86PP helps standardize enclosure selection across projects, reducing procurement complexity while supporting efficient installation and predictable total cost. This makes it a practical choice for panel accessories and lightweight components in standardized control architectures.
Product Information
Extended Description
N86PP Eaton: Eaton B-Line series panels and panel accessories, NEMA 1, White powder coated, Steel, Small enclosure flat perforated panel
Product Name
Eaton B-Line series panels and panel accessories
Catalog Number
N86PP
UPC
782051445756
Product Length/Depth
4.25 in
Product Height
6.25 in
Product Width
0.053 in
Product Weight
0.42 lb
Certifications
NEMA CSA C22.2. UL Listed
Application
Enclosure used to mount light-weight components
Material
Steel
Finish color
White powder coated
Product Category
Panels & panel accessories
Type
Small enclosure flat perforated panel
Degree of protection
NEMA 1
Feature steel construction with a white powder-coated finish. This combination delivers corrosion resistance and a durable surface that withstands regular maintenance in indoor environments, enabling longer service life for light-weight components mounted in panels and cabinets. The business impact is lower replacement costs and reduced maintenance downtime, while the application focus remains on reliable, ready-to-install enclosures for electrical and control panels. Feature compact dimensions and modest weight. A depth of 4.25 in and height of 6.25 in, with a nominal 0.053 in width and 0.42 lb weight, translates to easier handling, reduced shipping costs, and lower overall cabinet weight. This supports faster installation and simplified on-site logistics for instrumentation and small-panel projects. Feature NEMA 1 protection with UL Listed and CSA C22.2 certifications. This ensures indoor, non-hazardous environment compliance, easing engineering sign-off and QA checks for control panels in manufacturing and facility automation. The business impact includes streamlined regulatory approvals and lower risk exposure when integrating panel accessories into standard-bore or modular enclosures. Feature compatibility with Eaton B-Line series panels and accessories. Standardized fitment reduces part variety, accelerates procurement, and simplifies stocking for maintenance teams. The application advantage is rapid retrofits and consistent performance across project sites, with fewer compatibility surprises. Feature perforated panel design enables straightforward mounting and wire routing. This supports clean internal layouts, improved airflow, and inspection access, translating to faster commissioning and easier future upgrades. Feature white powder coat finish simplifies cleaning and maintenance. The coating resists fingerprints and grime, extending cleanability in non-hazard indoor spaces and preserving aesthetics for customer-facing installations. The business impact includes reduced downtime during routine maintenance and a professional, uniform appearance across enclosures in a facility.
Get a Quick Quote for a Eaton N86PP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton N86PP?
Enquire Now
FAQs
The N86PP is designed as part of the Eaton B-Line family, ensuring seamless compatibility with B-Line panels and accessory components for lightweight enclosure configurations. It simplifies mounting, reduces part variability, and speeds up project timelines.
Dimensions are 4.25 inches in depth and 6.25 inches in height, with a width of 0.053 inches and a weight of approximately 0.42 pounds. These compact metrics support easy handling and space-conscious installations in instrument and control panels.
Yes, the N86PP is intended for indoor, non-hazardous environments. It carries NEMA 1 protection with UL Listed and CSA C22.2 certifications, aligning with common industry compliance requirements for light-duty enclosures.
Ideal for mounting lightweight components in control panels, machine instrument enclosures, and panel accessory configurations within light-industrial or commercial facilities, where a compact, durable enclosure is needed.
The white powder-coated steel finish resists grime and corrosion, simplifying cleaning and reducing maintenance downtime. Its standardized B-Line compatibility also lowers inventory costs and accelerates installation, contributing to a faster return on investment in projects requiring repeated use of similar enclosures.
