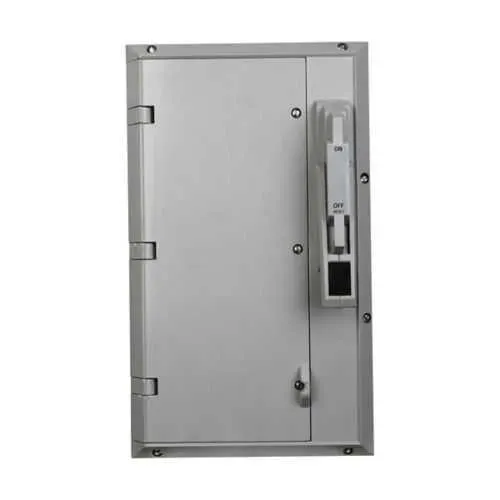

Eaton NCB1024F Circuit Breaker Enclosure - NEMA 3 4X 12
Part Number: NCB1024F
Quick Summary
The Eaton NCB1024F circuit breaker enclosure provides rugged protection for low-voltage panel installations in industrial environments. In many facilities, harsh conditions, space constraints, and corrosion threaten uptime and safety. This enclosure meets NEC/CEC requirements and carries NEMA ratings 3, 4X, and 12, plus an ordinary/non-hazardous location classification, helping you stay compliant. The Krydon fiberglass-reinforced polyester material delivers durability without excessive weight, while its hinged, screw-and-gasket cover enables quick access and reliable sealing. By matching Eaton's NCB components to this enclosure, engineers can streamline procurement, reduce field wiring errors, and accelerate maintenance cycles, delivering predictable performance and lower total cost of ownership.
Product Information
Extended Description
NCB1024F Eaton: Eaton Crouse-Hinds series NCB circuit breaker enclosure, 110 through 225A, Without circuit breaker, Hinged, screw and gasket cover construction, Krydon fiberglass-reinforced polyester
Product Name
Eaton Crouse-Hinds series NCB circuit breaker enclosure
Catalog Number
NCB1024F
UPC
782274092546
Product Length/Depth
11.41 in
Product Height
25.41 in
Product Width
8.72 in
Product Weight
37.19 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4X 12
Enclosure
Without circuit breaker
Amperage Rating
110 through 225 A
Enclosure cover construction
Hinged, screw and gasket
Enclosure material
Krydon fiberglass-reinforced polyester
NCB Series Non-metallic Circuit Breakers catalog page
IF 1001 - Bonding and Grounding
Eaton Specification Sheet - NCB1024F
Feature: Krydon fiberglass-reinforced polyester enclosure material provides corrosion resistance and extended service life. Business Impact: Reduces maintenance costs and downtime in harsh environments while keeping weight manageable for on-site handling. Application: Ideal for non-hazardous industrial locations where washdown and chemical exposure are concerns. Feature: Enclosure designed for 110–225 A amperage rating. Business Impact: Supports mid-to-high distribution loads with scalable protection, improving panel reliability and safety margins. Application: Suitable for industrial distribution panels and motor control centers. Feature: NEMA ratings 3, 4X, and 12. Business Impact: Delivers weather, dust, and corrosion protection for indoor and outdoor installations, ensuring compliant performance. Application: Outdoor enclosures or washdown areas in manufacturing facilities. Feature: Hinged, screw and gasket cover construction. Business Impact: Enables fast, tool-friendly access and reliable sealing to prevent ingress, reducing maintenance time by minutes per event. Application: Routine inspections and component changes with minimal downtime. Feature: Enclosure ships without circuit breaker. Business Impact: Provides buying flexibility to integrate preferred NCB breakers and tailor protection to exact load profiles, improving total cost of ownership. Application: System integrators and panel builders selecting CBs for customized solutions. Feature: Dimensions and weight support space planning and installation efficiency. Business Impact: Facilitates accurate cabinet fitment, reduces field rework, and streamlines procurement. Application: Commissioning in compact electrical rooms and retrofit projects.
Get a Quick Quote for a Eaton NCB1024F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NCB1024F?
Enquire Now
FAQs
Yes. The NCB1024F is designed to house Eaton Crouse-Hinds NCB circuit breakers and ships without a breaker, allowing you to select the exact CB model for your load. Its dimensions and mounting provisions align with standard NCB components, simplifying procurement and reducing field integration risk.
The enclosure carries NEC/CEC standards and NEMA ratings of 3, 4X, and 12, indicating protection for ordinary/non-hazardous locations against weather, corrosion, and dust. It is intended for ordinary locations and supports safe integration into industrial electrical distributions with compliance alignment.
The enclosure measures 11.41 inches in depth, 25.41 inches in height, and 8.72 inches in width, with a weight of 37.19 pounds. These dimensions facilitate planning in compact electrical rooms and help prevent fitment issues during retrofit or new builds.
Best for non-hazardous industrial panel distributions demanding reliable protection, especially where space is constrained. Its NEMA 3/4X/12 ratings and Krydon polyester construction make it suitable for indoor applications exposed to moisture or dust, while allowing easy integration with NCB series breakers.
Plan for hinge-access, gasket sealing, and compatibility with 110–225 A CBs. Ensure a non-hazardous location, verify mounting dimensions, and select matching NCB breakers. The gasketed hinged cover supports quick inspections, while the non-metallic Krydon body reduces corrosion risk in challenging environments.
