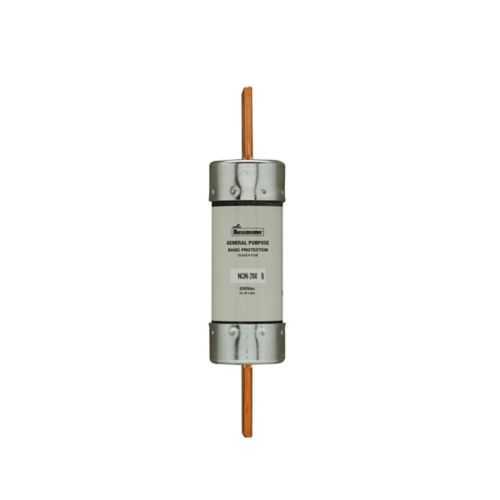

Eaton NON-200 Fuse - 200 A, 10 kAIC at 250V, CE Marked
Part Number: NON-200
Quick Summary
The Eaton NON-200 fuse is a general-purpose, non-current-limiting protection device designed for industrial control panels and electrical enclosures. In practice, engineers face nuisance trips or undersized protection that disrupts production; this fuse addresses those challenges with a robust 200 A rating and a clearly defined interrupt capability. It carries CE marking and aligns with RoHS workflows, supporting EU installations and environmental compliance. By pairing a non-current-limiting design with a reliable, one-time fuse format, it offers predictable protection and straightforward maintenance, delivering measurable cost savings and streamlined panel performace in industrial environments. This combination supports efficient procurement and consistent protection across Bussmann-series installations.
Product Information
Extended Description
NON-200 Eaton: Eaton Bussmann Series Class K5 fuse, NON, general purpose, non-current-limiting fuses, 200 A, one-time fuse, interrupting rating of 10 kA at 250 Vac
Product Name
Eaton Bussmann series NON fuse
Catalog Number
NON-200
UPC
051712101721
Product Length/Depth
7.13 in
Product Height
1.56 in
Product Width
1.56 in
Product Weight
0.75 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
200 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
250 V
Packaging type
Standard
Class
Class H
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Non current limiting
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Class H (K) Fuses Data Sheet no. 1030
Feature → Business Impact → Application: The Class H non-current-limiting design provides dependable, straightforward protection for general-purpose circuits, reducing nuisance trips and unnecessary downtime while simplifying fuse replacement in service-heavy panels. Application: Ideal for industrial control panels and equipment enclosures where predictable protection and fast maintenance matter. Feature → Business Impact → Application: A 200 A amperage rating protects high-demand feeders and motor circuits without overfusing, limiting arc energy exposure and enabling safer startup sequences. Application: Suitable for main feeders and MCCs in manufacturing lines. Feature → Business Impact → Application: A 10 kAIC interrupt rating at 250 Vac ensures rapid fault clearance, protecting downstream equipment and minimizing collateral damage during short circuits. Application: Critical in high-current industrial machinery. Feature → Business Impact → Application: Blade end x blade end connections enable quick, plug-and-play installation with Bussmann-series fuses, reducing commissioning time and human error. Application: Ideal for new installs and retrofits in existing control panels. Feature → Business Impact → Application: CE Marking confirms compliance with European safety standards, while the “one-time fuse” format minimizes maintenance complexity and inventory, stabilizing long-term operating costs. Application: Fits regulated facilities and procurement processes seeking validated, standards-aligned components.
Get a Quick Quote for a Eaton NON-200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NON-200?
Enquire Now
FAQs
The NON-200 uses blade end x blade end connections and a Class H housing, making it straightforward to drop into compatible Bussmann-series panels. Verify that the panel enclosure supports 250 V systems and that the circuit is sized for a 200 A protection device. Ensure correct alignment with existing fuse blocks and clear labeling for maintenance.
The 200 A amperage rating defines the maximum continuous current the fuse allows before opening. The 10 kAIC interrupt rating at 250 Vac indicates the fuse can safely interrupt high fault currents up to 10 kiloamperes. The 250 V voltage rating sets the upper safe operating voltage, guiding compatibility with your control circuits and power supplies.
Yes, for general-purpose protection in motor control circuits where non-current-limiting behavior is acceptable. The 200 A rating suits medium- to high-current motor feeders, while the 10 kAIC interrupt rating provides robust fault clearance. For motor starting characteristics, confirm coordination with upstream protection to avoid nuisance tripping.
This fuse is CE Marked, indicating conformity with EU safety standards. While explicit UL/CSA listings aren’t stated in the data, CE compliance supports use in European installations. For environmental compliance, RoHS-aligned practices are supported through Eaton’s RoHS resources, aiding regulatory adherence in many regions.
Being a one-time fuse, the NON-200 requires replacement after a fault or upon confirmation of fuse operation. Benefits include reduced maintenance complexity and predictable replacement cycles, lowering unplanned downtime. Stocking one-time non-current-limiting fuses simplifies inventory and procurement while maintaining consistent protection across panel assemblies.
