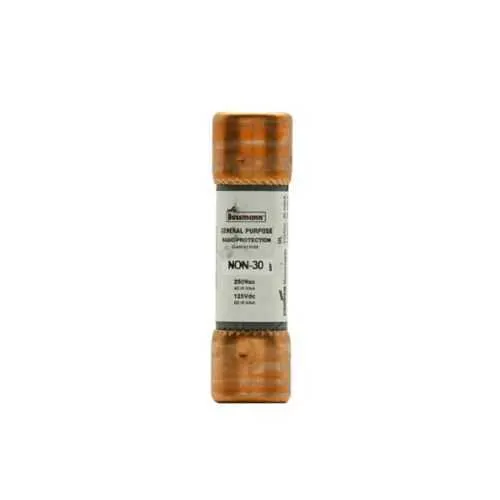

Eaton NON-30 Fuse - Class H Non-Current-Limiting 50 kAIC
Part Number: NON-30
Quick Summary
Eaton NON fuse provides reliable non-current-limiting protection for general purpose circuits in industrial control panels. Engineers often struggle with nuisance outages and incorrect fuse sizing that disrupt production. This device is CE marked and features a 50 kAIC interrupt rating at both 125 Vdc and 250 Vac, ensuring robust short-circuit suppression in mixed AC/DC systems. For procurement teams, it simplifies stocking with a standard 2 in body, ferrule-end construction, and class H design for Bussmann series protection. The combination of a 30 A rating and non-current-limiting behavior supports safe, predictable protection across a wide range of equipment while reducing warranty and downtime risks. In short, this fuse delivers dependable performance and easy installation for general purpose protection.
Product Information
Extended Description
NON-30 Eaton: Eaton Bussmann Series Class K5 fuse, NON, general purpose, non-current-limiting fuses, 30 A, one-time fuse, interrupting rating of 50 kA at 250 Vac and 50 kA at 125 Vdc
Product Name
Eaton Bussmann series NON fuse
Catalog Number
NON-30
UPC
051712101592
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.036 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
30 A
Interrupt rating
50 kAIC at 125 Vdc 50 kAIC at 250 Vac
Voltage rating
250 Vac, 125 Vdc
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non current limiting
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Class H (K) Fuses Data Sheet no. 1030
Non-current-limiting design helps avoid nuisance faulting in non-inrush service, enabling smoother startup and less unnecessary downtime. This translates to lower maintenance costs and higher line availability in control cabinets and small motor circuits. The 50 kAIC interrupt rating at 125 Vdc and 250 Vac provides robust short-circuit protection, minimizing equipment damage during faults and reducing downstream downtime. The 30 A rating with a compact 2 in length and ferrule-end connections enables easy retrofit into existing panels and straightforward wiring, improving installation speed and reliability. The Class H designation and CE compliance support safety standards and regulatory alignment across global deployments. Standard packaging of 10 units per box simplifies stocking and maintenance planning, reducing inventory overhead and facilitating quick replacements in field service. As part of the Bussmann series, this fuse integrates smoothly with typical Class H protection blocks, offering consistent protection across multiple devices and panels.
Get a Quick Quote for a Eaton NON-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NON-30?
Enquire Now
FAQs
Choose the ferrule-end variant with a 2 inch length and 0.56 inch width to fit common panel cutouts. Verify compatible fuse blocks that accept ferrule-end devices and crimp ferrules per manufacturer guidelines to ensure reliable contact. Use the standard packaging of ten units per box for predictable stocking, and follow torque specs to avoid ferrule damage or loose connections that could compromise trips.
NON-30 is a 30 A, non-current-limiting fuse with a 50 kAIC interrupt rating at 125 Vdc and 50 kAIC at 250 Vac. It carries a voltage rating of 250 Vac / 125 Vdc and uses ferrule-end terminations. The device is classified as Class H and provides non-indicating operation, which helps fit into standardized protection schemes in Bussmann series installations.
Yes. The NON-30 fuse is CE marked, indicating conformity with European safety standards. It is designed for general purpose protection in industrial controls and is compatible with Bussmann Series Class H fuses. For European installations, CE marking supports regulatory acceptance and streamlined certification processes.
By delivering non-current-limiting protection in appropriate circuits, the NON-30 minimizes nuisance tripping during startup and reduces unnecessary maintenance. Its robust 50 kAIC interrupt rating protects downstream equipment, lowering repair costs after faults. Easy installation with ferrule ends and standard packaging improves spare-part availability, reducing downtime and inventory overhead, which translates to measurable savings in plant uptime and maintenance spend.
As part of the Bussmann Series Class H fuses, NON-30 is designed for general protection in electrical protection and circuit control. It fits common Bussmann Class H fuse blocks with ferrule-end terminations and is suitable for control panels, motor control centers, and protection cabinets. Its 30 A rating and CE marking support reliable operation across industrial environments and varied voltage levels.
