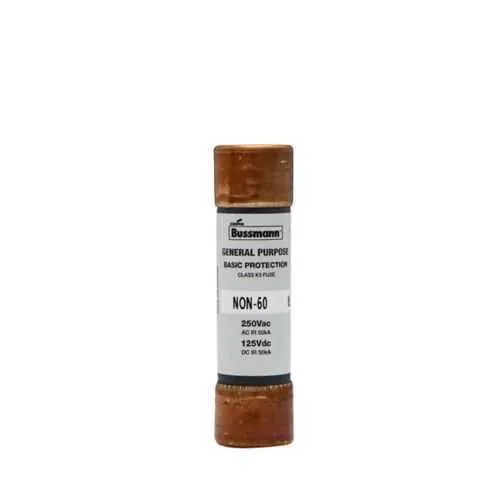

Eaton NON-60 Fuse - Class H, 60 A, 50 kAIC @125 Vdc
Part Number: NON-60
Quick Summary
The Eaton NON-60 fuse is a Class H non-current-limiting fuse designed for general-purpose protection in industrial control panels and power distribution. The product addresses a common challenge: selecting a reliable, easy-to-source device that won’t trip during normal operation while providing predictable interruption when faults occur. This fuse is CE marked and built to Class H standards, ensuring compatibility with common Bussmann series assemblies and regional requirements. It supports 60 A circuits with interruption ratings of 50 kAIC at 125 Vdc and 10 kAIC at 250 Vac, making it suitable for mixed voltages in machinery and process equipment. With packaging of ten units and ferrule-end connections, stocking, installation, and maintenance are streamlined for panel builders and integrators.
Product Information
Extended Description
NON-60 Eaton: Eaton Bussmann Series Class K5 fuse, NON, general purpose, non-current-limiting fuses, 60 A, one-time fuse, interrupting rating of 50 kA at 250 Vac and 50 kA at 125 Vdc
Product Name
Eaton Bussmann series NON fuse
Catalog Number
NON-60
UPC
051712101646
Product Length/Depth
3 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.099 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
10 kAIC at 250 Vac 50 kAIC at 125 Vdc
Voltage rating
250 Vac, 125 Vdc
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non current limiting
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Class H (K) Fuses Data Sheet no. 1030
Feature: Non-current-limiting design provides protection without rapid current restriction. Business impact: reduces nuisance trips during startup and normal operation, boosting line uptime. Application: ideal for general-purpose circuits in industrial control panels and power distribution blocks. Feature: Class H construction delivers reliable interruption at higher currents. Business impact: enhances fault isolation, reducing equipment damage and maintenance costs. Application: suitable for larger control circuits and machinery where robust protection is essential. Feature: 60 A rating with two interrupt ratings (10 kAIC at 250 Vac and 50 kAIC at 125 Vdc). Business impact: offers clear protection margins across AC and DC domains, enabling safer operation of mixed-voltage equipment. Application: protects motors, drives, and control circuits in manufacturing cells. Feature: Ferrule end x ferrule end connection with a compact 3 in length and 0.81 in width/height. Business impact: enables quick replacement, reliable wiring, and efficient use of panel space. Application: retrofits in existing Bussmann series installations and new panel assemblies. Feature: CE marking, standard packaging of ten fuses per order, and RoHS-enabled information access. Business impact: supports regulatory compliance and streamlined procurement within global manufacturing environments. Application: suitable for global deployment across equipment and panels in diverse industries.
Get a Quick Quote for a Eaton NON-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NON-60?
Enquire Now
FAQs
The NON-60 is rated for 60 A with interrupt ratings of 50 kAIC at 125 Vdc and 10 kAIC at 250 Vac, making it suitable for high-current general-purpose protection in mixed-volt systems.
Yes. The fuse features ferrule end x ferrule end connections and a compact form factor (3 in length, 0.81 in width), designed for straightforward replacement in standard Bussmann series panels.
Ideal for general-purpose protection in industrial control panels, power distribution blocks, and motor control circuits where reliable fault isolation is required without fast-current limiting.
The NON-60 is CE marked and built to Class H specifications, aligning with European regulatory expectations and common Bussmann series compatibilities. It is also RoHS-informationally accessible via Eaton’s compliance tools.
Plan for a standard packaging quantity of ten units, Ferrule-end wiring, and a 3 in body length to fit typical panel spaces. Refer to the Bussmann Series Class H data sheet for mounting guidelines and compatibility with control panels.
