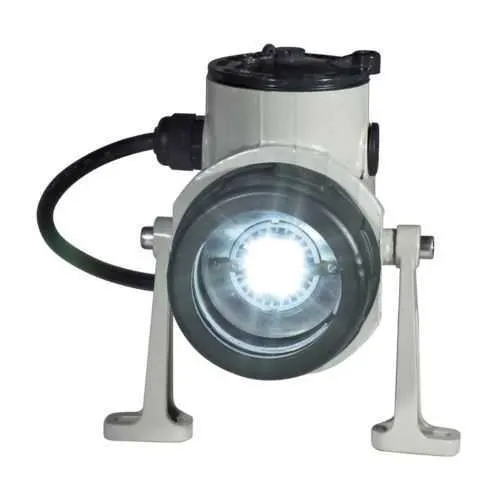

Eaton NOR000005140031 KFL LED Tank Light - IP66/IECEx/ATEX
Part Number: NOR000005140031
Quick Summary
Eaton NOR000005140031 KFL LED tank light provides rugged, explosion-safe illumination for hazardous locations in tanks and processing lines. Maintenance teams wrestle with short lamp life, corrosion, and ingress that drive downtime and replacement costs. IECEx/ATEX compliant with Zone 1/2 and Zone 21/22 ratings and IP66 protection, it meets stringent global hazardous-area requirements. Operated from 12/24 Vdc at 10W, it pairs a borosilicate glass lens with copper-free aluminum housing for durability in demanding environments. With a GU5.3 socket and 2 x M25 cable glands, installation is straightforward even in tight spaces, reducing commissioning time and enabling reliable, long-term operation.
Product Information
Extended Description
NOR000005140031 Eaton: Eaton Crouse-Hinds series CEAG KFL LED tank light, Borosilicate glass lens, Copper-free aluminum, GU5.3 lamp socket, 2 x M25 metal thread cable glands, 1 x M25 threaded plug, KFL 7 LED, 12/24 Vdc, 10W
Product Name
Eaton's Crouse-Hinds series CEAG KFL LED tank light
Catalog Number
NOR000005140031
EAN
8435156927512
Product Length/Depth
124 mm
Product Height
172 mm
Product Width
180 mm
Product Weight
3 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 22 Zone 21 Zone 2 Zone 1
Ingress protection (IP) ratings
IP66
Wattage
10W
Voltage rating
12/24 Vdc
Trade size
2 x M25 metal thread cable glands, 1 x M25 threaded plug
Material
Copper-free aluminum
Lens material
Borosilicate glass
Special features
GU5.3 lamp socket
Type
KFL 7 LED
Crouse-Hinds series CEAG KFL LED Task and Tank Light catalog page
EC Type Examination Certificate - KFL LED
EC Type Examination Certificate - KFL LED
EC Type Examination Certificate - KFL LED
Operating Instructions - KFL LED Task and Tank Light
KFL LED Task and Tank Light photometric files
IP66 protection and IECEx/ATEX zone certifications ensure safe operation in harsh environments, reducing risk and downtime. The 10W LED at 12/24 Vdc delivers energy efficiency and cooler operation, lowering operating costs while maintaining brightness. Copper-free aluminum body and borosilicate glass lens offer robust corrosion resistance and chemical durability, extending service life in tanks and process enclosures. The GU5.3 socket enables quick replacement and compatibility with common LED drivers, while the dual M25 gland configuration simplifies sealed installations in restricted spaces. The unit’s 3 kg weight supports flexible mounting options and safer handling during retrofits and maintenance. Access to installation instructions and photometric data supports verified performance and faster commissioning.
Get a Quick Quote for a Eaton NOR000005140031
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NOR000005140031?
Enquire Now
FAQs
Installers should use the two M25 cable glands and single M25 plug to maintain a sealed, IP66-rated enclosure. The unit supports 12/24 Vdc operation and utilises a GU5.3 socket for LED modules. Ensure correct orientation, tight gland seals, and refer to the Operating Instructions for torque and sealing guidelines to preserve explosion-protection ratings.
The fixture operates at 12/24 Vdc with a nominal power of 10W. It features a borosilicate glass lens and copper-free aluminum housing, IP66 ingress protection, and IECEx/ATEX certification for Zones 1, 2, 21, and 22. The GU5.3 socket supports compatible LED modules, and the unit includes 2 x M25 glands plus 1 x M25 plug for sealed installation.
Yes. Designed for hazardous locations, it carries IECEx/ATEX certifications and Zone 1/2 and Zone 21/22 ratings, along with IP66 protection. Its copper-free body and borosilicate lens withstand chemical exposure and harsh environments typical of chemical plants, refineries, and offshore platforms, while maintaining reliable illumination.
The fixture is IECEx and ATEX certified, suitable for Hazardous/Classified Locations, with IP66 ingress protection. It is approved for Zones 1 and 2 (gas/dust) as well as Zones 21 and 22 (dust). These certifications ensure compliance with global regulatory requirements for hazardous-area lighting installations.
LED technology provides extended service life and reduced maintenance vs. legacy lighting, translating to lower downtime. The 10W power rating delivers energy efficiency at 12/24 Vdc, contributing to lower operating costs. Combined with durable copper-free aluminum housing and borosilicate lens, the fixture supports longer replacement intervals and a favorable total cost of ownership in demanding facilities.
