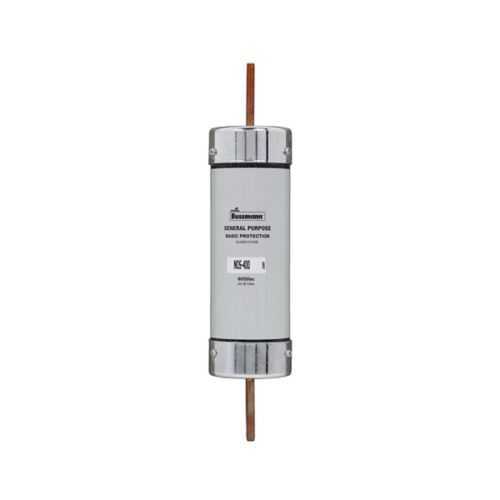

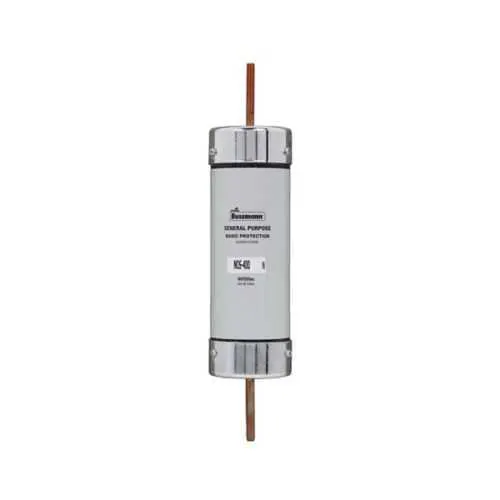

Eaton NOS-225 Fuse - 10 kAIC at 600V, Class H
Part Number: NOS-225
Quick Summary
The Eaton NOS-225 fuse provides reliable general-purpose protection for industrial power circuits and control panels. This NOS device is designed to protect equipment without current-limiting characteristics, supporting predictable fuse operation in standard applications. Operators often struggle with selecting a fuse that balances high interrupt capability with straightforward replacement—NOS-225 meets that need. Key certifications and compliance context include CE Marking and verifiable RoHS considerations through Eaton’s compliance tools, helping ensure regulatory alignment across regions. For procurement and maintenance teams, documented dimensions and weight simplify stocking and logistics, while the 225 A rating and 10 kAIC interrupt rating support robust protection for feeders and MCCs. In short, it balances reliability, ease of use, and regulatory readiness for industrial environments.
Product Information
Extended Description
NOS-225 Eaton: Eaton Bussmann Series Class K5 fuse, NOS, general purpose, non-current-limiting fuses, 225 A, one-time fuse, interrupting rating of 10 kA at 600 Vac
Product Name
Eaton Bussmann series NOS fuse
Catalog Number
NOS-225
UPC
051712312257
Product Length/Depth
11.63 in
Product Height
2.59 in
Product Width
2.59 in
Product Weight
2.82 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
225 A
Interrupt rating
10 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class H
Fuse indicator
Non-indicating
Quantity
1
Special features
Pin-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Class H (K) Fuses Data Sheet no. 1030
Feature: Class H, NOS fuse design supports general protection without current-limiting behavior → Business Impact: Predictable protection suitable for standard loads reduces nuisance trips and simplifies stocking → Application: Industrial control panels and power feeders. Feature: 225 A amperage rating with a 10 kAIC interrupt rating at 600 VAC → Business Impact: High fault withstand capacity minimizes downstream damage and downtime → Application: Motors and feeders in demanding industrial environments. Feature: 600 V voltage rating and non-indicating form factor → Business Impact: Safe operation within typical plant distributions and straightforward integration into standard fuse holders → Application: AC distribution and control circuits in panels. Feature: One-time, non-reclosable fuse with pin-indicating feature → Business Impact: Clear status indication during installation reduces field testing time and wiring errors → Application: Field installations in new builds and retrofits. Feature: Standard packaging, 1 piece, CE marked, compatible with Bussmann series components → Business Impact: Streamlined procurement, regulatory compliance, and easy cross-reference for spares → Application: Panel manufacturing and maintenance supply chains. Feature: 11.63 in length, 2.59 in width, 2.59 in height, 2.82 lb weight → Business Impact: Precise physical specs enable accurate panel layout and faster part replacement → Application: Retrofit projects and OEM panel designs.
Get a Quick Quote for a Eaton NOS-225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NOS-225?
Enquire Now
FAQs
NOS-225 is a Bussmann series Class H non-current-limiting fuse, designed to fit standard Bussmann holder assemblies. Always verify holder compatibility in the Eaton Bussmann catalog and match for the 600 V system and 225 A rating to ensure proper installation and fault clearance performance.
NOS-225 provides a 225 A amperage rating with a 10 kAIC interrupt rating at 600 VAC and a voltage rating of 600 V. These specs enable robust protection for medium to large feeders and MCCs, allowing safe interruption of short-circuit currents while minimizing downstream equipment damage.
Yes. Its Class H, non-current-limiting design paired with a 10 kAIC interrupt rating at 600 VAC makes it appropriate for motor feeders and MCC sections where predictable fuse behavior and reliable interruption are critical for equipment protection and uptime.
NOS-225 is CE marked, indicating conformity with European safety standards. RoHS compliance can be verified via Eaton’s RoHS tools and catalogs, supporting regulatory alignment for global deployments and eco-friendly material usage in line with regional requirements.
As a one-time NOS fuse, NOS-225 reduces maintenance intervals by delivering reliable protection without back-up current-limiting behavior. Its clear 225 A rating and pin-indicating features speed installation checks, lowering field downtime and improving overall panel uptime and return on investment.
