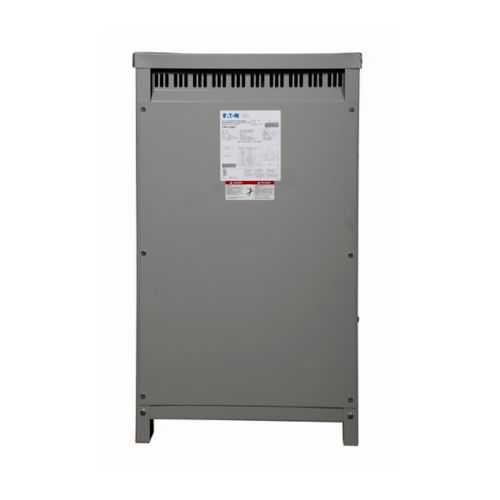

Eaton NT48M11S15EE Transformer - NEMA TP-1 Compliant
Part Number: NT48M11S15EE
Quick Summary
The Eaton NT48M11S15EE transformer provides nonlinear K-Factor power conditioning for low-voltage distribution in industrial applications. In many facilities, unstable voltages and heat buildup threaten uptime and increase maintenance costs. UL Listed, NEMA TP-1 compliant, and featuring electrostatic shielding with a 150°C rise, it delivers safer operation and regulatory confidence. Designed for robust integration with a 480 V primary and 120/240 V secondary, it also supports energy efficiency and ease of procurement, helping control panels and automation networks meet performance targets while reducing lifecycle cost.
Product Information
Extended Description
NT48M11S15EE Eaton: Eaton K-Factor nonlinear ventilated transformer, KT-13 (1-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 120/240V, 150°C rise, 15 kVA, EE
Product Name
Eaton K-Factor nonlinear ventilated transformer
Catalog Number
NT48M11S15EE
UPC
786680071430
Product Length/Depth
18.39 in
Product Height
31.3 in
Product Width
22.89 in
Product Weight
248 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEMA TP-1 Compliant
Certifications
UL Listed
Catalog Notes
NEMA TP-1 efficient
Coil material
Aluminum
Frame
816
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Frequency rating
60 Hz
Volt ampere rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Temperature rise
150 °C rise
Special features
Electrostatically shielded
Weathershield
WS11
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - NT48M11S15EE
Feature → Business Impact → Application: The K-Factor nonlinear ventilated design mitigates harmonic distortion, improving power quality and extending equipment life in manufacturing lines and data centers. Business impact: reduced downtime and maintenance costs; Application: industrial automation panels requiring clean power for sensitive drives. Feature → Business Impact → Application: 15 kVA single-phase rating with 480 V input and 120/240 V output enables compact control schemes without oversized transformers, delivering cost-effective power conditioning for machine control systems. Feature → Business Impact → Application: 2 at +2.5% and 4 at -2.5% taps allow precise voltage regulation under load fluctuations, supporting stable actuators and sensors in dynamic production environments. Feature → Business Impact → Application: Aluminum coil and frame 816 construction offer reliable thermal performance and mounting versatility in tight spaces, enabling fast installation in rugged plant rooms. Feature → Business Impact → Application: UL Listed, NEMA TP-1 compliant with NEMA TP-1 efficient notes and electrostatic shielding reduce regulatory friction and energy waste, improving ROI for mixed-load facilities. Feature → Business Impact → Application: Weathershield WS11 option extends outdoor or harsh-environment use, increasing flexibility in outdoor enclosures and remote installations, aligning with modern industrial ecosystems.
Get a Quick Quote for a Eaton NT48M11S15EE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NT48M11S15EE?
Enquire Now
FAQs
Install by mounting the unit in a suitable enclosure or panel, connect the 480 V primary to the supplied 3-phase or single-phase connections per code, and wire the 120/240 V secondary outputs to the downstream loads. Use the two +2.5% and four -2.5% taps to fine-tune voltage under load, follow insulation and clearance guidelines, and consider the WS11 weather shield for outdoor use.
Key specs include 15 kVA, 60 Hz operation, 480 V primary, 120/240 V secondary, single-phase configuration, and aluminum coil with frame 816. The 150°C rise indicates robust thermal tolerance under full load, enabling stable operation in demanding environments and ensuring reliability in continuous duty within automation systems.
Yes. UL Listed certification confirms safety and conformity, while NEMA TP-1 compliance and efficiency labeling support code-driven panel design. The optional WS11 weather shield expands outdoor applicability, making it suitable for harsh environments where rugged transformer performance and dependable power conditioning are required.
The transformer is UL Listed and NEMA TP-1 compliant, with NEMA TP-1 efficiency notes. These certifications help ensure safety, reliability, and energy-performance compliance for industrial power distribution and control systems, simplifying procurement approvals, audits, and installation in regulated environments.
With a one-year installation-based warranty (or 18 months from shipment) and robust construction, maintenance is typically minimal. Benefits include improved power quality, reduced downtime, energy efficiency, and a compact footprint for easier integration, all of which contribute to lower total cost of ownership in automation and manufacturing facilities.
