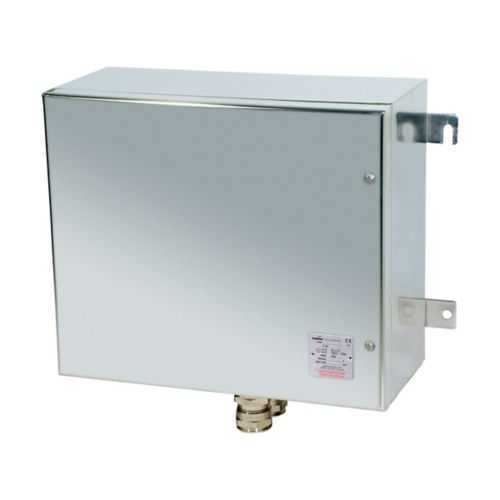

Eaton NXTS110561200 N-TB Enclosure - IP66, 4X, 690V
Part Number: NXTS110561200
Quick Summary
The Eaton NXTS110561200 N-TB enclosure protects high‑voltage electrical gear in hazardous locations. Owners often struggle with corrosion, wash-down exposure, and regulatory burden; this enclosure mitigates those risks with 316L stainless steel and proven protection. It carries IECEx/ATEX and NEC/CEC certifications, plus IP66 and NEMA 4X ratings, ensuring compliance across international standards. For engineering and procurement teams, the combination of corrosion resistance, robust enclosure performance, and a hinged access design translates to lower maintenance, faster installation, and reduced total cost of ownership. In industrial automation, it supports large control circuits and demanding environments, delivering reliable protection with scalable installation options.
Product Information
Extended Description
NXTS110561200 Eaton: Eaton Crouse-Hinds series N-TB enclosure, 400A, 105" x 61" x 20" enclosure size, 666 mm horizontal fixing center, 559 mm vertical fixing center, With hinge, 316L stainless steel, 0 gland plates, 690 Vac/Vdc
Product Name
Eaton Crouse-Hinds series N-TB enclosure
Catalog Number
NXTS110561200
EAN
4251958137058
Product Length/Depth
610 mm
Product Height
1050 mm
Product Width
205 mm
Product Weight
34.93 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
316L stainless steel
Enclosure size
105" x 61" x 20"
Number of gland plates
0
Hinge
With hinge
Crouse-Hinds series Stainless Steel Enclosures Solutions brochure
Crouse-Hinds series N-TB Stainless Steel or Sheet Steel Enclosures catalog page
Feature → Business Impact → Application: 316L stainless steel construction delivers superior corrosion resistance in coastal, chemical, and wash-down environments, extending service life and reducing replacement costs in offshore platforms and petrochemical plants. Application: offshore, chemical processing, and heavy industrial automation. Feature → Business Impact → Application: 400 A rating with 690 Vac/Vdc capability enables high‑current control within a single enclosure, simplifying panel design and reducing the footprint for motor control and power distribution in a crowded plant floor. Application: large control circuits and power distribution in manufacturing lines. Feature → Business Impact → Application: With hinge access and a 105" x 61" x 20" footprint, installation and maintenance become faster while preserving cable integrity; 0 gland plates allow field‑customized glanding, reducing pre‑engineering time. Application: flexible, field‑configured gland entries in hazardous locations. Feature → Business Impact → Application: IP66 and NEMA 4X ratings provide wash-down and weather resistance, supporting outdoor or harsh indoor installations and lowering protection‑related downtime. Application: outdoor enclosures near water ingress, factory floors with heavy dust, and outdoor control rooms. Feature → Business Impact → Application: IECEx/ATEX and NEC/CEC compliance simplifies multi‑region procurement, easing regulatory documentation and speeding project approvals. Application: global rollout of hazardous-location projects, including chemical, oil & gas, and safety-critical systems.
Get a Quick Quote for a Eaton NXTS110561200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NXTS110561200?
Enquire Now
FAQs
Yes. The NXTS110561200 uses standard N‑TB enclosure design features, including fixed centers of 666 mm horizontally and 559 mm vertically, and a hinged door for easy access. Its 316L stainless steel construction and 400 A rating support high‑current applications, while the 0 gland plates allow field‑configurable gland entries. This provides straightforward integration into existing frames without requiring custom adapters.
The NXTS110561200 carries IECEx/ATEX and NEC/CEC certifications for hazardous locations, with NEC hazardous ratings of Class I, Zone 1 and Class I, Division 2. It is rated NEMA 4X and IP66, delivering robust protection against dust, wash-downs, and harsh environments, suitable for chemical plants, offshore facilities, and other demanding installations.
Best suited for chemical processing, offshore platforms, and heavy industrial automation, the NXTS110561200 supports high‑current control circuits up to 400 A and 690 Vac/Vdc. Its corrosion‑resistant 316L stainless steel construction, combined with IP66 and 4X protection, ensures reliable operation in wash-down zones, outdoor locations, and environments with corrosive exposure.
Plan for the 1050 mm height, 610 mm depth, and 205 mm width footprint, with hinge access to simplify maintenance. The enclosure offers 0 gland plates, so plan field gland entries to match your cable routing and sealant requirements. The horizontal and vertical fixing centers (666 mm and 559 mm) support standard mounting to compatible frame systems, enabling quicker deployment.
The 316L stainless steel construction delivers long service life in corrosive environments, reducing replacement costs and downtime. IECEx/ATEX and NEC/CEC compliance streamline multi‑region projects, while the robust IP66/NEMA 4X protection reduces wash-down and weather-related risks. Overall, this enclosure lowers total cost of ownership by decreasing maintenance frequency and accelerating regulatory approvals.
