Eaton NXTS14848162 N-TB enclosure - IP66 4X stainless steel
Part Number: NXTS14848162
Quick Summary

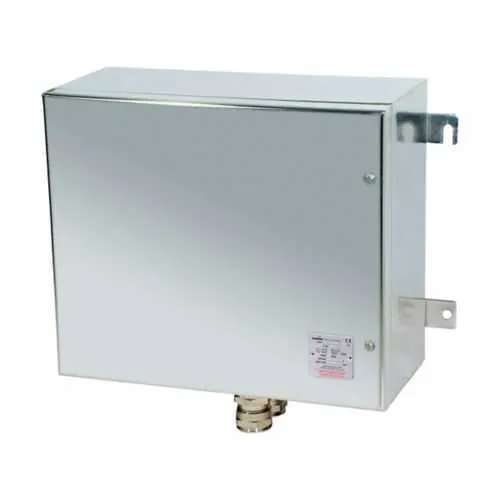

NXTS14848162 is an Eaton N-TB enclosure designed to protect electrical and control gear in harsh industrial environments. Maintenance and access challenges often drive downtime and safety risk when enclosures corrode or fail in hazardous locations. This unit carries NEC/CEC and IECEx/ATEX certifications, delivers IP66 ingress protection, and a NEMA 4X rating for reliable, compliant operation. With 316L stainless steel construction and a 48" x 48" x 16" footprint, it accommodates robust power and control assemblies while resisting corrosion. For project teams prioritizing long-term reliability and reduced maintenance costs, NXTS14848162 combines rugged protection with installation simplicity and proven compliance.
Product Information
Extended Description
NXTS14848162 Eaton: Eaton Crouse-Hinds series N-TB enclosure, 400A, 48" x 48" x 16" enclosure size, 505 mm horizontal fixing center, 327 mm vertical fixing center, With hinge, 316L stainless steel, 2 gland plates, 690 Vac/Vdc
Product Name
Eaton Crouse-Hinds series N-TB enclosure
Catalog Number
NXTS14848162
EAN
4251958137409
Product Length/Depth
480 mm
Product Height
480 mm
Product Width
160 mm
Product Weight
12.11 kg
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
316L stainless steel
Enclosure size
48" x 48" x 16"
Number of gland plates
2
Hinge
With hinge
Crouse-Hinds series Stainless Steel Enclosures Solutions brochure
Crouse-Hinds series N-TB Stainless Steel or Sheet Steel Enclosures catalog page
Feature – 316L stainless steel construction provides superior corrosion resistance, extending service life in chemical and coastal environments. Business impact – Lower maintenance costs and fewer enclosure replacements. Application – Ideal for hazardous locations where exposure to moisture and corrosive agents is common. Feature – 48" x 48" x 16" enclosure size and 2 gland plates support spacious internal layouts. Business impact – Simplifies wiring, improves airflow, and speeds panel assembly. Application – Suitable for large control cabinets and motor control centers in industrial plants. Feature – With hinge and 505 mm horizontal fixing center, 327 mm vertical fixing center, and 400A capacity. Business impact – Enables straightforward installation, stable mounting, and scalable power distribution. Application – Works well for mid- to high-current control panels in hazardous locations. Feature – IP66, NEMA 4X, and hazardous location ratings (Class I, Division 2/Zone 1). Business impact – Meets stringent safety standards, reducing regulatory risk and accelerating commissioning. Application – Certified for use in environments with dust, water ingress, and explosive atmospheres. Feature – 316L stainless steel plus rugged gasketing and gland plates support long-term reliability. Business impact – Minimizes leakage risks and supports easy maintenance, aligning with uptime targets. Application – Critical in offshore, chemical processing, and other harsh environments.
Get a Quick Quote for a Eaton NXTS14848162
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NXTS14848162?
Enquire Now
FAQs
The NXTS14848162 enclosure uses a hinged front design with a 505 mm horizontal fixing center and 327 mm vertical fixing center, plus two gland plates. This configuration supports straightforward wiring access, easy field modifications, and secure mounting in Class I, Division 2 and Zone 1 environments while maintaining IP66/NEMA 4X protection.
A 400A rating indicates the enclosure can accommodate higher-current distribution and control components. This supports larger busbars, contactors, and power distribution blocks without crowding, enhancing electrical safety, thermal management, and commissioning efficiency in demanding industrial control panels.
Yes. It is manufactured from 316L stainless steel, a corrosion-resistant material ideal for chemical plants, coastal facilities, and washdown areas. Combined with IP66 and NEMA 4X ratings, the enclosure provides robust protection against ingress and corrosion, reducing maintenance intervals.
The enclosure supports NEC/CEC and IECEx/ATEX standards, with IP66 ingress protection and a NEMA 4X rating. It is specified for Hazardous/Classified Locations, including Class I, Division 2 and Zone 1, enabling safe operation of electrical and control gear in challenging environments.
The combination of corrosion-resistant 316L stainless steel, high current capacity, and rugged protection reduces downtime and maintenance costs. Compliance with multiple safety standards accelerates project approvals, while the durable construction extends service life, delivering lower total cost of ownership in harsh industrial settings.
