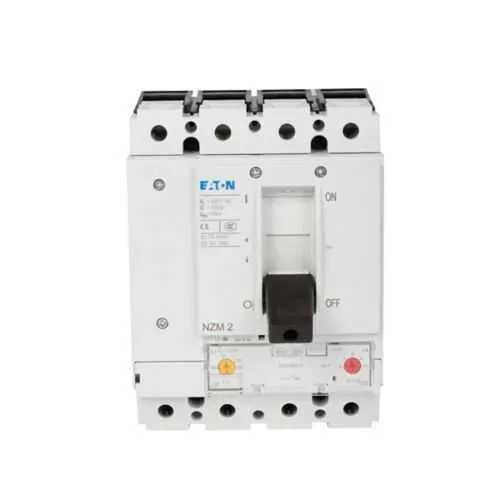

Eaton NZMH2-4-A200 MCCB - 150 kAIC Short-Circuit Rating
Part Number: NZMH2-4-A200
Quick Summary
The Eaton NZMH2-4-A200 MCCB provides reliable overcurrent protection for industrial motor and power distribution panels. In fast-paced environments, improper protection settings or difficult field adjustments can lead to unexpected outages and costly downtime. Certifications such as CE compliance, UL/CSA recognition, and industry IP ratings are commonly required—verify regionally with the manufacturer. This NZMH2 series unit aligns with the NZM2 frame and four-pole design, enabling scalable protection for motor drives and control circuits. For engineers and procurement teams, this device offers configurable protection ranges and straightforward installation, delivering safety, reliability, and a measurable reduction in maintenance overhead while supporting common MCCB applications in modern facilities.
Product Information
Extended Description
NZMH2-4-A200 Eaton: MCCB NZM, NZM2 TM and Elec. Breakers, Circuit Breaker, 160-200A OL Prot. Rng, Screw connection, front, Four-pole, 200A Perm. Current, 150 kA, 160-200A Set. Rng OL Prot., 1200-2000A Undelayed Adj. Rng., Rocker lever, motor drive optional
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMH2-4-A200
EAN
4015082658748
Product Length/Depth
5.51 in
Product Height
5.86 in
Product Width
5.86 in
Product Weight
5.17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
Contact Manufacturer
Amperage Rating
200 A
Voltage rating
690 Vac, 750 Vdc
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
NZMH2
Frame
NZM2
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Adjustment range short-circuit release
1200-2000A delayed
Setting Range Ol Protector
160-200A
Short-circuit breaking capacity
150 kAIC
Interrupt rating
85-150 kAIC
Connection
Front screw
Overload range
160-200A
Number of poles
Four-pole
Feature → Business Impact → Application: 200 A amperage rating with 690 Vac / 750 Vdc voltage rating provides robust protection for medium-size motor loads and distribution circuits, reducing nuisance trips and ensuring uptime in manufacturing lines. This translates to lower unplanned downtime and improved process reliability in machine centers and panel assemblies. Feature → Application: Adjustable overload range of 160–200 A enables precise coordination with upstream devices and downstream protections, improving selective clearance and fault isolation in complex electrical rooms. Feature → Application: Adjustable short-circuit release (1200–2000 A delayed) supports tailored protection strategies for high-inertia loads and motor starters, minimizing arc-related risks during faults. Feature → Application: Four-pole front screw connection and NZM2 frame ensure easy retrofits and consistent mounting in existing MCCBs, simplifying field installs and reducing commissioning time. Feature → Application: 150 kAIC short-circuit breaking capacity with 85–150 kAIC interrupt rating delivers high fault withstand in demanding environments, supporting compliance with utility and industrial protection standards. Feature → Application: Optional rocker lever and motor-drive accessories expand control capabilities for motor-driven equipment and automation panels. Feature → Application: Compact dimensions (approximately 5.5 in depth and width) with a 5.17 lb weight enable space-efficient installation in crowded electrical cabinets, reinforcing a lean maintenance footprint.
Get a Quick Quote for a Eaton NZMH2-4-A200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMH2-4-A200?
Enquire Now
FAQs
The NZMH2-4-A200 is designed for the NZM2 frame and uses front screw connections, simplifying retrofits into existing panels. Its four-pole construction supports standard motor-control centers, and the adjustable trip ranges align with typical plant protection schemes, reducing rework during installation.
Its 200 A rating, 690 Vac/750 Vdc permit broad motor and distribution use, combined with adjustable overload and short-circuit trip ranges. The four-pole NZM2 design, together with optional motor-drive accessories, enables coordinated protection for motors and drives while supporting compact cabinet layouts.
Overload protection is adjustable from 160 to 200 A, and short-circuit release can be set to 1200–2000 A delayed. This enables selective coordination with upstream breakers and downstream devices, improving fault isolation and reducing the risk of unnecessary trips.
Certifications should be confirmed with the manufacturer for your region. MCCBs like the NZMH2 series are commonly associated with CE markings and regional UL/CSA or other agency approvals, along with typical protection and electrical standards. Always verify current approvals before procurement.
Warranty follows Eaton policy: one year from installation or eighteen months from shipment, whichever occurs first. Regular inspection of the trip unit, tightening of front-screw connections, and validating accessory compatibility (rocker lever, motor drive) can help sustain performance and extend service life.
