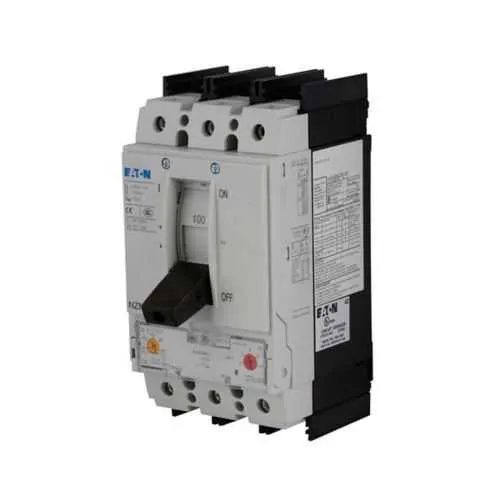

Eaton NZMH2-AF100-BT-NA Molded Case Circuit Breaker - UL Listed

Feature → Business Impact → Application: The NZMH2-AF100-BT-NA uses a three-pole NZMH2 frame with a 100 A rating and adjustable thermal, fixed magnetic trip to provide precise overcurrent protection. The impact is improved fault discrimination and reduced nuisance trips, which translates to fewer unplanned outages in manufacturing lines or data-center feeder circuits. Application-wise, it is well-suited for distribution panels and motor control centers where stable protection and quick response are critical. Feature → Business Impact → Application: It supports 690 Vac / 750 Vdc operation with a short-circuit breaking capacity up to 150 kAIC, offering robust fault handling for high-energy industrial environments and condensate-free operation in stamping presses, presses, or heavy machinery feeders. This enables safer startups and lower risk during fault conditions. Feature → Business Impact → Application: The adjustable thermal with fixed magnetic trip provides configurable protection ranges (600-1000A delayed for the short-circuit release and 100-100A for overload), enabling precise coordination with upstream breakers and downstream protection schemes. Users gain reliable selective tripping and reduced cascading trips in complex power distributions. Feature → Business Impact → Application: Front-frame clamp terminals simplify physical installation, speed up installation time, and reduce wiring complexity in new builds or retrofit projects, allowing panel shops to meet tight schedules. This makes field replacement and future upgrades straightforward across switchgear rooms and control panels. Feature → Business Impact → Application: Accessories such as rocker lever and motor drive extend versatility for control-panel builders, enabling easy manual operation and integrated motor control options within NZM2 frame assemblies. This reduces part variety, minimizes stocking needs, and supports rapid customization in industrial automation environments. Feature → Business Impact → Application: The product’s UL Listed status and documented warranty framework deliver compliance confidence and predictable service terms, helping procurement teams align with corporate risk management goals while maintaining uptime for critical processes in manufacturing, processing plants, and distribution facilities.
