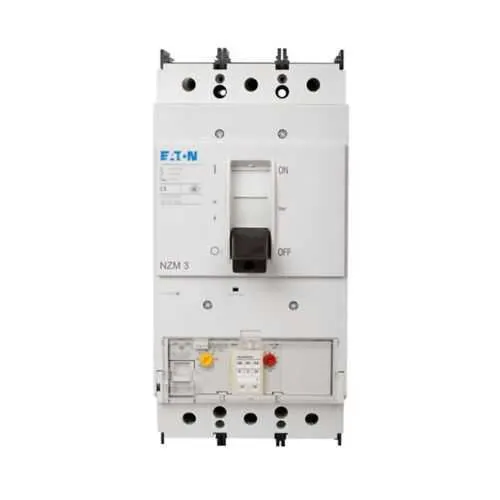

Eaton NZMH3-AE400-NA Molded Case Circuit Breaker - 100 kAIC
Part Number: NZMH3-AE400-NA
Quick Summary
NZMH3-AE400-NA molded case circuit breaker provides reliable protection for motor drives and distribution panels in industrial environments. In complex electrical systems, nuisance trips and unplanned downtime threaten productivity; this unit offers a precise thermal-magnetic trip and user-friendly front wiring to minimize outages. It supports UL/CSA listings and IEC compliance, helping you meet global safety requirements without juggling vendors. Designed for 400 A loads and 100 kAIC capacity, it delivers robust protection for motor drives and distribution circuits while simplifying procurement and maintenance through a single, compatible solution.
Product Information
Extended Description
NZMH3-AE400-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM3-frame, NZMH3, Thermal-magnetic trip, Three-pole, 400A, 100 kAIC at 480 Vac, Dist. circuit protection, motor drive, 200-400A, 800-4400A delayed, 200-400A, conforms to UL/CSA and IEC
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMH3-AE400-NA
EAN
4015082693039
Product Length/Depth
5.51 in
Product Height
6.53 in
Product Width
6.53 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Amperage Rating
400 A
Voltage rating
690 V AC
Trip Type
T268
Circuit breaker type
NZMH3
Frame
NZM3
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Adjustment range short-circuit release
800-4400A delayed
Setting Range Ol Protector
200-400A
Short-circuit breaking capacity
150 kAIC
Interrupt rating
100 kAIC at 480 Vac
Connection
Front screw
Overload range
200-400A
Number of poles
Three-pole
