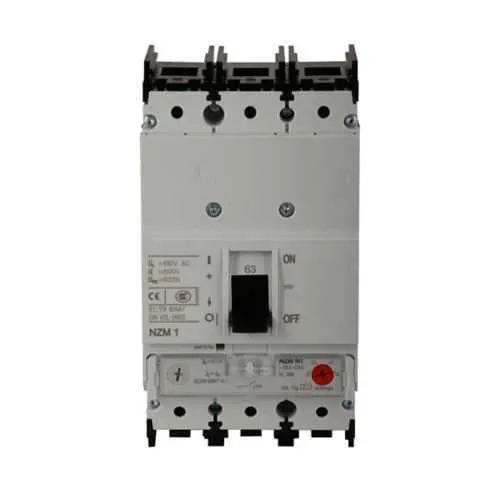

Eaton NZMN1-AF35-NA Molded Case Circuit Breaker - UL Listed
Part Number: NZMN1-AF35-NA
Quick Summary
Eaton NZMN1-AF35-NA is a complete molded case circuit breaker designed to protect distribution panels in industrial environments. Engineers often wrestle with achieving reliable overcurrent protection while keeping installation time and panel space under control. UL Listed certification confirms safety compliance; for additional certifications such as CE or IP ratings, consult Eaton to confirm suitability for your region. In addition, this device integrates NZM1 frame compatibility, front frame clamp mounting, and a rocker lever option, delivering efficiency and strong total cost-of-ownership benefits for panel builders and integrators. This combination supports faster commissioning, reduced wiring complexity, and predictable coordination with Eaton accessories like the rocker lever, making it a practical choice for industrial control panels.
Product Information
Extended Description
NZMN1-AF35-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM1-frame, NZMN1, Thermal-magnetic trip, 320-400A trip rating, Three-pole, 35A, 690 Vac, 500 Vdc, 50 kAIC, Distribution circuit protection, 35-35A, Front frame clamp, 35-35A
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN1-AF35-NA
EAN
4015082742201
Product Length/Depth
2.68 in
Product Height
5.71 in
Product Width
3.54 in
Product Weight
3.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
UL Listed
Amperage Rating
35 A
Voltage rating
690 Vac, 500 Vdc
Trip Type
T268
Circuit breaker type
NZMN1
Frame
NZM1
Class
Distribution circuit protection
Accessories
Rocker lever
Setting Range Ol Protector
35-35A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
50 kAIC
Connection
Front frame clamp
Overload range
35-35A
Number of poles
Three-pole
Trip rating
320-400 A
Feature → Business Impact → Application: 35 A amperage rating protects circuits precisely in distribution panels, reducing nuisance trips while supporting scalable automation; Application: ideal for process lines and manufacturing controls where consistent current protection matters. Feature → Business Impact → Application: 690 Vac and 500 Vdc voltage ratings enable safe operation across AC and DC industrial loads; Application: suitable for manufacturing floor equipment and conveyor drives with mixed voltages. Feature → Business Impact → Application: 50 kAIC short-circuit breaking capacity delivers high fault tolerance, minimizing downtime and safeguarding critical infrastructure; Application: can handle heavy fault currents in large switchgear assemblies. Feature → Business Impact → Application: Thermal-magnetic trip (T268) ensures fast, accurate tripping under overloads; Application: improves protection in dynamic load profiles common in automation cells. Feature → Business Impact → Application: NZM1 frame compatibility and front frame clamp enable quick retrofit and modular installations; Application: simplifies upgrading legacy panels. Feature → Business Impact → Application: Rocker lever accessory enhances operability and maintenance checks; Application: reduces operator effort during routine testing and commissioning. The design also aligns with distribution circuit protection best practices, enabling reliable coordination with other NZM1 components for scalable control architectures.
Get a Quick Quote for a Eaton NZMN1-AF35-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN1-AF35-NA?
Enquire Now
FAQs
NZMN1-AF35-NA uses a front frame clamp connection and is compatible with the NZM1 frame. To install, align the breaker with the bus bar and secure it to the mounting rail using the front frame clamp. The rocker lever accessory simplifies operation and testing, reducing commissioning time and potential misalignment during retrofit projects.
The device is rated for 35 A, with voltage ratings of 690 Vac and 500 Vdc, and a short-circuit breaking capacity of 50 kAIC. It is a three-pole NMN1-type MCCB with an NZM1 frame and a T268 trip type, suitable for high-demand distribution applications.
Yes. It provides robust distribution circuit protection with a high interrupt rating, front frame mounting for quick installations, and UL Listed certification. Its three-pole configuration supports balanced protection across three phase conductors, ideal for manufacturing and automation panels.
NZMN1-AF35-NA carries UL Listed certification. For region-specific requirements such as CE or IP ratings, contact Eaton or your regional distributor to confirm additional compliance or available variants that meet local standards.
The product is sold under Eaton’s policy: a one-year warranty from installation or eighteen months from shipment, whichever occurs first. Regular inspection and torque checks on mounting hardware, plus functional testing of the rocker lever, help maintain reliable protection and uptime.
