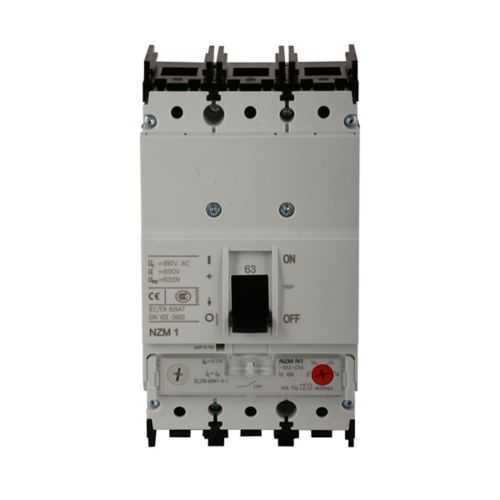

Eaton NZMN1-AF60-NA Molded Case Circuit Breaker - UL Listed
Part Number: NZMN1-AF60-NA
Quick Summary
Eaton NZMN1-AF60-NA is a molded case circuit breaker designed to protect distribution circuits in industrial electrical panels. This solution helps engineers avoid nuisance trips while delivering precise overload protection. UL Listed safety certification supports regulatory compliance across many facilities; the device is rated for 690 Vac and 500 Vdc with a 50 kAIC interrupt capacity, ensuring fast, selective fault interruption. Its three-pole NZMN1 frame and front-frame clamp enable compact installation in standard enclosures, reducing panel depth requirements. For procurement teams, the combination of robust protection, easy mounting, and regional compatibility translates to faster commissioning, lower maintenance costs, and improved uptime in demanding manufacturing and processing environments.
Product Information
Extended Description
NZMN1-AF60-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM1-frame, NZMN1, Thermal-magnetic trip, 380-630A trip rating, Three-pole, 60A, 690 Vac, 500 Vdc, 50 kAIC, Distribution circuit protection, 60-60A, Front frame clamp, 60-60A
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN1-AF60-NA
EAN
4015082742324
Product Length/Depth
2.68 in
Product Height
4 in
Product Width
3.54 in
Product Weight
2.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
UL Listed
Amperage Rating
60 A
Voltage rating
690 Vac, 500 Vdc
Trip Type
T268
Circuit breaker type
NZMN1
Frame
NZM1
Class
Distribution circuit protection
Accessories
Rocker lever
Setting Range Ol Protector
60-60A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
50 kAIC
Connection
Front frame clamp
Overload range
60-60A
Number of poles
Three-pole
Trip rating
380-630 A
Feature: 60 A amperage rating with a 60-60A overload setting. Business Impact: precise load protection and coordination with upstream devices, reducing motor stalls and unnecessary trips. Application: feeders in control panels powering manufacturing lines. Feature: Thermal-magnetic trip (T268) provides fast fault interruption and selective coordination. Business Impact: minimizes downtime during short-circuit events while protecting adjacent circuits. Application: critical production feeders and machine controls. Feature: 50 kAIC short-circuit interrupt rating. Business Impact: high fault withstand capability, enhancing personnel safety and equipment protection in high-energy systems. Application: demanding industrial environments with potential high fault currents. Feature: Front frame clamp connection and NZM1 frame compatibility. Business Impact: quick, secure installation with simplified maintenance in retrofit projects. Application: new builds and retrofits in compact enclosures. Feature: 380-630 A trip rating and 60 A setting range applicability. Business Impact: scalable protection for variable loads, reducing unnecessary replacements. Application: distribution circuits with varying demand and startup surges. Feature: UL Listed certification and compact three-pole design. Business Impact: regulatory compliance and space-efficient protection for complex panel layouts. Application: distribution circuit protection across diverse industrial applications.
Get a Quick Quote for a Eaton NZMN1-AF60-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN1-AF60-NA?
Enquire Now
FAQs
The NZMN1-AF60-NA uses a front-frame clamp connection and fits the NZM1 frame, enabling straightforward mounting in standard distribution panels. Its three-pole design supports coordinated protection across three-phase feeders, while its compact dimensions (2.68 in depth, 4 in height, 3.54 in width) help save panel space during retrofit or new-build installs.
Key specs include a 60 A amperage rating, 690 Vac and 500 Vdc voltage ratings, and a 50 kAIC short-circuit interrupt capacity. The trip type is T268, and the device belongs to the NZMN1 circuit breaker family within the NZM1 frame. It supports a 380-630 A trip rating and a 60-60A setting range for overload protection.
Yes, the NZMN1-AF60-NA is UL Listed, providing recognized safety compliance for many markets. Some regions may require additional certifications (such as CE or IP ratings); for region-specific regulatory requirements, consult the manufacturer’s documentation and local codes to determine if extra certifications are needed.
This device is ideal for distribution circuit protection in industrial panels, feeders to machinery, and control circuits within manufacturing and processing environments. Its three-pole construction, 60 A rating, and 50 kAIC interrupt capacity support robust protection for motors, conveyors, and other high-energy loads while maintaining safe operation.
Warranty terms follow Eaton’s policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. In addition to standard warranty coverage, Eaton provides technical documentation, replacement parts, and regional support to assist with installation, commissioning, and ongoing maintenance.
