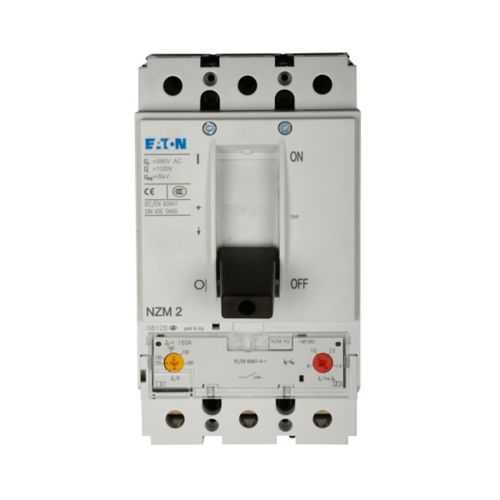

Eaton NZMN2-A100-NA Molded Case Circuit Breaker - UL Listed
Part Number: NZMN2-A100-NA
Quick Summary
NZMN2-A100-NA molded case circuit breaker protects industrial power distributions with precise thermal-magnetic trip. Engineers often face nuisance trips and complex wiring; this unit offers front-access installation and robust performance. UL Listed certification confirms compliant electrical protection, with manufacturer guidance available for CE or other standards. By aligning with Eaton's distribution protection design, it supports scalable panel layouts and lower maintenance costs. This unit is built on the NZM2 frame, offering consistent trip performance across 80-100 A settings and 50 kAIC interrupt capacity. For panel builders, the front screw connection and optional accessories like rocker lever or motor drive simplify installation and service.
Product Information
Extended Description
NZMN2-A100-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMN2, Thermal-magnetic trip, Three-pole, 100A, 690 Vac, 750 Vdc, 50 kAIC, Distribution circuit protection, 80-100A, 600-1000A delayed, Front screw, 80-100A
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN2-A100-NA
EAN
4015082692247
Product Length/Depth
4.05 in
Product Height
7.24 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
UL Listed
Amperage Rating
100 A
Voltage rating
690 Vac, 750 Vdc
Trip Type
T268
Circuit breaker type
NZMN2
Frame
NZM2
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Adjustment range short-circuit release
600-1000A delayed
Setting Range Ol Protector
80-100A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
50 kAIC
Connection
Front screw
Overload range
80-100A
Number of poles
Three-pole
Compact circuit-breakers and switch-disconnectors up to 1600 A
Eaton Specification Sheet - NZMN2-A100-NA
Selling Policy 25-000 - Distribution and Control Products and Services
Thermal-magnetic trip technology delivers fast, selective protection with predictable fault clearing, reducing nuisance trips and extending asset life in continuous industrial processes. The NZMN2-A100-NA operates on a three-pole NZM2 frame, rated at 100 A with a 690 Vac / 750 Vdc maximum, providing robust protection for three-phase loads in manufacturing and distribution panels. A 50 kAIC interrupt rating ensures reliable fault interruption for moderate-to-large installations, while front-screw terminals streamline wiring, commissioning, and maintenance in tight enclosures. Adjustable protection ranges—80-100 A and 600-1000 A delayed short-circuit release—support precise coordination with upstream devices, minimizing downtime and enabling scalable protection schemes as plant layouts evolve. Optional accessories, such as rocker levers and motor drive enhancements, extend control flexibility without compromising protection performance. Compatibility with Eaton accessories helps simplify replacement and upgrades in existing panels.
Get a Quick Quote for a Eaton NZMN2-A100-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN2-A100-NA?
Enquire Now
FAQs
The NZMN2-A100-NA uses front-screw terminals and a three-pole configuration within the NZM2 frame. Its physical footprint is 4.05 in depth, 7.24 in height, and 4.13 in width, with an approximate weight of 6 lb. Ensure proper mounting clearance and torque per the datasheet, and plan wiring channels to accommodate the 100 A rating and three-phase connections for straightforward replacement in existing panels.
Key specifications include a 100 A amperage rating, 690 Vac / 750 Vdc voltage rating, and a 50 kAIC short-circuit interrupt capacity. The trip type is T268, designed for thermal-magnetic protection. The device is front-connected, three-pole, and supports adjustable settings for overload (80-100 A) and delayed short-circuit releases (600-1000 A), enabling selective coordination in protective schemes.
Yes. The three-pole NZMN2 on the NZM2 frame is well-suited for motor control centers and distribution panels in industrial environments. Its 100 A rating, high interrupt capacity, and front-screw installation streamline MCC integration, while compatible accessories like rocker levers and motor drive options support remote operation and faster commissioning in standard control panels.
The product is UL Listed, validating adherence to recognized electrical safety standards. Eaton provides installation guidance and a one-year warranty under policy 25-000 (or 18 months from shipment). For other regional standards, consult the manufacturer to confirm any additional certifications or compliance notes relevant to your facility.
The unit’s thermal-magnetic protection delivers reliable fault isolation with minimal mechanical wear, helping reduce maintenance costs. Its adjustable settings facilitate ongoing coordination as system loads change, potentially extending service intervals. Replace when the device shows signs of degraded tripping performance, arcing, or after exceeding its recommended service life in your facility’s maintenance plan.
