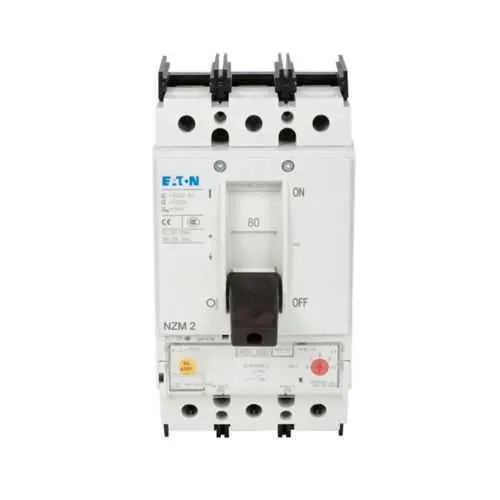

Eaton NZMN2-AF35-BT-NA Molded Case Circuit Breaker - UL Listed
Part Number: NZMN2-AF35-BT-NA
Quick Summary
Eaton NZMN2-AF35-BT-NA molded case circuit breaker provides reliable overcurrent protection for distribution panels and motor circuits in industrial facilities. Engineers often contend with nuisance trips, slow fault isolation, and challenging panel coordination across multi-drawer or compact switchgear. This unit carries UL Listed certification, and Eaton supports regional approvals where required; consult manufacturer for CE/IP equivalents and field-wiring guidance. Built on the NZM2 frame with a thermal-magnetic trip, it offers three-pole protection at 35 A with a 690 Vac/750 Vdc rating and a 50 kAIC interrupt capability. The compact form, front-frame clamp, and optional rocker lever or motor drive simplify installation while aligning with modern safety and maintainability goals.
Product Information
Extended Description
NZMN2-AF35-BT-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMN2, Thermal-magnetic trip, Three-pole, 35A, 690 Vac, 750 Vdc, 50 kAIC, Box, Distribution circuit protection, 35-35A, 320-400A delayed, Front frame clamp, 35-35A
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN2-AF35-BT-NA
EAN
4015081073016
Product Length/Depth
4.05 in
Product Height
7.24 in
Product Width
4.13 in
Product Weight
4.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
UL Listed
Amperage Rating
35 A
Voltage rating
690 Vac, 750 Vdc
Trip Type
T268
Circuit breaker type
NZMN2
Terminals
Box
Frame
NZM2
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Adjustment range short-circuit release
320-400A delayed
Setting Range Ol Protector
35-35A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
50 kAIC
Connection
Front frame clamp
Overload range
35-35A
Number of poles
Three-pole
Feature: Three-pole NZMN2 frame with 35 A rating provides precise, coordinated protection for distribution panels and motor circuits. Business Impact: Reduces nuisance trips and minimizes downtime by delivering reliable short-circuit protection aligned to system load. Application: Suitable for MCCs and large distribution boards in manufacturing and process facilities, improving uptime and safety. Feature: Thermal-magnetic trip with 50 kAIC interrupt capability and 690 Vac/750 Vdc ratings. Business Impact: Delivers robust fault interruption at high fault currents, enabling safe isolation of faults and protecting equipment. Application: Critical for equipment with high inrush like motor drives and conveyors across industrial lines. Feature: NZM2 front-frame mounting with box terminals and front frame clamp. Business Impact: Simplifies installation, reduces wiring time, and enables modular replacement in retrofit projects. Application: Ideal for compact switchgear and retrofit installations in control panels. Feature: Optional accessories including rocker lever and motor drive; adjustable short-circuit release (320–400 A delayed). Business Impact: Enables customized protection schemes and quick field modifications without replacing the entire breaker. Application: Supports scalable protection in evolving automation architectures. Feature: Warranty and compliance support (UL Listed). Business Impact: Provides confidence in safety compliance and post-sale support, reducing procurement risk. Application: Essential for compliant procurement and long-term maintenance planning in regulated industrial environments.
Get a Quick Quote for a Eaton NZMN2-AF35-BT-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN2-AF35-BT-NA?
Enquire Now
FAQs
Yes. The NZMN2-AF35-BT-NA uses a front-frame clamp and box terminals designed for the NZM2 frame, streamlining installation in distribution panels and MCCs. The three-pole design and compact footprint help minimize panel depth, while standardized mounting patterns support quick retrofits or new builds.
This breaker provides a 50 kAIC interrupt rating with a voltage rating of 690 Vac and 750 Vdc, in a three-pole NZMN2 frame. It delivers precise thermal-magnetic protection for motor loads and distribution circuits, enabling safe interruption of high fault currents without compromising uptime.
Yes, it is designed for distribution circuit protection and motor control centers. With a 35 A rating, front-frame mounting, and compatible accessories, it integrates with motor drives and control panels while meeting UL Listed requirements and inline with typical industrial protection schemes.
The model is UL Listed, meeting recognized safety standards for electrical protection components. Compliance for CE, IP ratings, or other regional certifications varies by market and supplier requirements; consult Eaton for the specific certifications applicable to your operation and location.
Warranty is Eaton Selling Policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. The product includes access to Eaton technical support, replacement options, and installation guidance to help minimize downtime and optimize life-cycle costs.
