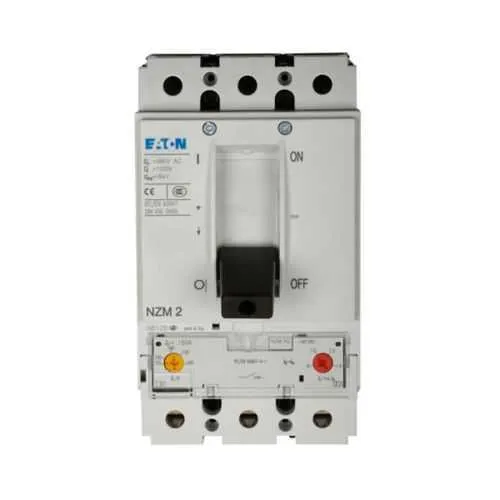

Eaton NZMN2-VE100-SVE Molded Case Circuit Breaker UL Listed
Part Number: NZMN2-VE100-SVE
Quick Summary
NZMN2-VE100-SVE molded case circuit breaker protects industrial electrical systems across panels and machinery. Engineers often struggle to balance selective protection with motor-drive integration under varying loads and startup conditions. UL Listed certification supports compliance, and the device is designed for selective and generator protection, helping safeguard critical assets in manufacturing environments. This model, with the NZM2 frame and robust 100 A rating, also delivers reliable operation in harsh industrial networks while simplifying installation and service. The combination of rugged performance and rocker lever/motor-drive compatibility translates to improved uptime and lower maintenance costs for panel builders and plant operators.
Product Information
Extended Description
NZMN2-VE100-SVE Eaton: Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMN2, Thermal-magnetic trip type, Three-pole, 100A, 690 Vac, 750 Vdc, 50 kAIC, Selective and generator protection, Rocker lever, motor drive, Screw
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN2-VE100-SVE
EAN
4015081127825
Product Length/Depth
4.05 in
Product Height
7.24 in
Product Width
4.13 in
Product Weight
6.34 lb
Compliances
Contact Manufacturer
Certifications
UL Listed
Amperage Rating
100 A
Voltage rating
690 Vac, 750 Vdc
Trip Type
T268
Circuit breaker type
NZMN2
Frame
NZM2
Class
Selective and generator protection
Accessories
Rocker lever, motor drive
Interrupt rating
50 kAIC
Connection
Screw
Number of poles
Three-pole
Feature: 50 kAIC interrupt rating with 690 Vac / 750 Vdc capability. Business Impact: Higher fault current handling reduces equipment damage and short-circuit exposure. Application: Suitable for demanding panelboard and motor-drive protection in heavy machinery environments. Feature: Three-pole NZMN2 frame with 100 A rating. Business Impact: Standardized, compact footprint that saves panel space and simplifies wiring schemes. Application: Common in industrial control panels and machine assemblies requiring three-phase protection. Feature: Thermal-magnetic trip (T268). Business Impact: Fast, reliable fault clearance with coordinated protection to minimize downtime. Application: Safe operation for motors and drives with varied load profiles. Feature: Accessories including rocker lever and motor-drive compatibility. Business Impact: Improves operator ergonomics and integration with motor-control configurations, reducing commissioning time. Application: Panels with manual operation and drive-based control schemes. Feature: Screw connection termination. Business Impact: Secure, vibration-resistant terminations that withstand industrial environments. Application: Field installs and retrofit projects where dependable wiring is critical. Feature: UL Listed certification. Business Impact: Demonstrates compliance with recognized safety standards, accelerating procurement and regulatory acceptance. Application: Preferred choice for compliant, industrial-grade protection.
