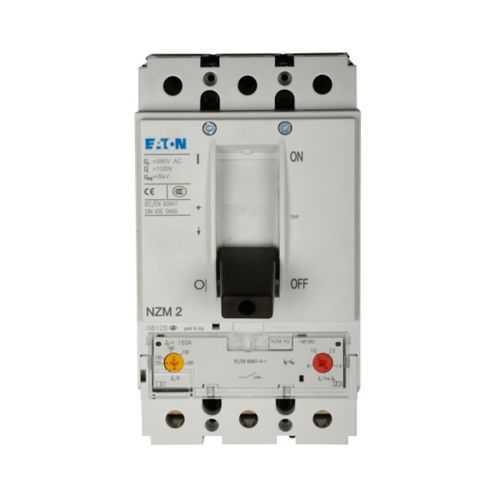

Eaton NZMN2-VE160-NA NZMN2 Molded Case Breaker - UL/CSA
Part Number: NZMN2-VE160-NA
Quick Summary
NZMN2-VE160-NA molded case circuit breaker protects critical power in industrial panels. Engineers rely on reliable electrical protection that won’t trip unnecessarily under transient load changes. The unit offers UL/CSA listings and IEC compliance, supporting safe, code-conforming installations across North American and international sites. With a 160 A rating, three-pole design, and 50 kAIC interrupt capability, it delivers selective protection and generator protection for motor drives and feeders. The compact NZM2 frame fits tight control cabinets, while accessories like rocker lever and motor drive compatibility streamline commissioning. By aligning with industry standards, this breaker helps reduce downtime, simplify maintenance, and improve overall panel reliability, enabling smoother project deployment and ongoing operational resilience.
Product Information
Extended Description
NZMN2-VE160-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMN2, Thermal-magnetic trip, Three-pole, 160A, 750 Vdc, 50 kAIC, Selective and generator protection, motor drive, conforms to UL/CSA and IEC
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN2-VE160-NA
EAN
4015082711498
Product Length/Depth
4.13 in
Product Height
5.87 in
Product Width
5.87 in
Product Weight
5.686 lb
Compliances
Contact Manufacturer
Amperage Rating
160 A
Voltage rating
690 Vac, 750 Vdc
Trip Type
T268
Circuit breaker type
NZMN2
Frame
NZM2
Class
Selective and generator protection
Accessories
Rocker lever, motor drive
Interrupt rating
50 kAIC
Number of poles
Three-pole
Feature: Thermal-magnetic trip provides precise overcurrent protection, drastically reducing nuisance trips during startup and transient faults. Business Impact: Improves uptime and system safety, lowering maintenance costs and unplanned shutdowns. Application: Ideal for motor drives and feeders in industrial control panels that demand reliable, coordinated protection. Feature: Three-pole NZMN2 frame with a compact 4.13 in depth footprint. Business Impact: Maximizes usable panel space and simplifies wiring, enabling denser, more cost-effective switchgear assemblies. Application: Suitable for control cabinets in manufacturing lines and processing automation where space is at a premium. Feature: 50 kAIC interrupt rating with 160 A amperage rating. Business Impact: Delivers robust fault-current interruption for both distribution circuits and generator-backed systems, reducing damage risk and improving safety margins. Application: Attach in main and feeder circuits servicing high-energy loads and generator interfaces. Feature: Accessories including rocker lever and motor drive compatibility. Business Impact: Speeds commissioning and maintenance checks, lowers field wiring errors, and supports quick replacement in retrofit projects. Application: Supports rapid deployment in new builds and upgrade cycles across OEM and end-user facilities. Feature: UL/CSA and IEC compliance. Business Impact: Ensures code conformance, simplifies procurement and cross-border sourcing, and aligns with procurement playbooks. Application: Suitable for global manufacturing sites requiring consistent protection standards across jurisdictions.
Get a Quick Quote for a Eaton NZMN2-VE160-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN2-VE160-NA?
Enquire Now
FAQs
The NZMN2-VE160-NA is designed for the NZM2 frame and Three-pole architecture, ensuring straightforward mounting in standard industrial control panels. Its compact 4.13 in depth supports dense cabinet layouts, while ensuring proper alignment with standard wiring conduits and accessory interfaces such as rocker lever and motor drive components.
Its thermal-magnetic trip delivers precise overcurrent protection essential for motor drives, while its selective and generator protection capabilities protect upstream feeders and generator interfaces. With a 160 A rating and 50 kAIC interrupt capacity, it maintains equipment safety and minimizes fault-related downtime in high-energy load scenarios.
The NZMN2-VE160-NA carries UL and CSA listings and IEC standard compliance, providing code-conforming protection across North American and international installations. This certification combination supports safer procurement, cross-border sourcing, and regulator-ready installations in mixed-use facilities.
Follow standard maintenance for molded case circuit breakers: visually inspect for secure mounting and clean terminations, verify wiring torque, test the trip function periodically per site procedures, and confirm accessory compatibility (rocker lever, motor drive). Routine checks help ensure reliable operation, extend service life, and minimize unexpected trips in critical lines.
Deploying the NZMN2-VE160-NA yields measurable ROI through reduced downtime, improved safety margins, and streamlined maintenance. Its compact form factor supports denser panel designs, while UL/CSA and IEC compliance simplifies regulatory approvals and global procurement, delivering faster project timelines and more predictable lifecycle costs in industrial facilities.
