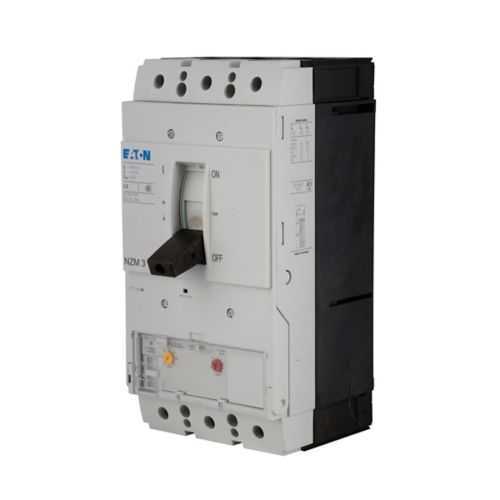

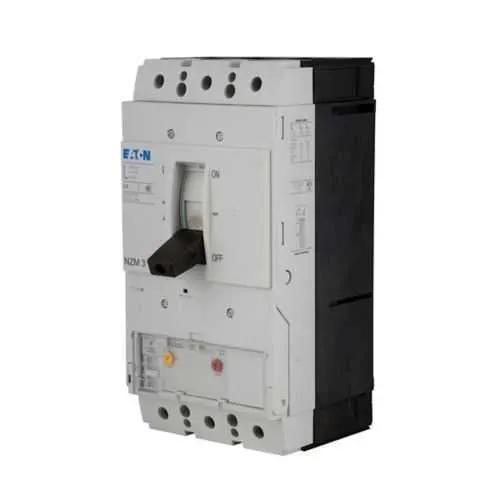

Eaton NZMN3-AE600-NA Molded Case Breaker - 50 kAIC UL Listed
Part Number: NZMN3-AE600-NA
Quick Summary
NZMN3-AE600-NA molded case circuit breaker provides reliable overload and short-circuit protection for industrial panels. Specifying a high-capacity device that fits compact spaces can reduce panel downtime and costly fault interruptions. UL Listed certification confirms safety compliance for critical electrical installations. With a 690 V AC rating and 600 A amperage, it supports modern motor control and power distribution. By combining the NZM3 frame with front-screw connections and a motor-drive option, this breaker supports efficient installation and long-term reliability in industrial environments.
Product Information
Extended Description
NZMN3-AE600-NA Eaton: Eaton Series NZM complete molded case circuit breaker, NZM3-frame, NZMN3, Thermal-magnetic trip, 1200-4800A delayed, Three-pole, 600A, 690 Vac, 50 kAIC at 415 Vac, 42 kAIC at 480 Vac, Distribution circuit protect., Front screw, 300-600A
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN3-AE600-NA
EAN
4015082693015
Product Length/Depth
5.512 in
Product Height
5.512 in
Product Width
5.512 in
Product Weight
5.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
600 A
Voltage rating
690 V AC
Trip Type
T268
Circuit breaker type
NZMN3
Frame
NZM3
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Setting Range Ol Protector
300-600A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
42 kAIC at 480 Vac 50 kAIC at 415 Vac
Connection
Front screw
Overload range
300-600A
Number of poles
Three-pole
Trip rating
1200-4800 A delayed
Feature: 600 A amperage rating and 690 V AC rating. Business Impact: This pairing delivers robust protection for large feeders, minimizing nuisance trips and equipment damage. Application: suitable for main distribution panels and motor feeders in manufacturing plants. Feature: T268 trip type with 50 kAIC short-circuit capacity at 415 Vac and 42 kAIC at 480 Vac. Business Impact: Enables fast, selective protection against high fault currents, improving safety and uptime. Application: protection in switchgear assemblies and central control panels. Feature: NZM3 frame and front screw/installation design. Business Impact: Allows straightforward installation and secure connections in tight enclosures. Application: retrofit and new panel builds requiring front-access mounting. Feature: Accessories including rocker lever and motor drive option. Business Impact: Enhances operability, remote control compatibility, and reduced maintenance steps. Application: motor-driven equipment and automation panels. Feature: Compact footprint and weight of 5.5 lb with 5.512 in dimensions. Business Impact: Saves panel space and facilitates dense layouts, lowering enclosure costs. Application: compact control panels and space-constrained switchboards. Feature: UL Listed certification and Eaton warranty policy. Business Impact: Delivers regulatory confidence and predictable ownership costs with a one-year warranty from installation or eighteen months from shipment. Application: regulated facilities and procurement planning.
Get a Quick Quote for a Eaton NZMN3-AE600-NA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton NZMN3-AE600-NA?
Enquire Now
FAQs
Yes. The NZMN3-AE600-NA uses front-screw connections designed for installation in NZM3-frame panels, enabling secure mounting and straightforward retrofits in compact control enclosures.
It is a 600 A, 690 V AC rated three-pole device with a T268 trip type and short-circuit capacity of 50 kAIC at 415 Vac (42 kAIC at 480 Vac), suitable for high-current distribution circuits.
Ideal for industrial distribution panels, motor control centers, and switchgear assemblies where dense layouts and high fault current tolerance are required, especially in manufacturing environments.
The product is UL Listed, confirming compliance with recognized safety standards for electrical protection devices in industrial installations.
It carries Eaton’s warranty policy of one year from installation or eighteen months from shipment, whichever comes first, with standard spare parts availability and service support to optimize lifecycle costs.
