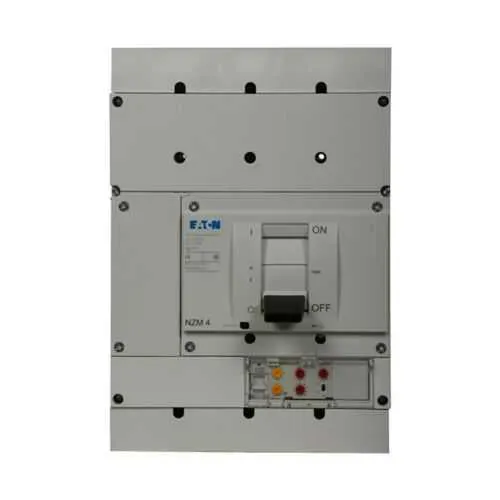

Eaton NZMN4-4-VE800 Molded Case Circuit Breaker - UL Listed
Part Number: NZMN4-4-VE800
Quick Summary
NZMN4-4-VE800 is a molded case circuit breaker used to protect electrical distribution panels in industrial plants. Designers often struggle to choose protective settings that deliver reliable fault clearance while minimizing nuisance trips across dynamic load profiles. This unit carries UL Listed certification, and combines an 800 A rating with a 690 V AC maximum and a 50 kAIC short-circuit rating for demanding feeders. Its four-pole NZM4 frame, front-screw terminals, and bolt-on mounting support straightforward installation in panelboards. Optional rocker lever or motor-drive accessories simplify operation and retrofit. By delivering predictable protection and scalable current settings (400–800 A), it supports compliant, cost-efficient distribution circuit protection in modern industrial environments.
Product Information
Extended Description
NZMN4-4-VE800 Eaton: Eaton Series NZM complete molded case circuit breaker, NZM4-frame, NZMN4, Thermal-magnetic trip, 800-8000A delayed, 1600-9600A delayed, Four-pole, 800A, 690 Vac, 50 kAIC at 400 Vac, Bolt-on, Distribution circuit protect., Front screw
Product Name
Eaton Series NZM complete molded case circuit breaker
Catalog Number
NZMN4-4-VE800
EAN
4015082659752
Product Length/Depth
8.15 in
Product Height
11.024 in
Product Width
11.024 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
800 A
Voltage rating
690 V AC
Trip Type
T268
Circuit breaker type
NZMN4
Terminals
Bolt-on
Frame
NZM4
Class
Distribution circuit protection
Accessories
Rocker lever, motor drive
Setting Range Ol Protector
400-800A
Short-circuit breaking capacity
50 kAIC
Interrupt rating
50 kAIC at 400 Vac
Connection
Front screw
Overload range
400-800A
Number of poles
Four-pole
Compact circuit-breakers and switch-disconnectors up to 1600 A
Eaton Specification Sheet - NZMN4-4-VE800
Feature: 800 A amperage rating with 400–800 A setting range → Business Impact: Enables precise protection for feeders, reducing nuisance trips and enhancing system uptime. Application: Main distribution circuits in industrial panels. Feature: 690 V AC voltage rating with 50 kAIC breaking capacity at 400 VAC → Business Impact: Provides robust fault handling for high-current events, improving safety and equipment longevity. Application: Medium-voltage panelboards and switchgear in manufacturing facilities. Feature: Four-pole NZMN4 frame with bolt-on, front-screw terminals → Business Impact: Simplifies installation, simplifies field retrofit, and enables secure, accessible maintenance. Application: Retrofit and new installs in control cabinets and distribution boards. Feature: Trip Type T268 and 400–800 A overload range → Business Impact: Delivers predictable tripping characteristics under overload conditions, reducing downtime and protecting motors and feeders. Application: Motor feeders and mixed-load panels in process industries. Feature: Accessories including rocker lever and motor drive → Business Impact: Improves operator control and integration with motor control schemes, lowering commissioning time. Application: Start-up sequences and motor-driven equipment. Feature: UL Listed certification and Eaton warranty policy → Business Impact: Ensures compliance with North American safety standards and long-term support, lowering total cost of ownership. Application: Procurement for compliant, serviceable protection devices in industrial environments.
