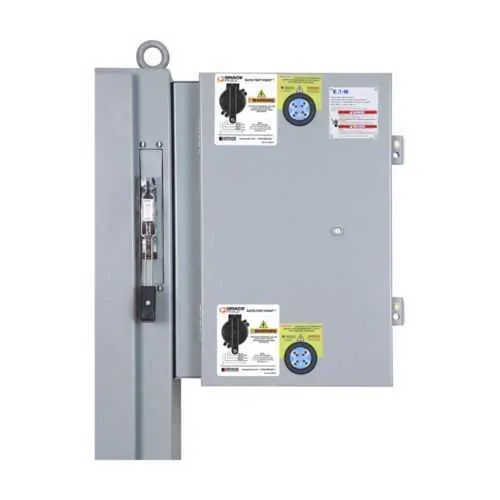

Eaton OLI363FDJA-00VP OEM Line Isolation Switch - UL Listed
Part Number: OLI363FDJA-00VP
Quick Summary
A line isolation switch safely isolates electrical circuits in industrial panels for service and maintenance. It reduces downtime and operator risk by providing a clear, fail-safe disconnect during shutdowns. Certified UL Listed and built for rugged environments, the unit features a NEMA 12/3R galvanized steel enclosure and 600 V capability with Class J fusible protection. This combination supports reliable, code-compliant isolation for OEM installations and service operations, delivering straightforward installation and scalable coverage across multiple panels.
Product Information
Extended Description
OLI363FDJA-00VP Eaton: Eaton OEM line isolation switch, Voltage portal, 100 A, NEMA 12/3R, Galvanized steel, Class J, Fusible without neutral, Three-pole, Three-wire, 600 V, #14-#1/0 Cu/Al
Product Name
Eaton oem line isolation switch
Catalog Number
OLI363FDJA-00VP
UPC
786676034326
Product Length/Depth
21.49 in
Product Height
9.24 in
Product Width
16.08 in
Product Weight
40 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
OEM line isolation switch
Amperage Rating
100A
Fuse class provision
Class J fusible
Voltage rating
600 V
Special features
Voltage portal
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - OLI363FDJA-00VP
The switch delivers 100 A and 600 V ratings, enabling safe interruption of medium to high-power loads while reducing the panel footprint and installation time, which lowers upfront costs and long-term maintenance complexity. In practice, this means shorter shutdowns, faster fault isolation, and improved line uptime for manufacturing lines and material-handling systems. The galvanized steel enclosure with a NEMA 12/3R rating provides dust, splash, and weather resistance, supporting indoor and outdoor installations without compromising protection or service access. Fusible without neutral configuration, paired with Class J protection, ensures controlled fault isolation and simplifies spare-part inventories, aiding easier integration with existing motor-control schemes. A voltage portal allows quick voltage verification at the disconnect, accelerating commissioning and troubleshooting. The three-pole, three-wire design aligns with standard three-phase systems, reducing wiring complexity and panel depth. UL Listed certification underpins compliance, procurement standards, and supplier qualification. Overall, the combination of rugged construction, protective enclosure, and recognized safety certification helps buyers meet maintenance and safety objectives with a single, reliable disconnect.
Get a Quick Quote for a Eaton OLI363FDJA-00VP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI363FDJA-00VP?
Enquire Now
FAQs
The OLI363FDJA-00VP is engineered for standard OEM and industrial control panels, featuring a three-pole, three-wire configuration and a footprint that fits typical panel depths. With a 21.49 in depth, 16.08 in width, and 9.24 in height, it integrates into existing control architectures without extensive field modification, while the NEMA 12/3R enclosure supports indoor and semi-exposed environments.
Its 100 A, 600 V rating delivers reliable disconnect capability for mid to high-power circuits, and the fusible without neutral design coupled with Class J protection ensures controlled fault interruption. The voltage portal enables quick verification of line status, reducing verification time and enabling safer, faster maintenance shutdowns.
Key ratings include a 100 A amperage rating and a 600 V voltage rating, suitable for three-phase industrial loads. Protection features include Class J fusible protection and UL Listed certification, with a NEMA 12/3R enclosure providing environmental protection for reliable operation in demanding settings.
The enclosure is a galvanized steel NEMA 12/3R type, which offers dust and splash resistance suitable for indoor shop floors and semi-exposed areas. It is not specified as explosion-proof; for hazardous environments, confirm additional enclosure ratings or enclosures with higher ingress protection and suitable approvals.
By combining a rugged, UL Listed disconnect with a compact footprint, the switch reduces downtime, speeds maintenance, and lowers spare-part inventories thanks to a single, versatile device. Quick voltage verification via the portal and straightforward installation support faster commissioning and longer panel uptime across manufacturing lines.
