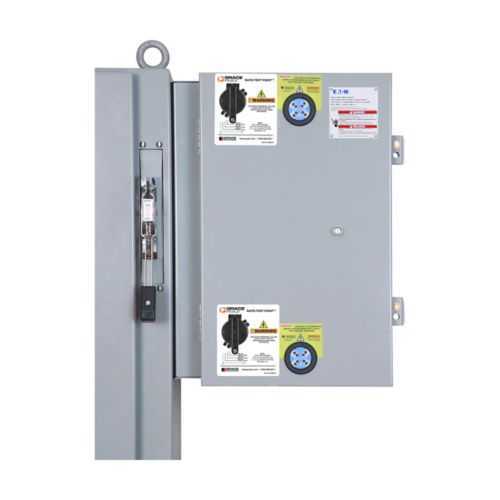

Eaton OLI363FDJA-03VT OEM Line Isolation Switch - UL Listed
Part Number: OLI363FDJA-03VT
Quick Summary
Eaton OLI363FDJA-03VT OEM line isolation switch provides safe, code-compliant isolation for industrial feeders and control panels. It’s designed to prevent accidental energization during maintenance, reducing risk and downtime for critical processes. With UL Listed protection and a rugged NEMA 12/3R-compatible enclosure, it supports 600 V systems and 100 A loads while integrating seamlessly into existing control architectures. This solution helps engineers meet lockout/tagout requirements and streamline maintenance routines, while offering reliable signaling through its 2NO/2NC auxiliary contacts and straightforward mechanical operation. The product is a trusted fit for OEM equipment, panel builders, and facilities seeking durable, compliant isolation switches for high-demand environments.
Product Information
Extended Description
OLI363FDJA-03VT Eaton: Eaton oem line isolation switch, OLI, 100A, 600V, FUS, NEMA 12/3R, 2NO/2NC AUX
Product Name
Eaton oem line isolation switch
Catalog Number
OLI363FDJA-03VT
UPC
786689665807
Product Length/Depth
21.49 in
Product Height
9.24 in
Product Width
16.08 in
Product Weight
40 lb
Certifications
UL Listed
Type
OLI Switch
Amperage Rating
100A
Voltage rating
600 V
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
Eaton Specification Sheet - OLI363FDJA-03VT
Feature: 100A amperage rating and 600V voltage rating provide robust protection for high-demand feeders, reducing the risk of arc flash and unintended energization. Business Impact: Enables reliable operation of heavy electrical loads while maintaining worker safety and regulatory compliance in manufacturing lines. Application: Ideal for control panels and motor control centers where dependable isolation is critical. Feature: 2NO/2NC auxiliary contacts enable remote signaling and interlock integration. Business Impact: Improves control system visibility and enables safe sequencing in automation architectures, lowering commissioning time. Application: Suitable for process lines requiring clear LO/TO status indicators and interlock logic in industrial facilities. Feature: UL Listed certification and NEMA 12/3R enclosure compatibility. Business Impact: Demonstrates compliance with safety standards and provides a robust enclosure for dusty or damp environments, reducing warranty risk. Application: Suitable for harsh factory floors and outdoor-rated installations needing reliable protection. Feature: Generous dimensions and weight, with a length of 21.49 in, width 16.08 in, height 9.24 in, and 40 lb mass. Business Impact: Clear mounting footprint simplifies panel layout planning and reduces field fit challenges. Application: OEM line integration where space is constrained but space for a secure isolation switch is available. Feature: OEM line isolation design with straightforward operation. Business Impact: Speeds installation and maintenance tasks, lowering labor costs and downtime. Application: Ideal for OEM equipment, panel builders, and facilities requiring durable isolation switches for high-demand environments.
Get a Quick Quote for a Eaton OLI363FDJA-03VT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI363FDJA-03VT?
Enquire Now
FAQs
The OLI363FDJA-03VT is designed for NEMA 12/3R enclosures and fits standard control panel footprints. Its 21.49 in length, 16.08 in width, and 9.24 in height define a practical mounting envelope for OEM panels and line-side enclosures. Verify fit by comparing the enclosure depth and access for wiring and auxiliary contacts.
This switch is rated for 100A continuous amperage and 600V. It carries UL Listing, supporting safety compliance for industrial electrical installations and aiding proper lockout/tagout procedures in maintenance workflows.
Yes. The 100A/600V rating, plus 2NO/2NC auxiliary contacts, makes it well-suited for isolating feeders in motor control centers and control panels. Its NEMA 12/3R enclosure provides protection in dusty or damp environments, adding reliability in harsh manufacturing settings.
The primary certification is UL Listed, confirming adherence to recognized safety requirements. Its NEMA 12/3R enclosure rating (environmental protection against dust and moisture) further supports safe operation in industrial environments and reduces compliance risk for equipment builders and integrators.
By delivering reliable, code-compliant isolation with 2NO/2NC signaling, the switch facilitates safer LO/TO procedures and faster maintenance, reducing downtime. Its straightforward installation footprint and robust construction also lower field rework and warranty quotes for OEMs and panel builders.
