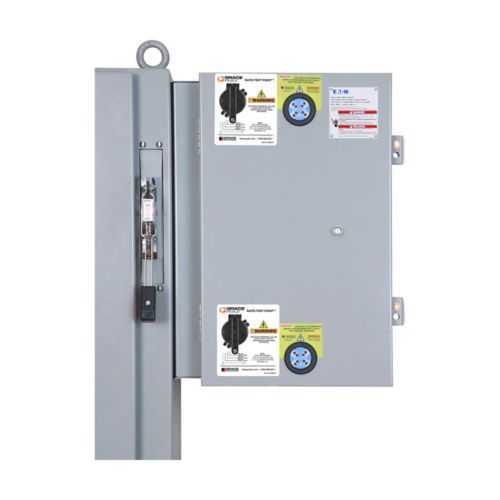

Eaton OLI363FDJC-00VP OEM Line Isolation Switch - UL Listed
Part Number: OLI363FDJC-00VP
Quick Summary
Eaton OEM line isolation switch is a reliable solution for safely disconnecting three-phase power in industrial panels and machines. This device helps maintenance teams prevent unexpected energization and reduces downtime during service. UL Listed and built for rugged environments, it features a NEMA 12, NEMA 3R enclosure and galvanized steel construction to withstand dust, moisture, and incidental impact. With a three-pole, three-wire configuration, Class J fusible protection, and a voltage portal for quick verification, it supports fast fault isolation and safer commissioning. For OEMs and panel builders, its compact footprint and straightforward wiring translate into lower installation costs and improved total cost of ownership while maintaining code-compliance and reliability.
Product Information
Extended Description
OLI363FDJC-00VP Eaton: Eaton OEM line isolation switch, Voltage portal, 100 A, NEMA 12/3R, Galvanized steel, Class J fusible, Fusible without neutral, Three-pole, Three-wire, 600 V, #14-#1/0 Cu/Al
Product Name
Eaton oem line isolation switch
Catalog Number
OLI363FDJC-00VP
UPC
786676034593
Product Length/Depth
21.49 in
Product Height
9.24 in
Product Width
16.08 in
Product Weight
40 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
OEM line isolation switch
Amperage Rating
100A
Fuse class provision
Class J fusible
Voltage rating
600 V
Special features
Voltage portal
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - OLI363FDJC-00VP
Feature → Business Impact → Application: 100 A amperage rating and 600 V voltage rating deliver robust protection for 3-phase equipment, reducing arc-flash risk and minimizing unplanned downtime in heavy-industry panels. This translates to higher uptime and safer maintenance workflows, particularly in steel, chemical, and manufacturing environments where consistent power isolation is critical. Application: service disconnects in factory automation cabinets. Feature → Business Impact → Application: Three-pole, three-wire design simplifies wiring schemes and minimizes misconnection errors during installation and servicing. This improves installation speed, reduces field wiring mistakes, and supports compliant panel layouts in new builds or retrofits. Application: OEM line integration and replacement disconnects. Feature → Business Impact → Application: NEMA 12, NEMA 3R enclosure in galvanized steel provides dust, moisture, and corrosion resistance for indoor and outdoor applications, cutting maintenance costs and extending service life. Application: outdoor control panels and harsh shop floors. Feature → Business Impact → Application: Voltage portal enables quick voltage verification without opening the enclosure, accelerating testing, commissioning, and troubleshooting. Application: routine maintenance checks and start-up verification. Feature → Business Impact → Application: UL Listed certification confirms compliance with recognized safety standards, helping you meet regulatory requirements and customer procurement criteria. Application: safety-critical industrial installations. Feature → Business Impact → Application: Compact OEM-optimized footprint and simple wiring ease integration into machine builders’ control systems, reducing design time and enabling scalable setups. Application: modular automation lines and equipment cages.
Get a Quick Quote for a Eaton OLI363FDJC-00VP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI363FDJC-00VP?
Enquire Now
FAQs
The OLI363FDJC-00VP is a three-pole, three-wire disconnect rated at 100 A and 600 V, designed for standard industrial control panels. Its NEMA 12/3R enclosure and galvanized steel body align with common OEM enclosures, simplifying retrofits and new builds. When pairing with compatible fuses (Class J), ensure mounting fits within the available panel depth and that wiring terminations accommodate #14-#1/0 Cu/Al conductors as specified.
Key specifications include a 100 A amperage rating, a 600 V voltage rating, three-pole configuration, and Class J fusible protection. The unit is designed for three-wire systems and supports fusible operation without a neutral. These specs inform safe operation, anticipated fault isolation times, and compatibility with your motor loads and protection schemes.
Yes. The enclosure is rated for NEMA 12 and NEMA 3R, indicating suitability for indoor and moderate outdoor environments when installed in appropriate locations. The galvanized steel construction provides corrosion resistance, and the enclosure protections help maintain reliability in dusty or damp shop floors and protected outdoor spaces.
The unit is UL Listed, confirming compliance with recognized safety standards for electrical equipment. While other specific certifications like CE or IP ratings aren’t listed in the provided data, UL Listing and the NEMA 12/3R enclosure rating collectively address a broad range of safety and environmental requirements typical in industrial settings.
The voltage portal enables quick, non-invasive voltage verification without opening the enclosure, reducing the time needed for routine checks and commissioning. This accelerates start-ups and troubleshooting, minimizes exposure during testing, and supports safer maintenance routines, contributing to lower downtime and a faster return on investment for mission-critical equipment.
