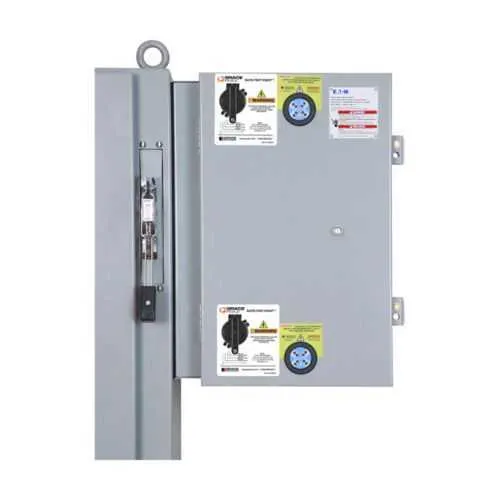

Eaton OLI364FDJB-00VT OLI Switch - UL Listed, 600 V
Part Number: OLI364FDJB-00VT
Quick Summary
Eaton OLI364FDJB-00VT line isolation switch protects energized circuits in industrial control panels. Operators often struggle with safe shutdowns and clear status indication during maintenance. It carries UL Listed certification and features a NEMA 12/3R enclosure for rugged protection in harsh environments, along with Class J fusible provisions for safe, selective coordination. This model combines built-in voltage indicators and testers on both line and load sides to streamline testing and fault isolation. The rugged package supports fast installation, reliable visibility, and minimal downtime, while providing compatibility with standard Eaton OLI accessories. For engineers and procurement teams, it offers predictable performance, easier compliance, and a clear path to ROI through improved safety and uptime.
Product Information
Extended Description
OLI364FDJB-00VT Eaton: Eaton OLI Switch: 200A/3P, 600VAC Fusible(J), NEMA Type 12/3R - Includes both voltage Indicator and Voltage Tester on LINE and LOAD Side
Product Name
Eaton oem line isolation switch
Catalog Number
OLI364FDJB-00VT
UPC
786689211479
Product Length/Depth
28.21 in
Product Height
9.24 in
Product Width
18.3 in
Product Weight
51 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Number Of Poles
Three-pole
Type
OLI Switch
Amperage Rating
200A
Fuse class provision
Class J fusible
Voltage rating
600 V
Eaton OEM Line Isolation Switch (OLI) Installation Video
Eaton OEM Line Isolation Switch (OLI) Installation Video
Eaton OEM Line Isolation Switch (OLI) Installation Video
Eaton OEM Line Isolation Switch (OLI) Installation Video
Eaton OEM Line Isolation Switch (OLI) Installation Video
Eaton Specification Sheet - OLI364FDJB-00VT
OLI364FDJB-00VT delivers a 200A, three-pole switch rated for 600 VAC, enabling robust isolation of heavy feeders. This specification supports reliable shutdowns during maintenance and reduces arc flash exposure, directly impacting worker safety and downtime in motor control centers. Built-in voltage indicators and a voltage tester on both the line and load sides provide immediate, tool-free verification of circuit status. This feature shortens maintenance windows and minimizes misoperations, improving field reliability and compliance with lockout/tagout procedures. The NEMA 12/3R enclosure protects internal components from dust and moisture, supporting indoor and outdoor installations in harsh environments. This reduces field service calls and extends service life in challenging facilities. Class J fuse provision delivers selective coordination for critical circuits, enabling targeted disconnection without compromising upstream protection. This simplifies fault isolation for MCCs and control panels while meeting industry safety standards. UL Listed certification ensures compliance with recognized safety standards and simplifies procurement across regulated industries. The rugged 200A, 600V design matches common panel and switchgear configurations, reducing configuration errors. Compatibility with standard Eaton OLI accessories and documented installation resources streamlines mounting and wiring. This reduces installation risk, accelerates commissioning, and provides a clear upgrade path as system requirements evolve.
Get a Quick Quote for a Eaton OLI364FDJB-00VT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI364FDJB-00VT?
Enquire Now
FAQs
Ensure mounting within a compatible enclosure on a clean, dry surface. Verify alignment with a three-pole wiring scheme, observe 600 V maximum rating, and follow lockout/tagout procedures during installation. Use the built-in line and load voltage indicators to confirm circuit status before wiring or testing, and consult the installation video and specification sheet for step-by-step guidance.
Yes. The Class J fusible provision supports selective coordination by allowing the switch to accommodate fuse protection in line with upstream devices. This enables targeted disconnection of faults while preserving protection upstream, reducing the risk of wide-area outages and enabling safer maintenance on feeders and motor circuits.
The indicators on both the line and load sides provide immediate, tool-free confirmation of circuit status, reducing guesswork during testing and commissioning. This accelerates lockout procedures, improves safety during maintenance, and helps ensure accurate fault isolation without needing separate testing equipment.
The OLI364FDJB-00VT carries UL Listed certification and utilizes a NEMA 12, NEMA 3R enclosure. This combination supports indoor and outdoor installations, protecting against dust, moisture, and incidental impacts, and helping ensure compliance with safety and reliability requirements in demanding environments.
Benefits include enhanced safety through reliable isolation, reduced maintenance downtime due to quick status checks, and easier regulatory compliance with UL Listed and recognized enclosure protections. The three-pole, 200A, 600V design aligns with common MCC and control cabinet configurations, delivering faster commissioning and a clearer path to ROI via improved uptime and safer operations.
