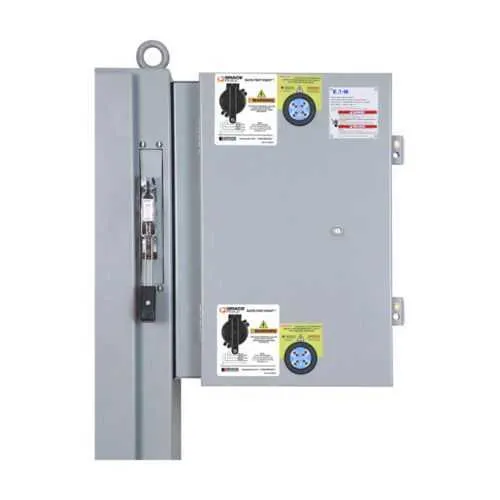

Eaton OLI365FDJA-00VP Line Isolation Switch - UL Listed
Part Number: OLI365FDJA-00VP
Quick Summary
OLI365FDJA-00VP is Eaton's OEM line isolation switch designed to safely sectionalize power in industrial control panels. It helps maintenance teams isolate feeders quickly, reducing exposure to live circuits during routine servicing. The unit is UL Listed and installed in tough enclosures, with a NEMA 12/3R rating for reliable operation in dusty, damp environments. Its galvanized steel enclosure and three-pole, three-wire configuration provide robust protection and straightforward wiring in medium-voltage applications. This solution supports up to 600 V and 400 A, with Class J fusible protection for streamlined fuse replacement. For engineers, it means safer, faster maintenance cycles and improved overall equipment reliability, while aligning with common industrial standards and practices.
Product Information
Extended Description
OLI365FDJA-00VP Eaton: Eaton OEM line isolation switch, Voltage portal, 400 A, NEMA 12/3R, Galvanized steel, Class J, Fusible without neutral, Three-pole, Three-wire, 600 V, (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton oem line isolation switch
Catalog Number
OLI365FDJA-00VP
UPC
786676034692
Product Length/Depth
50.15 in
Product Height
9.24 in
Product Width
21.3 in
Product Weight
100 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
OEM line isolation switch
Amperage Rating
400A
Fuse class provision
Class J fusible
Voltage rating
600 V
Special features
Voltage portal
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
OEM Line Isolation Switch (OLI)
Eaton Specification Sheet - OLI365FDJA-00VP
Feature → Business Impact → Application: 400A amperage rating enables handling large feeders with minimal voltage drop and heat buildup, reducing unplanned downtime on production lines and improving overall system reliability for heavy industry applications. This supports fast, safe switching in industrial power distribution and enhances response times during maintenance. Feature → Business Impact → Application: 600V voltage rating allows use across standard medium-voltage panels, enabling a single, versatile solution for multiple feeder configurations and simplifying procurement for electrical rooms and machine zones. Feature → Business Impact → Application: NEMA 12, NEMA 3R enclosure combined with galvanized steel provides dust, moisture, and corrosion resistance, extending service life in harsh plant environments while simplifying installation in both indoor and outdoor electrical rooms. Feature → Business Impact → Application: Fusible without neutral reduces wiring complexity and stock requirements, enabling faster fuse sourcing and replacement for Class J protection in panel feeders across manufacturing lines. Feature → Business Impact → Application: Three-pole, three-wire configuration ensures compatibility with common three-phase, three-wire service feeders, streamlining panel design and reducing installation errors in control cabinets. Feature → Business Impact → Application: Voltage portal feature enhances on-site testing safety by allowing voltage verification without opening the enclosure, improving maintenance efficiency and worker safety in live environments. Feature → Business Impact → Application: UL Listed certification provides a clear path to compliance for electrical installations, supporting audits and reducing risk in regulated facilities while aligning with procurement standards for OEM line isolation switches.
Get a Quick Quote for a Eaton OLI365FDJA-00VP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI365FDJA-00VP?
Enquire Now
FAQs
The switch is a three-pole, three-wire Fusible without neutral device designed for 400A and 600V service. It fits standard panel spaces, with a footprint approximating 50.15 in long, 21.3 in wide, and 9.24 in high, and supports conductor sizes such as (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Cu/Al per rating, enabling straightforward integration into existing switchgear and feeder layouts.
Key ratings include 400A amperage, 600V voltage rating, three-pole, three-wire configuration, fusible without neutral, and Class J fuse provision. These specs support reliable isolation and fuse protection for medium‑voltage feeders in industrial environments.
Yes. It employs a galvanized steel enclosure rated for NEMA 12 and NEMA 3R, offering protection against dust, moisture, and some weather exposure. This makes it well suited for indoor electrical rooms and moderately exposed outdoor installations where a durable, code-compliant isolator is needed.
The unit is UL Listed, ensuring conformity with recognized safety standards for electrical equipment. While CE or IP-specific ratings are not listed in the data, the UL Listing combined with the NEMA-rated enclosure provides a strong compliance profile for many North American industrial installations and related procurement requirements.
Maintenance benefits include a voltage portal for safe on-site testing and faster fuse access with Class J fusible protection. The robust 400A/600V rating supports longer service intervals for high‑demand feeders, reducing downtime and helping justify the investment through improved equipment reliability and streamlined spares management.
