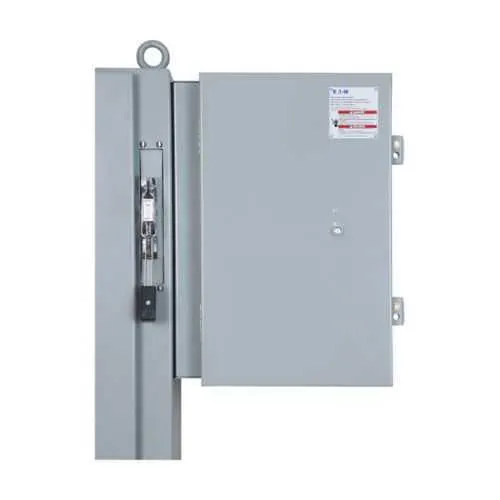

Eaton OLI365FDJX-0000 OEM line isolation switch - UL Listed
Part Number: OLI365FDJX-0000
Quick Summary
Eaton OEM line isolation switch is a high-current disconnect device designed for safe isolation in industrial electrical panels. Maintenance teams often wrestle with bulky, hard-to-service disconnects that prolong downtime and complicate compliant wiring. This unit carries UL Listed protection and rugged enclosure ratings to support reliable operation in demanding environments, while its 400 A, 600 V capability accommodates large feeders. Built for panel builders and OEMs, it delivers straightforward installation and long-term serviceability. The combination of a three-pole design, Class J fusible configuration, and robust galvanized steel enclosure helps reduce lifecycle costs and accelerate commissioning in industrial automation applications.
Product Information
Extended Description
OLI365FDJX-0000 Eaton: Eaton OEM line isolation switch, 400 A, NEMA 12/3R, Galvanized steel, Class J fusible, Fusible without neutral, Three-pole, Three-wire, 600 V, (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton oem line isolation switch
Catalog Number
OLI365FDJX-0000
UPC
786676034678
Product Length/Depth
50.15 in
Product Height
9.24 in
Product Width
21.3 in
Product Weight
100 lb
Certifications
UL Listed
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
OEM line isolation switch
Amperage Rating
400A
Fuse class provision
Class J fusible
Voltage rating
600 V
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - OLI365FDJX-0000
Feature: 400 A amperage rating with 600 V voltage rating → Business Impact: Supports large feeders and high-demand machines, reducing the need for downstream protection upgrades during system expansion; Application: Main service disconnects in manufacturing lines. Feature: Three-pole, three-wire arrangement → Business Impact: Ensures synchronized switching across all phases, improving safety and compliance in multi-phase power distribution; Application: Three-phase panel assemblies. Feature: Fusible without neutral, Class J fusible → Business Impact: Simplifies wiring and fault isolation while meeting established protection classes; Application: Industrial control panels requiring fast, reliable fault isolation. Feature: Enclosure rated NEMA 12 and NEMA 3R with galvanized steel → Business Impact: Ensures durability in indoor and outdoor environments, reducing enclosure damage risk; Application: Outdoor panels and damp environments. Feature: Conductor sizing support (2/0–300 kcmil, or 1/0–750 kcmil Cu/Al) → Business Impact: Flexible integration with existing feeder layouts, lowering conversion costs; Application: Heavy-duty power distribution feeds. Feature: Weight and dimensions (50.15 in L, 21.3 in W, 9.24 in H, 100 lb) → Business Impact: Predictable footprint for cabinet planning and installation crews; Application: OEM line installations. Feature: UL Listed certification → Business Impact: Demonstrates compliance with safety standards, easing procurement and inspection processes; Application: Regulatory approvals and quality assurance. Compatibility and installation advantages: OEM line isolation switch design supports straightforward panel integration, fast wiring, and compatibility with standard bus and terminal configurations, while the galvanized enclosure enhances corrosion resistance for longer service life. Industry context: This solution aligns with manufacturing and process environments where uptime, safety, and regulatory compliance drive total cost of ownership reductions.
Get a Quick Quote for a Eaton OLI365FDJX-0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OLI365FDJX-0000?
Enquire Now
FAQs
Install the three-pole disconnect in a compliant enclosure that matches NEMA 12 or NEMA 3R ratings. Connect the three wires to the appropriate lugs, verify Class J fusible compatibility, and ensure the neutral conductor remains unused for fusible-only operation. Follow Eaton installation guidelines and local electrical codes to achieve proper clearance, torque, and safety practices.
Yes. The switch supports Cu and Al conductors with flexibility in conductor sizing: (2) #1/0 to (2) 300 kcmil, or (1) #1/0 to (1) 750 kcmil. This enables versatile wiring configurations for high-current feeders and aligns with typical industrial panel layouts, reducing the need for conductor adapters or rewiring work.
The OLI365FDJX-0000 is UL Listed, which confirms compliance with recognized safety standards. It is supplied in a galvanised steel enclosure rated for NEMA 12 and NEMA 3R environments, providing indoor and outdoor suitability and helping protect against dust, dirt, and moisture in typical industrial settings.
Ideal for line isolation in large machine feeders, control panels, and process lines where high current and robust protection are required. Its three-pole design, Class J fusible configuration, and rugged construction make it well-suited for OEM panel assemblies and retrofit projects aiming to improve safety, uptime, and fault isolation efficiency.
This unit measures 50.15 inches in length, 21.3 inches in width, and 9.24 inches in height, with a weight of approximately 100 pounds. When planning installations, allocate space for a compact yet heavy-duty disconnect, and ensure mounting provisions accommodate the 100 lb unit along with required clearances for servicing.
