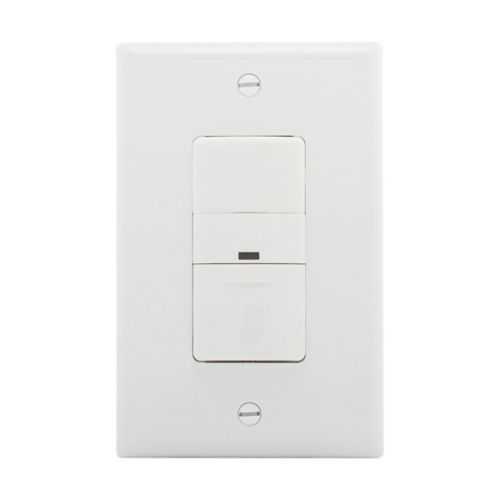

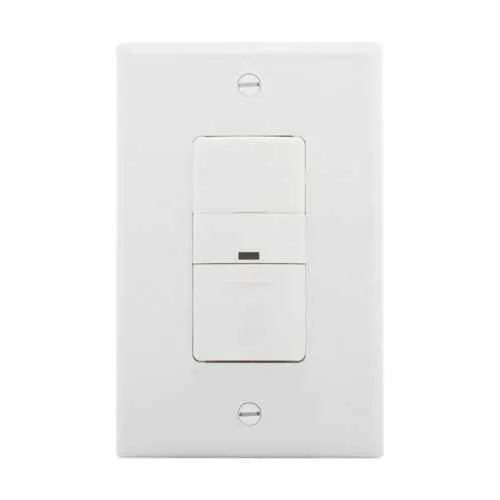

Eaton OS306U-W Occupancy Sensor Switch - NOM cULus Listed
Part Number: OS306U-W
Quick Summary
Eaton occupancy sensor switch automates lighting in commercial spaces, delivering hands-free control and energy savings. Retrofit projects often stall on wiring complexity or neutral requirements, but the OS306U-W eliminates that hurdle with a no-neutral design. It is NOM and cULus Listed, reinforcing safety and regulatory compliance in real-world deployments. The flush-mount form and 120 V operation simplify installation in existing wall boxes, while a 450 sq ft coverage range supports typical office, classroom, and retail layouts. With 1-pole and 3-way configurations, it scales to growing projects and alt-control schemes, helping facilities meet energy targets without compromising usability or reliability. The device's 600 W load rating ensures compatibility with a wide variety of lighting technologies, including LED and CFL lamps.
Product Information
Extended Description
OS306U-W Eaton: Eaton occupancy sensor switch, No neutral required, Flush, 120V, Wire leads, Maintained closure, White, Incand, MLV, ELV, Flrsnt, CFL, LED, halo, 1-pole, 3-way, 1-phase, 450 sq ft, Occupancy, 600W 722233
Product Name
Eaton occupancy sensor switch
Catalog Number
OS306U-W
UPC
032664722233
Product Length/Depth
2.8 in
Product Height
5 in
Product Width
3.3 in
Product Weight
0.001 lb
Certifications
NOM cULus Listed
Special features
No neutral required
Type
Occupancy sensor switch
Voltage rating
120 V
Number Of Poles
Single-pole
Phase
Single-phase
Power consumption
600 W
Wiring method
Wire leads
Sensor type
Occupancy
Mounting method
Flush
Closure type
Maintained
Load type
MLV FLR LED CFL HAL INC ELV
Number of ways
Three-way
Range
450 sq ft
Color
White
Feature: No neutral required. Benefit: Simplifies wiring and reduces retrofit costs by eliminating neutral conductor requirements, enabling faster field installs in existing wall boxes. Application: suitable for offices, schools, and retail spaces where neutral wiring is unavailable or impractical. Feature: Flush mounting. Benefit: Preserves wall aesthetics and promotes code compliance in retrofit and new-build projects. Application: ideal for switch boxes in hallways, classrooms, and production corridors where a clean, low-profile look matters. Feature: 120 V single‑phase, 600 W load. Benefit: Supports common lighting loads while providing dependable performance and energy management. Application: controls LED, CFL, incandescent, and ELV/MLV loads across general lighting circuits. Feature: Broad load compatibility (MLV, FLR, LED, CFL, HAL, INC, ELV). Benefit: Reduces stocking and maintenance complexity, ensuring a single device covers multiple lamp types. Application: mixed-lam deployments and facilities with evolving lighting inventories. Feature: 1-pole and 3-way operation; Range 450 sq ft; Occupancy sensing. Benefit: Flexible control layouts and reliable occupancy sensing over typical room sizes, supporting scalable configurations. Application: conference rooms, lobbies, and open-plan spaces. Feature: Wire leads and no neutral design. Benefit: Quick, reliable field connections with minimal wiring steps, accelerating project timelines. Application: retrofit and new-construction projects where wiring access is limited.
Get a Quick Quote for a Eaton OS306U-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OS306U-W?
Enquire Now
FAQs
The OS306U-W is designed for no-neutral operation. Follow the included wiring diagram, connect the two wire leads to line and load per the selected configuration, and cap any unused conductors. Ensure the box has a proper line and load path, and adhere to electrical codes. This approach reduces install time and wiring changes in retrofit environments.
The device supports multiple lamp types, including MLV, FLR, LED, CFL, HAL, INC, and ELV, with a 600 W maximum load. Verify compatibility with your specific fixtures and drivers, especially LED and CFL drivers, to ensure stable operation and avoid nuisance tripping or flicker.
Yes, the OS306U-W supports both 1-pole and 3-way configurations. For multi-switch control, pair it with compatible companion switches and follow the manufacturer wiring diagrams. This provides flexible control across larger rooms while preserving occupancy sensing functionality.
The OS306U-W is NOM certified and cULus Listed, signaling compliance with relevant safety and electrical standards. These certifications support use in many commercial installations and can simplify regulatory approvals during site audits.
Expect energy savings from automatic lighting control in unoccupied periods, contributing to faster payback. Maintenance needs are low due to solid-state sensors and long service life. The no-neutral design also reduces wiring changes during upgrades, further enhancing lifecycle value in corporate facilities.
