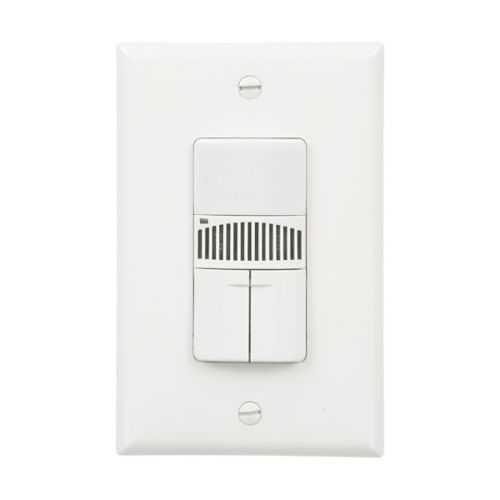

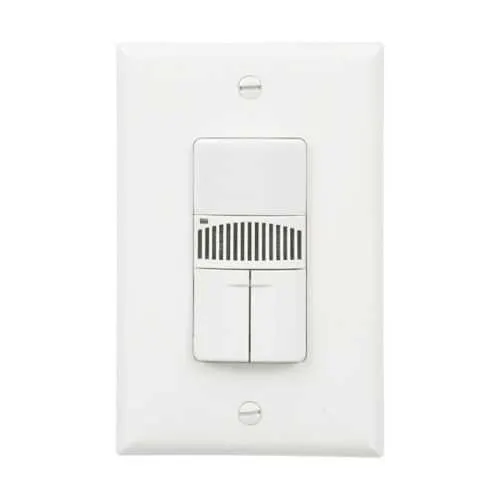

Eaton OSD10DN-A Occupancy Sensor Switch - NOM cULus Listed
Part Number: OSD10DN-A
Quick Summary
The Eaton occupancy sensor switch OSD10DN-A automates lighting in offices and hallways, improving energy use without manual switches. However, facilities teams often battle wasted energy and increased maintenance from lights left on or forgotten. This device carries NOM and cULus Listed certifications to support code-compliant installations in commercial spaces, simplifying approvals and reducing risk. With 120/277 V operation and a compact flush mount, it delivers reliable control while enabling downstream integration with broader building automation strategies. By combining dual tech sensing with a maintained, dual-switch design, it supports cost-effective retrofits and ongoing operational efficiency, making it a practical choice for modern facilities seeking measurable energy and maintenance savings.
Product Information
Extended Description
OSD10DN-A Eaton: Occupancy Sensor Dual Switch, Maintained, Incandescent, MLV, ELV, fluorescent, halogen, electrical motor loads, Flush, Single-pole, Single-phase, 1000 sq ft coverage, Dual tech motion sensor with dual switch, Sensor, 120/277 Vac, 80 717239
Product Name
Eaton occupancy sensor switch
Catalog Number
OSD10DN-A
UPC
032664717239
Product Length/Depth
3 in
Product Height
5.13 in
Product Width
3.3 in
Product Weight
0.496 lb
Certifications
NOM cULus Listed
Special features
Dual tech motion sensor with dual switch
Type
Occupancy sensor switch
Voltage rating
120/277 V
Number Of Poles
Single-pole
Phase
Single-phase
Power consumption
800 W (INC/HAL at 120 V) 2200 W (FLR at 277 V) 1200 W (FLR at 120 V)
Wiring method
Wire leads
Sensor type
Occupancy
Mounting method
Flush
Closure type
Maintained
Load type
INC HAL MLV Electrical motor loads ELV FLR
Number of ways
Three-way
Relay
Dual
Range
1000 sq ft
Color
Almond
Feature: Dual tech motion sensor with dual switch enables accurate occupancy detection and independent control of loads. Business Impact: Reduces waste by ensuring lights run only when needed, cutting energy costs in mid to large spaces. Application: Ideal for offices, corridors, and classrooms where precise detection and manual override are beneficial. Feature: Wide voltage compatibility and load support (120/277 V; INC, HAL, MLV, ELV, FLR) ensures compatibility with a range of lighting systems. Business Impact: Simplifies retrofits and consolidates control for mixed fixtures, lowering installation time and costs. Application: Retrofit projects in mixed-laminate environments or multi-technology facilities. Feature: Flush mounting and wire-lead wiring method streamline installation. Business Impact: Faster deployments with minimal wall disruption and secure, durable connections. Application: New constructions and renovations in commercial spaces with standard electrical boxes. Feature: 3-way capable with maintained closure and 1000 sq ft range supports larger open areas. Business Impact: Extends sensing coverage while preserving user control, improving occupant comfort and compliance. Application: Lobbies, open-plan offices, and retail areas. Feature: NOM cULus Listed certification ensures code compliance and safety. Business Impact: Eases procurement and inspection processes, reducing project risk. Application: Commercial building installations requiring recognized electrical standards.
Get a Quick Quote for a Eaton OSD10DN-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OSD10DN-A?
Enquire Now
FAQs
Power off the circuit, identify line and load conductors, and connect them to the OSD10DN-A's wire leads per the wiring diagram. Choose single-pole or three-way configuration as required, then mount flush in the wall box. Ensure proper grounding and verify all connections before restoring power to test operation.
The device supports INC, HAL, MLV, ELV, and FLR loads. Wattage depends on voltage: 800 W for INC/HAL at 120 V, 1200 W for FLR at 120 V, and up to 2200 W for FLR at 277 V. This makes it suitable for a wide range of lighting technologies and retrofit scenarios.
Yes. The flush-mount design and wire-lead wiring method simplify retrofits into standard wall boxes. Its single-pole and three-way compatibility supports replacing legacy switches without extensive rewiring, reducing installation time and minimizing wall disruption during upgrades.
The OSD10DN-A is NOM cULus Listed, which signals conformance to recognized electrical standards for safety and performance. This eases site approvals, supports code-compliant installations, and provides assurance for facility managers during audits and procurement.
By combining dual tech sensing with maintained control and up to 1000 sq ft coverage, it minimizes unnecessary lighting, lowers energy bills, and reduces maintenance frequency. Its ease of installation and broad load compatibility also shortens project timelines and improves return-on-investment for building optimization.
