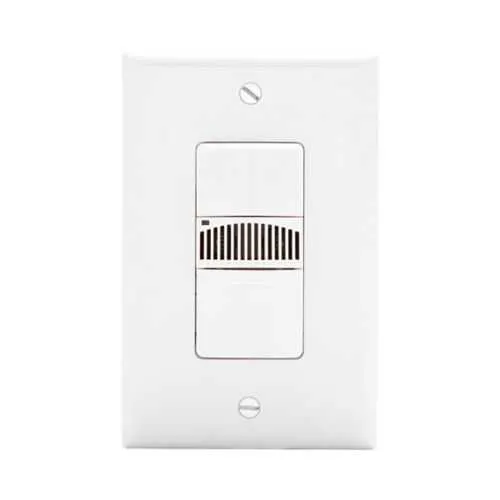

Eaton OSD10N-W Occupancy Sensor Switch - NOM cULus Listed
Part Number: OSD10N-W
Quick Summary
Eaton OSD10N-W occupancy sensor switch delivers hands-free lighting control for commercial and office spaces. Facility teams often struggle with energy waste and inconsistent manual switching in hallways and work areas, which this dual-tech sensor helps resolve. The device carries NOM and cULus Listed certifications, ensuring regulatory compliance across North American installations. With flush mounting and wire-lead wiring, it offers a reliable, install-friendly solution that supports 120/277 V circuits and both single-pole and 3-way configurations, aligning with standard automation and control system projects for better ROI.
Product Information
Extended Description
OSD10N-W Eaton: Eaton occupancy sensor switch, Dual tech motion, Flush, 120/277V, Wire lead, White, Inc, MLV, ELV, Flr, halo, Elec mtr lds, 1-pole, 3-way, 1-ph, 1000 sq ft, 2-rly, 800W (Inc/hal @120V), 1200W (Flr @120V), 2200W (Flr @277V) 717369
Product Name
Eaton occupancy sensor switch
Catalog Number
OSD10N-W
UPC
032664717369
Product Length/Depth
3 in
Product Height
5.13 in
Product Width
3.3 in
Product Weight
50.738 lb
Certifications
NOM cULus Listed
Special features
Dual tech motion sensor
Type
Occupancy sensor switch
Voltage rating
120/277 V
Number Of Poles
Single-pole
Phase
Single-phase
Power consumption
2200 W (FLR at 277 V) 1200 W (FLR at 120 V) 800 W (INC/HAL at 120 V)
Wiring method
Wire leads
Sensor type
Occupancy
Mounting method
Flush
Closure type
Maintained
Load type
MLV ELV INC Electrical motor loads HAL FLR
Number of ways
Three-way
Relay
Single
Range
1000 sq ft
Color
White
Feature → Business Impact → Application: The dual-tech motion sensor delivers accurate occupancy detection, reducing false on/off events and driving measurable energy savings for lighting systems in commercial spaces. Application: Ideal for hallways, offices, and conference areas where consistent occupancy sensing improves comfort and reduces operating costs. Feature → Business Impact → Application: 120/277 V compatibility supports a wide range of lighting loads, enabling seamless integration into existing circuits without costly rewiring. Application: Suitable for retrofit projects and new builds in industrial and office settings. Feature → Business Impact → Application: 800 W incandescent/halogen, 1200 W fluorescent at 120 V, and 2200 W fluorescent at 277 V load ratings provide flexibility across MLV, ELV, INC, HAL, and FLR loads. Application: Supports diverse lighting strategies for energy code compliance. Feature → Business Impact → Application: Wire-lead wiring and flush mounting simplify installation, reducing labor time and box fill concerns. Application: Fast, reliable mounting in walls or ceilings for clean, unobtrusive integration. Feature → Business Impact → Application: 1-pole and 3-way operation enables versatile control schemes, including multi-point switching in larger spaces. Application: Multizone lighting control in offices and classrooms. Feature → Business Impact → Application: Maintained closure type ensures the sensor keeps lights on as needed for safety and task lighting in corridors and stairwells. Application: Occupancy-based lighting in high-traffic areas with predictable usage patterns.
Get a Quick Quote for a Eaton OSD10N-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OSD10N-W?
Enquire Now
FAQs
The OSD10N-W supports both 120 V and 277 V circuits and provides flexible control through 1-pole and 3-way configurations. Its wiring leads simplify connection in standard electrical boxes, enabling easy upgrades in offices, classrooms, or corridors without major rewiring.
For flush-mount installation, ensure the device is mounted in an appropriate enclosure or wall cavity with sufficient depth for wire leads. Verify box fill, maintain clearances around the sensor, and follow manufacturer wiring diagrams. The OSD10N-W is designed for straightforward integration in new builds or retrofits.
The sensor supports MLV, ELV, INC, HAL, and FLR loads. It provides 800 W (Inc/Hal at 120 V), 1200 W (FLR at 120 V), and 2200 W (FLR at 277 V), allowing flexible lighting control across a range of commercial luminaires while maintaining energy efficiency and performance.
The OSD10N-W carries NOM and cULus Listed certifications, indicating compliance with North American electrical codes and Mexican standards. These certifications help simplify approvals for commercial projects and ensure safe, code-compliant operation in appropriate environments.
By reducing unnecessary lighting usage through reliable occupancy sensing, facilities can achieve lower energy bills and reduced maintenance cycles for lighting systems. The dual‑tech sensing provides robust performance, supporting longer lamp life and predictable operation in busy spaces, contributing to a favorable return on investment over time.
