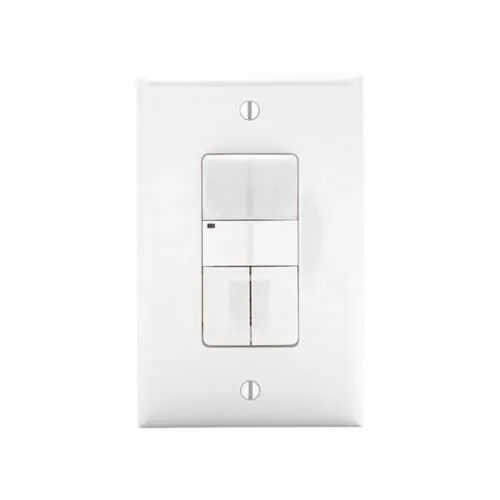

Eaton OSP10D-A Occupancy Sensor Switch - cULus Listed
Part Number: OSP10D-A
Quick Summary
Eaton OSP10D-A occupancy sensor switch automatically controls lighting for commercial spaces, reducing energy use in hallways and offices. Manual lighting control wastes energy and drives maintenance costs in high-traffic environments. This device carries cULus Listed NOM safety certifications, reinforcing regulatory compliance for North American installations, while meeting reliability demands across lighting schemes. Designed for flush-mount installations in up to 1000 sq ft areas, it supports 120/277 VAC loads and a dual-switch configuration for convenient, scalable control in offices, corridors, and classrooms. The sensor's maintained operation ensures lights stay on when needed, reducing switch cycles and downtime. The integrated occupancy sensing helps facilities meet energy codes and improve occupant comfort.
Product Information
Extended Description
OSP10D-A Eaton: Occupancy Sensor Dual Switch, Maintained, Incandescent, MLV, ELV, fluorescent, halogen, electrical motor loads, Flush, Single-pole, Single-phase, 1000 sq ft coverage, Dual switch , Sensor, 120/277 Vac, 800W (Incandescent/halogen at 717512
Product Name
Eaton occupancy sensor switch
Catalog Number
OSP10D-A
UPC
032664717512
Product Length/Depth
3 in
Product Height
5.13 in
Product Width
3.3 in
Product Weight
0.496 lb
Certifications
cULus Listed NOM
Special features
Dual switch
Type
Occupancy sensor switch
Voltage rating
120/277 V
Number Of Poles
Single-pole
Phase
Single-phase
Power consumption
2200 W (FLR at 277 V) 1200 W (FLR at 120 V) 800 W (INC/HAL at 120 V)
Wiring method
Wire leads
Sensor type
Occupancy
Mounting method
Flush
Closure type
Maintained
Load type
ELV FLR Electrical motor loads INC HAL MLV
Number of ways
Three-way
Relay
Dual
Range
1000 sq ft
Color
Almond
Occupancy sensing with dual relays provides selective control for multiple loads while maintaining illumination when needed. That translates to energy savings and reduced wear on lamps and ballasts. Use case includes corridors, lobbies, and classrooms where occupancy is intermittent. Flush-mount design simplifies retrofits, enabling quick installations in standard wall boxes and reducing disturbance to aesthetics and ceiling space—saving labor and minimizing downtime during upgrades. Wide load compatibility supports INC, HAL, MLV, ELV, and FLR loads on 120/277 VAC, including fluorescent and LED drivers, which translates to broad applicability across office suites and retail spaces without additional equipment. Three-way operation and dual-switch capability enable flexible control from multiple locations or zones, delivering consistent lighting behavior in conference rooms and open-plan offices while maintaining a simple wiring approach (wire leads). Certification and safety focus reduces compliance risk; cULus Listed NOM certification aligns with North American electrical codes, empowering safer retrofits and longer fixture life, while the almond color helps blending with standard décor. Overall, this device offers installation advantages, predictable maintenance intervals, and reliable performance in modern commercial lighting systems.
Get a Quick Quote for a Eaton OSP10D-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton OSP10D-A?
Enquire Now
FAQs
The OSP10D-A is a flush-mounted occupancy sensor switch designed for single-pole 120/277 V circuits. It fits standard wall boxes and is ideal for corridors, offices, classrooms, and retail spaces up to about 1000 square feet. Its wire-lead wiring method simplifies retrofit projects and minimizes wall disruption while delivering reliable automatic lighting control.
The unit supports multiple load types including INC, HAL, MLV, ELV, and FLR, with rated power of up to 800 W at 120 V for incandescent/halogen, 1200 W for FLR at 120 V, and 2200 W for FLR at 277 V. This broad compatibility ensures reliable operation with various ballast and driver configurations common in commercial spaces.
Yes, the OSP10D-A supports three-way wiring, allowing control from multiple locations. This requires coordinating the dual-relay setup and proper wiring of line, load, and traveler conductors, but provides flexible control in larger spaces such as conference areas and open offices without sacrificing performance.
The device is cULus Listed and NOM certified, indicating compliance with key North American safety standards. This reduces regulatory risk during installation and supports safer retrofits in commercial environments where energy management is a priority.
By automating on/off control based on occupancy, the OSP10D-A minimizes wasted lighting and extends lamp life, leading to lower energy bills and reduced maintenance cycles. Its robust construction and compatibility with common commercial ballast types help maximize uptime and predictable performance across facilities.
