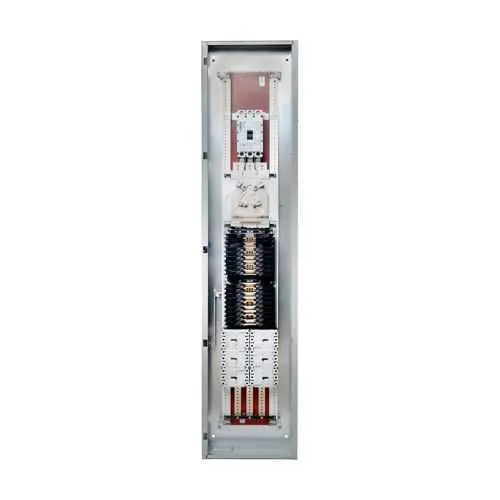

Eaton P3NL500 Panelboard - UL 67
Part Number: P3NL500
Quick Summary
The Eaton P3NL500 Panelboard powers compact branch feeders in industrial control panels. Engineers often battle limited space, dense wiring, and lengthy terminations when wiring modern distributions, making installs error-prone and slow. UL 67 certification and NEMA compliance provide essential safety and reliability, while RoHS-compliant materials support durable, eco-conscious installations. Designed for PRL3X NEUTRAL configurations, it delivers a space-efficient, robust neutral termination that reduces field adjustments and maintenance. With a compact footprint and aluminum bus, the P3NL500 helps engineering teams meet strict panel density targets without sacrificing performance.
Product Information
Extended Description
P3NL500 Eaton: EATON PRL3X BRANCH FEEDER NEUTRAL TERMINAL LUG 4/0-500MCM
Product Name
Eaton Pow-R-Xpress PRL3X panelboard
Catalog Number
P3NL500
UPC
786689824464
Product Length/Depth
2.5 in
Product Height
1.734 in
Product Width
1.375 in
Product Weight
1 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Material
ROH
Type
TERMINAL LUG
Special features
4/0-500MCM
Used with
PRL3X NEUTRAL
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Compact form factor and light weight optimize panel layout and shipping costs. This translates to faster field terminations and reduced labor in tight enclosures, especially in high-volume packaging and process-plant installations. 4/0-500MCM conductor compatibility with a robust terminal lug design ensures secure, low-resistance terminations that cut re-work and downtime in feeder sections. Applications include PRL3X NEUTRAL configurations in mid-size distribution panels. UL 67 listed and NEMA compliant design ensures compliance with electrical codes and safety standards, lowering audit risk and accelerating regulatory approvals. Aluminum bus and ROH material provide corrosion resistance and long service life, reducing maintenance in harsh environments. Designed for PRL3X NEUTRAL, it integrates with Eaton’s Pow-R-Xpress stocking program to improve procurement consistency and lead-time reliability.
Get a Quick Quote for a Eaton P3NL500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P3NL500?
Enquire Now
FAQs
The P3NL500 is designed specifically for PRL3X NEUTRAL configurations and aligns with standard Eaton Pow-R-Xpress panelboard layouts. It accepts 4/0-500MCM conductors and uses a TERMINAL LUG design with aluminum bus, ensuring straightforward mounting, reliable termination, and minimal adaptors or extra hardware required during retrofit or new builds.
Key specs include a 2.5 in depth, 1.734 in height, and 1.375 in width footprint, with a weight of 1 lb. It uses an aluminum bus, supports 4/0-500MCM conductors, and carries UL 67 certification along with NEMA-compliant safety. These characteristics translate to compact space usage, robust termination, and certified reliability for industrial applications.
Yes. The P3NL500 is UL 67 certified and NEMA compliant, making it appropriate for industrial control cabinets and distribution panels that require regulated safety and performance standards. Its aluminum bus and ROH material further enhance durability in demanding environments, helping align installs with regulatory expectations and inspection regimes.
The compact design and 4/0-500MCM termination capability reduce wiring complexity and labor hours during installation. Faster terminations mean shorter commissioning times, while aluminum bus and ROH material offer corrosion resistance and longer service life, lowering maintenance and replacement costs over the panel’s life cycle.
Technical resources include the Pow-R-Xpress brochures and program guides, plus panelboard reference materials. You can access installation guidance and product details via the Eaton documentation library, including the Pow-R-Xpress flyer and the neutral termination references associated with PRL3X configurations.
