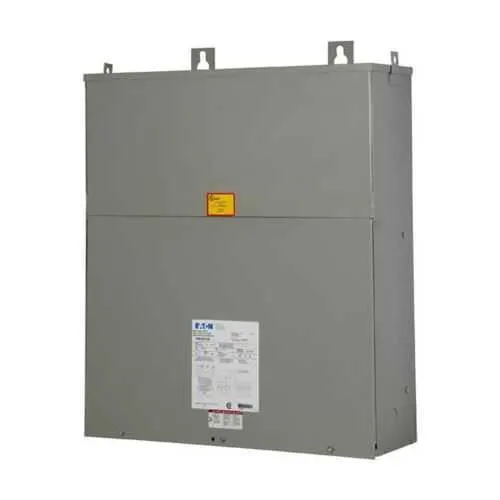

Eaton Mini-Power center P48G11S1526 - NEMA 3R
Part Number: P48G11S1526
Quick Summary
The Eaton Mini-Power center P48G11S1526 is a compact transformer center that delivers reliable power distribution for 15 kVA single-phase systems in industrial facilities. When space is tight and installation time is critical, engineers need a solution that fits standard control rooms while meeting safety standards. This unit carries IEEE Certified, CSA Certified, UL Listed certifications and ANSI compatibility to support compliance in multiple markets. By pairing a wall-mount NEMA 3R enclosure with a robust aluminum coil and a 480 V to 120/240 V output, it reduces wiring complexity and accelerates project timelines, enabling faster commissioning and easier future expansion.
Product Information
Extended Description
P48G11S1526 Eaton: 15 KVA Mini Power Center 1PH 480V-120/240V 26 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S1526
UPC
786680225604
Product Length/Depth
14.5 in
Product Height
43.4 in
Product Width
15.9 in
Product Weight
425 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
IEEE Certified CSA Certified UL Listed ANSI
Coil material
Aluminum
Enclosure
NEMA 3R
Frame
287
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G11H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
NEMA 3R
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S1526
15 kVA single-phase transformer with a 480 V primary and 120/240 V secondary provides dependable, isolated power for control panels and machine feeders. The business impact is clearer voltage delivery to drives, relays, and sensing circuits, which translates into reduced nuisance trips and lower maintenance costs. In practice, this enables scalable automation topologies without costly infrastructure upgrades. Enclosure and installation flexibility: a NEMA 3R enclosure combined with wall-mountable design supports indoor and outdoor installations while saving floor space in crowded electrical rooms. The compact footprint—14.5 in depth, 43.4 in height, and 15.9 in width—simplifies panel layout and speeds commissioning and future expansion. Durability and performance: aluminum coil, 180 °C insulation, and a robust 425 lb frame provide resilience in harsh environments, delivering stable output under load and protecting sensitive equipment from voltage fluctuations. Voltage regulation options include two primary taps at -5% FCBN to compensate for feeder voltage dips common in older plants, reducing transformer loading and energy waste. Installation and compatibility: M48G11H wiring connection supports straightforward panel integration, while standard documentation and certifications simplify procurement and cross-border deployments for automated production lines in manufacturing and process industries.
