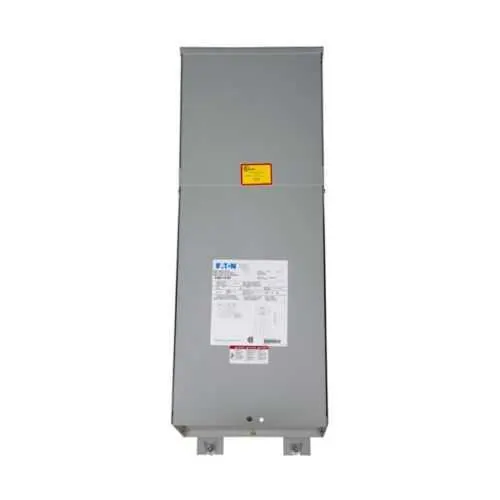

Eaton P48G11S1526H Mini-Power Center - UL Listed, NEMA 3R
Part Number: P48G11S1526H
Quick Summary
Eaton Mini-Power Center delivers compact power distribution and isolation for commercial and light-industrial panels. Engineers often struggle with limited mounting space and complex wiring when upgrading or expanding transformer-based distributions. This unit carries UL Listed, IEEE Certified, and CSA Certified assurances, with ANSI recognition supporting robust compliance across markets. With a 15 kVA rating, 480 V primary and 120/240 V secondary, it enables space-efficient, code-compliant installations that reduce installation time and lifecycle costs, while offering a wall-mount design, 26-space capacity, and adaptable tap options for evolving electrical distributions in demanding environments.
Product Information
Extended Description
P48G11S1526H Eaton: 15 kVA Mini-Power Center 1PH 480-120/240, aluminum, 26 Spaces, HFD Primary Main CB,NEMA 3R
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S1526H
UPC
786680229169
Product Length/Depth
14.63 in
Product Height
43.88 in
Product Width
16.4 in
Product Weight
479 lb
Compliances
NAFTA
Certifications
UL Listed IEEE Certified CSA Certified ANSI
Coil material
Aluminum
Enclosure
NEMA 3R
Frame
287
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G11H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Weathershield
Indoor-Outdoor
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S1526H
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 15 kVA single-phase transformer rating → Business Impact: Delivers sufficient reserve for moderate peak loads while maintaining compact form factor → Application: Ideal for small to mid-size industrial control panels where space is at a premium. Feature: 480 V primary, 120/240 V secondary → Business Impact: Simplifies downstream equipment compatibility and reduces cabling complexity → Application: Compatible with common building distributions and motor loads. Feature: NEMA 3R indoor-outdoor enclosure → Business Impact: Enables reliable outdoor or semi-exposed installations with weather resistance → Application: Useful in perimeter equipment rooms or exterior riser applications. Feature: Aluminum coil material and 180 °C insulation → Business Impact: Improves durability and thermal performance for long service life → Application: Harsh environments and continuous operation scenarios. Feature: 26 spaces, HFD primary main CB, 2-tap -5% FCBN → Business Impact: Streamlines protection coordination and future expansion without accommodating extra cabinets → Application: Ready for phased expansion in growing facilities. Feature: Wall-mount mounting, M48G11H wiring → Business Impact: Eases installation and maintenance access, reduces wiring errors → Application: Retrofit projects and space-constrained data centers or manufacturing floors. Feature: Compliance and certifications (UL, IEEE, CSA, ANSI) → Business Impact: Accelerates regulatory approvals and audits → Application: Projects requiring formal certification trail. These attributes collectively support measurable efficiency gains, improved uptime, and lower lifecycle costs in industrial power distribution.
Get a Quick Quote for a Eaton P48G11S1526H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S1526H?
Enquire Now
FAQs
Yes. The P48G11S1526H is a single-phase transformer with a 480 V primary and 120/240 V secondary, designed for wall-mount installations. It uses M48G11H wiring and includes an HFD primary main circuit breaker, making integration straightforward in space-constrained panels while maintaining code-compliant distribution.
The unit provides 15 kVA at 60 Hz, with a 480 V primary and 120/240 V secondary. It is UL Listed, IEEE Certified, CSA Certified, and ANSI compliant, with a 115 °C rise rating and 26 spaces. Protection is enhanced by the main CB and robust enclosure (NEMA 3R) for reliable operation in varied conditions.
Ideal for commercial and light-industrial environments where space is limited, such as manufacturing lines, building automation, data/telecom closets, and service panels. Its wall-mount form, 26 spaces, and 15 kVA rating support scalable power distribution for compact control cabinets and distributed loads.
The unit carries UL Listed, IEEE Certified, CSA Certified, and ANSI certifications, with NAFTA compliance and a NEMA 3R enclosure. This combination supports regulatory approvals, safer installations, and smoother audits in multinational projects or regulated facilities.
With aluminum coil, 180 °C insulation, and a 115 °C rise rating, the center is designed for durable, long-life service. The 26-space capacity plus a robust main breaker reduces expansion costs, while the compact footprint minimizes space costs and downtime, delivering a favorable total cost of ownership over time.
