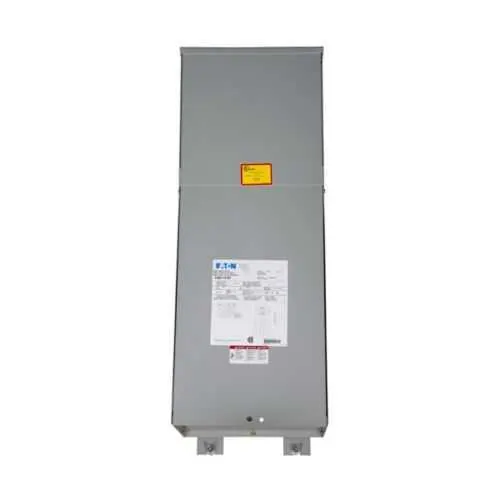

Eaton P48G11S1526HCUS6 Mini-Power Center - 15 kVA UL Listed
Part Number: P48G11S1526HCUS6
Quick Summary
Eaton Mini-Power Center delivers compact transformer-to-branch power distribution for industrial facilities, enabling reliable, space-efficient electrical layouts. Too often engineers fight cluttered panels, limited branch capacity, and extended installation timelines that increase risk and total cost. This unit is certified for IEEE, UL, and CSA/ANSI, ensuring robust safety and regulatory compliance in demanding environments. With a 15 kVA rating, copper windings, and a NEMA 3R stainless enclosure, it provides durable service in both indoor and sheltered outdoor spaces. The wall-mount design and 26 branch spaces simplify wiring and future expansion, while the HFD primary main breaker helps protect critical loads. Secondary outputs are 120/240 V for versatile equipment compatibility and fast integration into existing systems.
Product Information
Extended Description
P48G11S1526HCUS6 Eaton: 15 kVA Mini Power Center 1PH 480-120/240, 80C Rise, Copper Windings, NEMA 3R 316 Stainless steel enclosure, 26 branch spaces, HFD Primary Main breaker
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S1526HCUS6
UPC
786680235276
Product Length/Depth
14.63 in
Product Height
39.75 in
Product Width
16.4 in
Product Weight
485 lb
Compliances
NAFTA
Certifications
IEEE Certified UL Listed ANSI CSA Certified
Coil material
Copper
Enclosure
NEMA 3R
Frame
287
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G11H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
HFD primary main
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S1526HCUS6
Feature: 15 kVA single-phase transformer with a 480 V primary and 120/240 V secondary, designed for reliable step-down distribution in industrial and commercial settings. Copper windings maximize conductivity and durability, while the 60 Hz rating aligns with standard American power systems. Business impact: tighter voltage regulation and lower copper loss improve equipment uptime and reduce heat generation in critical loads. Application: well suited to data centers, manufacturing lines, and campus facilities where compact, scalable power is essential. Paragraph two highlights the rugged NEMA 3R enclosure fabricated from stainless steel (316), offering weather resistance for protected outdoor installations; wall-mounting minimizes floor space and simplifies service access, while the dimensions balance visibility and maintenance reach. Business impact: easier retrofit and faster commissioning reduce project timelines and total cost of ownership. Application: OEMs and integrators can deploy in constrained spaces without compromising protection. Paragraph three covers 26 branch spaces for future expansion and the M48G11H wiring connection, delivering scalable distribution with consistent terminations. Business impact: minimizes remodeling and wiring chaos during growth; Application: hospitals, laboratories, and industrial plants needing modular upgrades. Paragraph four focuses on the HFD primary main breaker for enhanced protection and quick fault isolation; Business impact: reduces downtime and maintenance costs by preventing cascading failures. Application: critical load networks with multiple downstream circuits. Paragraph five emphasizes compliance and reliability features including IEEE Certified, UL Listed, ANSI CSA Certified, 60 Hz operation, and 15 kVA rating; Business impact: procurement confidence and regulatory readiness; Installation is streamlined by standardized specifications; Application: regulated facilities and turnkey electrical installations.
Get a Quick Quote for a Eaton P48G11S1526HCUS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S1526HCUS6?
Enquire Now
FAQs
Plan for wall-mount installation with a 39.75 in height and 16.4 in width. Ensure accessible service clearance and proper weight handling of 485 lb. Use the M48G11H wiring connection and verify 14.63 in depth to fit into your cabinet or wall cavity. Consider downstream feeder organization and the 26 branch spaces during layout.
The unit is a 15 kVA single-phase transformer with a 480 V primary and a 120/240 V secondary, designed for 60 Hz operation. Copper windings support efficient power transfer, and there are 26 branch spaces for distribution. An HFD primary main breaker provides protection, with a tap size of 2 at -5% FCBN noted in the spec.
Yes. The NEMA 3R stainless enclosure delivers weather resistance suitable for sheltered outdoor or indoor installations, and the combination of IEEE, UL, and CSA/ANSI certifications supports reliability in demanding data-center and industrial environments. The compact footprint and wall-mount design also aid in data hall or equipment room planning.
The P48G11S1526HCUS6 carries IEEE Certified, UL Listed, ANSI CSA Certified marks, signaling compliance with essential safety, performance, and interoperability standards. These certifications streamline procurement, meet regulatory and insurance requirements, and ensure compatibility with other compliant electrical components in industrial automation and power distribution systems.
With a 15 kVA rating and copper windings, energy losses are minimized, improving efficiency and reducing operating costs over time. The rugged enclosure and primary main breaker reduce maintenance downtime, while the 26 branch spaces support upgrades without major rework. Schedule preventative maintenance on the HFD main breaker and insulation to extend service life.
