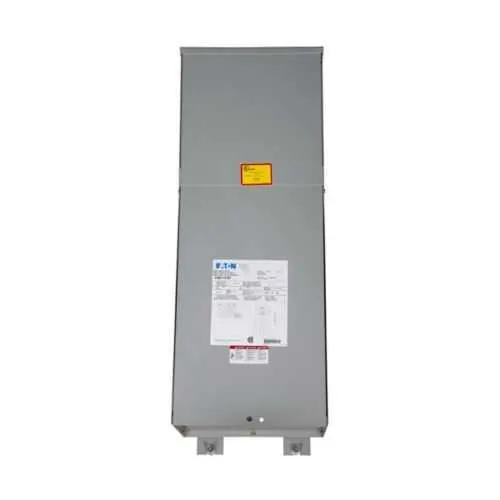

Eaton P48G11S1530HCUB Mini-Power Center - UL Listed
Part Number: P48G11S1530HCUB
Quick Summary
Eaton Mini-Power Center P48G11S1530HCUB delivers compact power distribution for industrial control panels. Users face space constraints and need reliable, code-compliant solutions that install quickly. IEEE Certified, UL Listed and CSA Certified, with ANSI marks, help ensure safety and regulatory compliance across demanding sites. With 15 kVA capacity, 480 V primary and 120/240 V secondary, it supports scalable, energy-efficient panel designs while reducing wiring and maintenance costs. Its copper windings and copper bolt-on interior simplify field terminations, and a NEMA 3R enclosure readiness suits outdoor or harsh indoor environments. In practice, this translates to faster commissioning and lower total cost of ownership for panel builders and end users.
Product Information
Extended Description
P48G11S1530HCUB Eaton: 15 kVA Mini Power Center 1PH 480-120/240, 115C Rise, Copper Windings, Copper bolt-on interior, 30 branch spaces, HFD Primary Main breaker
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S1530HCUB
UPC
786680235191
Product Length/Depth
14.58 in
Product Height
39.76 in
Product Width
20.41 in
Product Weight
579 lb
Compliances
NAFTA
Certifications
IEEE Certified UL Listed CSA Certified ANSI
Coil material
Copper
Enclosure
NEMA 3R
Frame
310
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G11HB
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
HFD primary main
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S1530HCUB
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 15 kVA single-phase transformer with a 480 V primary and 120/240 V secondary, 30 branch spaces, and an HFD primary main breaker. Business Impact: delivers higher load capacity in a compact footprint, improving panel density and safety clearance while simplifying protective coordination. Application: ideal for control panels in manufacturing lines and distribution hubs where space and protection hierarchy matter. Feature: Copper windings with a copper bolt-on interior support robust, low-resistance power transfer and durable terminations; insulation rated to 180 °C. Business Impact: improves efficiency, reduces heat, and extends transformer life, lowering maintenance cycles. Application: harsh industrial environments and high-duty control panels where thermal performance matters. Feature: NEMA 3R enclosure for indoor/outdoor versatility; wall-mount installation; dimensions approx. 14.58 in D × 39.76 in H × 20.41 in W; frame 310; weight ~579 lb. Business Impact: simplifies site planning and accelerates installation, enabling reliable performance in plant rooms and outdoor zones. Application: new builds and retrofits across manufacturing floors and distribution centers. Feature: Certifications including IEEE Certified, UL Listed, CSA Certified, and ANSI. Business Impact: reduces risk for procurement and compliance teams, easing supplier qualification and regulatory alignment. Application: projects with strict safety and performance mandates. Feature: Wiring connection M48G11HB; Tap size 2 at -5% FCBN; 60 Hz operation; 15 kVA rating. Business Impact: supports straightforward field terminations and voltage regulation, improving commissioning speed. Application: panel builders needing predictable tap settings and reliable fault isolation. Feature: Weathershield not required; 30 branch spaces; 1PH 480-120/240 output. Business Impact: lowers total cost of ownership by diminishing weatherproofing needs and enabling flexible layout. Application: compact power centers in versatile environments.
Get a Quick Quote for a Eaton P48G11S1530HCUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S1530HCUB?
Enquire Now
FAQs
This unit is designed for wall-mount installation with a NEMA 3R enclosure, suitable for indoor and outdoor environments. Plan for a clear installation area, provide adequate ventilation, and account for the 30 branch spaces and 579 lb weight. Ensure proper mounting hardware and electrical clearances per local codes to streamline commissioning.
The P48G11S1530HCUB delivers 15 kVA at 60 Hz with a 480 V primary and a 120/240 V secondary. It is a single-phase transformer with copper windings and a copper bolt-on interior, rated for a 180 °C insulation system and protected by an HFD primary main breaker for safe shutdown and protection coordination.
Yes, the enclosure is NEMA 3R-rated, which supports outdoor and harsh indoor environments. While weather protection is not a dedicated WeatherShield, the NEMA 3R rating provides rain and corrosion resistance suitable for many exterior applications when installed correctly with appropriate clearances.
The unit carries IEEE Certified, UL Listed, CSA Certified, and ANSI marks. These certifications facilitate safety compliance, fleet standardization, and regulatory acceptance in many North American industrial settings, simplifying supplier qualification and audit readiness.
Copper windings and a robust HFD primary main breaker reduce electrical losses and increase reliability, lowering maintenance needs and downtime. The compact, wall-mount design saves space and accelerates installation, contributing to lower total cost of ownership and faster project payback in panel-building and distribution roles.
