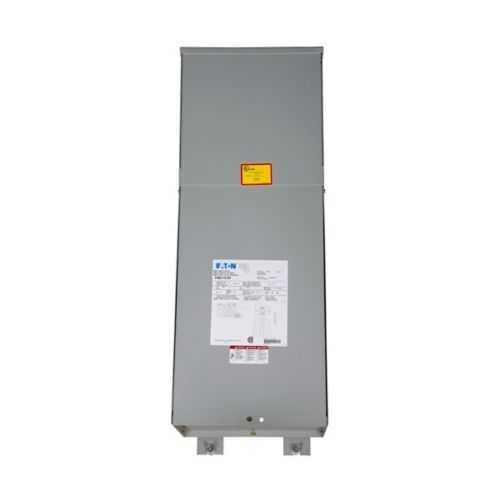

Eaton P48G11S2526HCU Mini-Power Center - UL Listed
Part Number: P48G11S2526HCU
Quick Summary
The Eaton P48G11S2526HCU Mini-Power Center provides reliable 25 kVA single‑phase power distribution for industrial equipment. In tight spaces, you need compact, easy-to-wire gear that meets code and resists exposure. It carries ANSI/IEEE Certified, CSA Certified, and UL Listed certifications with a NEMA 3R enclosure suitable for indoor‑outdoor use. Configured for 480 V primary and 120/240 V secondary, it supports robust control panels and critical loads while offering straightforward maintenance and predictable voltage regulation. Built with copper windings and a rugged cabinet, it delivers dependable performance in demanding environments and helps reduce lifecycle costs through proven reliability.
Product Information
Extended Description
P48G11S2526HCU Eaton: 25 kVA Mini-Power Center 1PH 480-120/240, copper, 26 Spaces, HFD Primary Main CB, NEMA 3R Enclosure
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S2526HCU
UPC
786680229251
Product Length/Depth
14.63 in
Product Height
43.88 in
Product Width
16.4 in
Product Weight
488 lb
Compliances
NAFTA
Certifications
ANSI IEEE Certified CSA Certified UL Listed
Coil material
Copper
Enclosure
NEMA 3R
Frame
287
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G11K
Frequency rating
60 Hz
kVA
25 kVA
Kva Rating
25 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Weathershield
Indoor-Outdoor
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S2526HCU
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 25 kVA single-phase transformer with 480 V primary and 120/240 V secondary operating at 60 Hz. Business Impact: Enables efficient distribution to critical loads with minimal voltage drop, improving equipment uptime. Application: Manufacturing lines, machine tools, and process control panels benefit from stable power delivery. Feature: NEMA 3R enclosure with Indoor-Outdoor protection. Business Impact: Durable protection against weather and dust, reducing enclosure maintenance and downtime. Application: Outdoor installations or mixed indoor/outdoor plant areas. Feature: Copper windings. Business Impact: Higher efficiency, better thermal performance, and longer transformer life, lowering energy and replacement costs. Application: Continuous operations in energy-conscious facilities. Feature: Tap size of 2 at -5% FCBN. Business Impact: Voltage regulation under upstream fluctuations, preserving equipment performance and reducing nuisance trips. Application: Sites with variable utility voltages or long feeder runs. Feature: M48G11K wiring connection. Business Impact: Simplified field wiring and faster installation with reliable termination. Application: New installs and panel upgrades in regulated facilities. Feature: 60 Hz operation and 25 kVA rating with 480 V to 120/240 V conversion. Business Impact: Standardized power for controls and safety circuits, enabling consistent commissioning. Application: Industrial automation projects and distributed power centers. Feature: NEMA ST-20 sound rating and enclosure dimensions (14.63 in D × 16.4 in W × 43.88 in H). Business Impact: Predictable acoustic footprint and a compact footprint suitable for limited spaces. Application: Control rooms and tight machine enclosures. All features are designed to integrate with existing Eaton components and provide predictable ROI through reduced wiring complexity and improved reliability.
Get a Quick Quote for a Eaton P48G11S2526HCU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S2526HCU?
Enquire Now
FAQs
Yes. The P48G11S2526HCU is designed for 480 V primary input and 120/240 V secondary outputs in a single-phase configuration. It uses a copper-wound transformer with a 25 kVA rating and a 60 Hz frequency, and features a M48G11K wiring connection to simplify integration with standard Eaton distribution panels.
Key specs include 25 kVA rating, 60 Hz operation, 480 V primary, 120/240 V secondary, and a copper winding construction. Certifications include ANSI/IEEE Certified, CSA Certified, and UL Listed, with a NAFTA compliance note. The enclosure is NEMA 3R, suitable for indoor-outdoor applications.
Ideal for manufacturing floors, machine control panels, and distribution centers needing reliable 480 V to 120/240 V power with robust enclosure protection. The 25 kVA capacity supports multiple controls and drives, while the NEMA 3R enclosure enables outdoor or mixed indoor/outdoor installation in industrial facilities.
The unit is UL Listed and carries ANSI/IEEE Certification and CSA Certification, reflecting adherence to safety and performance standards. It also complies with NAFTA, and features a NEMA 3R enclosure suitable for indoor-outdoor use, aligning with common international and regional requirements.
Copper windings and a rugged cabinet reduce energy losses and maintenance needs, contributing to lower operating costs over time. The unit's robust enclosure, standardized wiring (M48G11K), and reference Eaton datasheets (spec sheet, warranty policy) support faster installation, fewer field reworks, and predictable ROI for automation projects.
