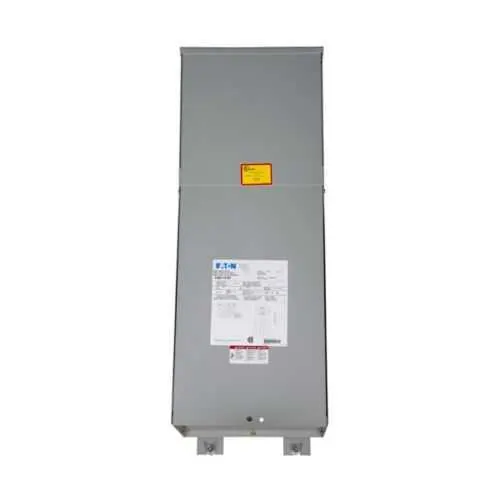

Eaton P48G11S2530HCUB Mini-Power center - UL Listed
Part Number: P48G11S2530HCUB
Quick Summary
Eaton Mini-Power center provides compact power distribution for industrial facilities requiring reliable single-phase 25 kVA capacity. It addresses space constraints, wiring complexity, and accessibility challenges typical of crowded electrical rooms. This unit carries essential certifications to support code compliance and safe operation, including IEEE Certified, CSA Certified, ANSI, and UL Listed marks, helping procurement teams meet regulatory requirements with confidence. By pairing a 25 kVA rating with 1-phase 480-120/240 V capability, it supports scalable expansion for growing loads. The design emphasizes bolt-on main circuit breakers and copper bus, delivering faster maintenance and lower long-term operating costs. Durable NEMA 3R enclosures provide outdoor suitability, while straightforward installation supports versatile indoor and exterior deployments.
Product Information
Extended Description
P48G11S2530HCUB Eaton: Eaton, Mini-Power center, 25 kva, mini-power center 1ph 480-120/240, copper, bolt-on, 30 spaces, hfd primary main cb, nema 3r
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S2530HCUB
UPC
786680229077
Product Length/Depth
14.58 in
Product Height
43.37 in
Product Width
20.41 in
Product Weight
578 lb
Compliances
NAFTA
Certifications
IEEE Certified CSA Certified ANSI UL Listed
Type
Mini-power center
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S2530HCUB
Feature: 25 kVA single-phase power capacity with 480-120/240 V input. Benefit: Manages essential loads with reliable voltage stability, enabling tighter site sizing and predictable uptime. Application: Manufacturing lines or data-center-adjacent equipment corridors where compact 25 kVA distribution is required and future expansion is anticipated. Long-tail keywords: 25 kVA transformer center, single-phase distribution, 480-120/240 V. Feature: Copper bus and bolt-on primary main circuit breaker (CB). Benefit: Improves electrical conductivity, reduces resistance, and speeds field maintenance or upgrades without rewiring. Application: Critical power paths in switchgear rooms and retrofit projects needing swift protection upgrades. Long-tail keywords: copper bus, bolt-on main CB, HFD primary main CB. Feature: 30 spaces for circuit breakers/branch circuits. Benefit: Scalable modularity supports phased capacity growth and simplified panel-filling strategy, reducing future downtime. Application: Facilities planned for load growth or variable production schedules. Long-tail keywords: 30 spaces, modular distribution center, expandable power center. Feature: NEMA 3R enclosure for outdoor and harsh environments. Benefit: Weather-resistant protection enables outdoor installations and placement in exposed equipment yards, reducing indoor space needs. Application: Outdoor transformer distribution in manufacturing yards, warehouses, or outdoors near processing lines. Long-tail keywords: NEMA 3R, outdoor power center, rugged enclosure. Feature: Certifications and compliance (IEEE, CSA, ANSI, UL Listed). Benefit: Meeting recognized electrical codes minimizes procurement risk and accelerates compliance audits. Application: Environments with strict regulatory standards and multi-national supply chains. Long-tail keywords: IEEE Certified, CSA Certified, UL Listed, ANSI standards. Feature: Robust physical dimensions and weight (14.58 in depth, 43.37 in height, 20.41 in width, 578 lb). Benefit: Solid, stable installation with predictable handling and mounting requirements for secure service. Application: Industrial installations requiring durable, floor-mounted power centers with stable support.
Get a Quick Quote for a Eaton P48G11S2530HCUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S2530HCUB?
Enquire Now
FAQs
The P48G11S2530HCUB is designed for 1-phase 480-120/240 V supply, with a bolt-on primary main circuit breaker and copper bus. Its NEMA 3R enclosure enables outdoor or indoor installation, and the unit offers 30 spaces for flexible circuit organization. This makes it suitable for compact data centers, manufacturing floors, and outdoor electrical rooms where space and wiring efficiency matter.
Key specifications include a 25 kVA single-phase rating, 1-phase 480-120/240 V input, copper bus, bolt-on primary main CB, and 30 circuit spaces. The enclosure is NEMA 3R rated, supporting outdoor use. The unit weighs 578 lb and provides robust fault protection with an HFD primary main CB, making it a scalable, reliable distribution solution.
Yes. The P48G11S2530HCUB uses a NEMA 3R enclosure designed for outdoor and harsh environments, enabling installation in exterior equipment yards or unprotected areas. Its rugged construction supports rain, dust, and temperature variations while maintaining safety and performance in demanding industrial settings.
The unit holds IEEE Certified, CSA Certified, ANSI, and UL Listed certifications. These marks indicate compliance with recognized electrical standards, facilitating regulatory approvals, reducing procurement risk, and ensuring safer operation across multinational projects and maintenance contracts.
The combination of copper bus, bolt-on main CBs, and a modular 30-space design reduces maintenance time and enables straightforward capacity upgrades, lowering lifecycle costs. With a robust enclosure and proven certifications, downtime is minimized, and procurement cycles are shortened, delivering improved total cost of ownership for facilities with growing or variable loads.
