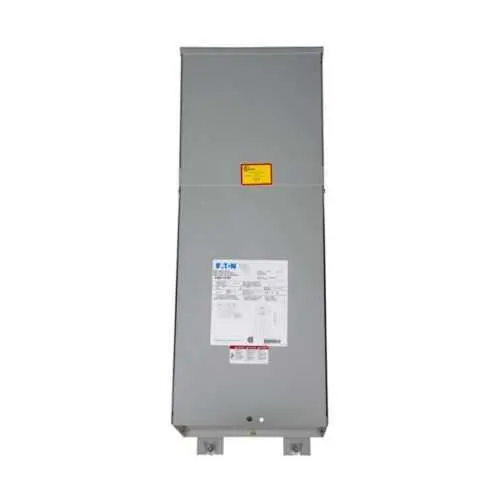

Eaton P48G11S25P Mini-Power Center - NEMA 3R
Part Number: P48G11S25P
Quick Summary
The Eaton P48G11S25P Mini-Power Center is a compact transformer-based power distribution unit designed for industrial panels and commercial facilities. Engineers face space constraints, weather exposure, and strict electrical codes in tight control rooms, and this unit addresses those challenges with a rugged NEMA 3R enclosure and a 25 kVA transformer. It carries CSA Certified, UL Listed, and IEEE Certified marks to support regulatory compliance and cross-industry interoperability. With indoor-outdoor suitability and a 480 V primary feeding 120/240 V secondary, it enables scalable power delivery while minimizing cabinet footprint. Designed to integrate with Eaton’s transformer ecosystem, it simplifies procurement and ongoing maintenance for mission-critical applications.
Product Information
Extended Description
P48G11S25P Eaton: Eaton Mini-Power center, Aluminum, NEMA 3R, 287, 60 Hz, Single-phase, 480 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 25 KVA, Indoor-Outdoor, 106A25K
Product Name
Eaton Mini-Power center
Catalog Number
P48G11S25P
UPC
786680140235
Product Length/Depth
14.5 in
Product Height
43.4 in
Product Width
15.9 in
Product Weight
422 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEMA Compliant
Certifications
CSA Certified UL Listed IEEE Certified ANSI
Coil material
Aluminum
Enclosure
NEMA 3R
Frame
287
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
106A25K
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
25 kVA
Weathershield
Indoor-Outdoor
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G11S25P
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 25 kVA single-phase transformer with 480 V primary and 120/240 V secondary. Business Impact: Delivers reliable, scalable power for mid-sized loads while minimizing transformer count in panels. Application: Industrial control panels and machine-sfeed equipment in manufacturing lines. Feature: NEMA 3R aluminum coil enclosure. Business Impact: Provides weather resistance and corrosion durability for indoor-outdoor installations, reducing maintenance cycles. Application: Outdoor substations and outdoor-rated control cabinets. Feature: Compact dimensions (14.5 in depth, 15.9 in width, 43.4 in height) and 422 lb weight. Business Impact: Maximizes space efficiency in crowded control rooms and wall-mounted enclosures. Application: Servo drives and PLC cabinets with limited footprint. Feature: Tap size 2 at -5% FCBN and wiring connection 106A25K. Business Impact: Supports precise voltage adaptation and efficient field wiring, lowering installation time. Application: Field connections for critical loads and step-down configurations. Feature: Weathershield rated Indoor-Outdoor with 60 Hz single-phase operation. Business Impact: Enables versatile placement without enclosure changes, streamlining site planning. Application: Outdoor parks, campuses, and manufacturing campuses. Feature: Certifications (CSA Certified, UL Listed, IEEE Certified, ANSI). Business Impact: Ensures compliance with safety and performance standards, reducing risk and procurement complexity. Application: Any regulated control system requiring verified electrical reliability.
Get a Quick Quote for a Eaton P48G11S25P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G11S25P?
Enquire Now
FAQs
The P48G11S25P uses a NEMA 3R enclosure suitable for both indoor and outdoor installations. Its aluminum coil construction and rugged build support outdoor rated control cabinets, service entrances, and weather-exposed panels, reducing the need for separate enclosures and simplifying site planning.
This unit delivers 25 kVA with a 480 V primary and 120/240 V secondary. It operates at 60 Hz, is single-phase, and includes a -5% FCBN tap setting with a 106A25K wiring configuration, enabling flexible voltage adaptation for diverse loads in industrial environments.
Yes. The transformer center is CSA Certified, UL Listed, IEEE Certified, and ANSI compliant, ensuring electrical safety, reliability, and interoperability across standard industrial control systems, panels, and distribution networks.
The Mini-Power Center is designed to align with Eaton’s transformer catalog ecosystem, featuring compatible mounting footprints, aluminum coil construction, and a common warranty. This compatibility simplifies procurement, spare parts provisioning, and maintenance planning for Eaton-based automation environments.
Eaton provides a one-year warranty from installation or eighteen months from shipment, whichever occurs first. This policy, combined with CSA/UL certifications and IEEE/ANSI compliance, supports predictable lifecycle planning and reduced total cost of ownership for critical power distribution.
