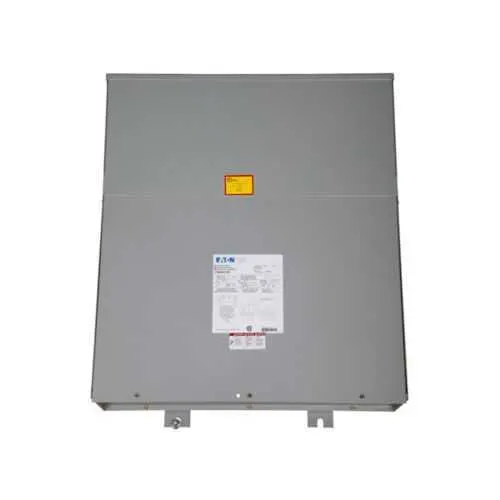

Eaton P48G28T1518CUBLS47 Mini-Power center - CSA/IEEE/UL
Part Number: P48G28T1518CUBLS47
Quick Summary
Eaton Mini-Power center is a compact power distribution solution for critical facilities and machinery. It helps simplify installation and improve reliability in tight spaces, reducing commissioning time and field wiring complexity. The unit carries CSA Certified, IEEE Certified, and ANSI UL Listed markings for safety, performance, and regulatory compliance. Designed for a 480 V primary to 208Y/120 V secondary feed and 60 Hz operation, it supports scalable control panel installations. With a NEMA 3R enclosure, copper windings, and straightforward bolt-on interior, it delivers long service life, predictable performance, and lower maintenance costs. Its 15 kVA rating fits a broad range of critical loads while meeting industry standards.
Product Information
Extended Description
P48G28T1518CUBLS47 Eaton: 15 kVA Mini Power Center 3PH 480-208Y/120, 115C Rise, Copper Windings, Copper bolt-on interior, NEMA 3R, 18 branch spaces, 47 dB Sound
Product Name
Eaton Mini-Power center
Catalog Number
P48G28T1518CUBLS47
UPC
786680235467
Product Length/Depth
9.35 in
Product Height
34.27 in
Product Width
31.5 in
Product Weight
404 lb
Compliances
NAFTA
Certifications
CSA Certified IEEE Certified ANSI UL Listed
Coil material
Copper
Enclosure
NEMA 3R
Frame
289B
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G1H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Sound Level
47 dB
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G28T1518CUBLS47
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → 15 kVA rating with 480 V primary and 208Y/120 V secondary at 60 Hz. Impact → Provides reliable, scalable power for automation assets, reducing downtime and voltage variability. Application → ideal for machine control panels, PLC racks, and drive systems in manufacturing environments. Feature → NEMA 3R enclosure for versatile installation in indoor or outdoor spaces. Impact → Protects windings and components from weather, enabling outdoor service entrances and rugged shop floors. Application → outdoor control panels, switchgear rooms, and exposed-wall installations. Feature → Copper windings and copper bolt-on interior. Impact → Improves efficiency, lowers impedance, and simplifies maintenance with robust terminal access. Application → critical loads and high inrush applications in industrial automation. Feature → Sound level of 47 dB and a compact footprint. Impact → Reduces acoustic footprint on open floors and frees valuable space. Application → open-plan manufacturing cells, data centers, and instrument rooms requiring quiet operation. Feature → Wall mounting and M48G1H wiring connection. Impact → Simplifies installation, routing, and future upgrades with flexible wiring options. Application → retrofit projects and new installations in constrained spaces. Feature → Certifications and compliance: CSA, IEEE, ANSI UL Listed; NAFTA. Impact → Procurement risk reduction and regulatory confidence across global supply chains. Application → industrial facilities and utility interfaces requiring verified standards.
Get a Quick Quote for a Eaton P48G28T1518CUBLS47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G28T1518CUBLS47?
Enquire Now
FAQs
Consider mounting location (wall mount compatible), enclosure protection (NEMA 3R suitable for indoor/outdoor exposed areas), and clearances around the unit for service access. Note the unit dimensions (31.5 in wide, 34.27 in high, 9.35 in deep) and weight (404 lb) when planning rack or wall supports. Ensure wiring complies with M48G1H connection requirements and facility grounding practices.
The 15 kVA rating provides adequate capacity to feed 480 V primary to 208Y/120 V secondary circuits with 60 Hz operation, supporting PLCs, relays, drives, and control loads with stable voltage. This reduces voltage drop and startup transients, improving automation reliability and uptime in conveyors, presses, and other automated lines.
Yes. The unit is CSA Certified, IEEE Certified, and ANSI UL Listed, and supports NAFTA compliance, reducing procurement risk and ensuring regulatory alignment across North American operations. These certifications reassure procurement, maintenance teams, and end users about safety and performance expectations in industrial environments.
The Mini-Power center offers a compact footprint and wall-mount capability, enabling installation in tight control rooms or near equipment aisles. Its NEMA 3R enclosure adds weather resistance for semi-exposed locations, while copper windings and a bolt-on interior facilitate straightforward serviceability and future upgrades without extensive rewiring.
Copper windings and robust build reduce impedance and improve efficiency, contributing to lower heat generation and extended component life. The unit’s 60 Hz operation, 47 dB sound profile, and straightforward maintenance approach translate to reduced maintenance intervals, easier parts replacement, and lower total cost of ownership over its service life.
