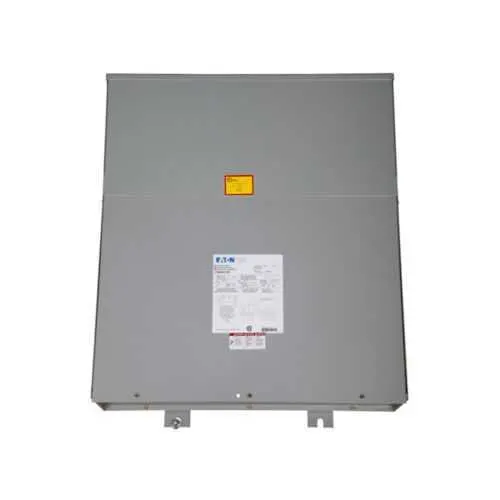

Eaton Mini-Power center P48G28T1518CUBS6 - UL Listed
Part Number: P48G28T1518CUBS6
Quick Summary
Eaton Mini-Power center is a compact three-phase power distribution unit ideal for data centers and industrial facilities. Engineers often contend with space constraints, retrofit challenges, and the need for reliable outdoor enclosures. This solution carries CSA Certified, UL Listed, ANSI, and IEEE Certified marks, offering compliance and performance in demanding environments. With an 18-space capacity, a 15 kVA rating, and a NEMA 3R 316SS enclosure, it supports scalable, secure power distribution while simplifying procurement and maintenance for systems that demand uptime.
Product Information
Extended Description
P48G28T1518CUBS6 Eaton: Eaton, Mini-Power center, 15 kva, mini-power center 3ph, 480 delta-208y/120, copper, bolt-on, 18 spaces, nema 3r 316ss enclosure
Product Name
Eaton Mini-Power center
Catalog Number
P48G28T1518CUBS6
UPC
786680229138
Product Length/Depth
9.35 in
Product Height
34.27 in
Product Width
31.5 in
Product Weight
370 lb
Compliances
NAFTA
Certifications
CSA Certified UL Listed ANSI IEEE Certified
Type
Mini-power center
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G28T1518CUBS6
The 15 kVA transformer integrated into the Mini-Power center delivers reliable power for critical loads, reducing voltage variability and improving equipment life, which translates to lower maintenance costs and fewer downtime events in manufacturing lines. This design supports an 18-space, bolt-on configuration, enabling straightforward expansion as your plant adds equipment or shifts production focus, providing a clear path to scalable power without a full panel replacement. With 3-phase 480 delta-208Y/120 wiring, it aligns with common facility distributions, simplifying wiring schemes and accelerating installation while ensuring compatibility with existing switchgear and feeders. Copper bolt-on conductors maximize current capacity and minimize resistance, improving thermal performance during peak loads and reducing voltage drop across long runs. The NEMA 3R, 316SS enclosure protects against weather, dust, and corrosion, supporting outdoor installations and simplifying compliance in harsh environments. Finally, NAFTA compliance alongside CSA UL ANSI IEEE certifications reduces procurement risk and speeds regulatory approvals, enabling faster project timelines and lower lifecycle risk for industrial operators.
Get a Quick Quote for a Eaton P48G28T1518CUBS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G28T1518CUBS6?
Enquire Now
FAQs
Plan for a bolted installation on a solid, level base compatible with a 370 lb unit. Ensure adequate clearance for 18-space access, service connections, and cable routing. Verify outdoor or indoor mounting per the NEMA 3R enclosure, and place the center in a protected area to maintain enclosure integrity and accessible maintenance.
The unit is rated at 15 kVA and configured for 3-phase operation with a 480 delta-208Y/120 voltage arrangement. It features copper bolt-on conductors, 18 spaces for expansion, and a NEMA 3R 316SS enclosure, suitable for both indoor and outdoor installations. Dimensions are 34.27 in high, 31.5 in wide, and 9.35 in deep with an approximate weight of 370 lb.
Yes. The P48G28T1518CUBS6 uses a NEMA 3R 316SS enclosure designed for outdoor use and harsh environments. Its corrosion-resistant construction supports long-term reliability in outdoor electrical rooms, plant exteriors, or exposed utility areas, helping to protect transformers, switchgear, and feeders from weather and debris.
The product carries CSA Certified, UL Listed, ANSI, and IEEE Certified marks. These certifications confirm compliance with safety, reliability, and performance standards, reducing regulatory risk, simplifying vendor qualification, and accelerating project approvals for regulated industries and international projects.
The 18-space capacity supports future expansion without a full panel replacement, lowering capital expenditures during growth. Copper bolt-on conductors improve efficiency and heat management, reducing operational losses. The rugged enclosure minimizes maintenance needs in outdoor environments, contributing to lower lifecycle costs and improved uptime for critical processes.
