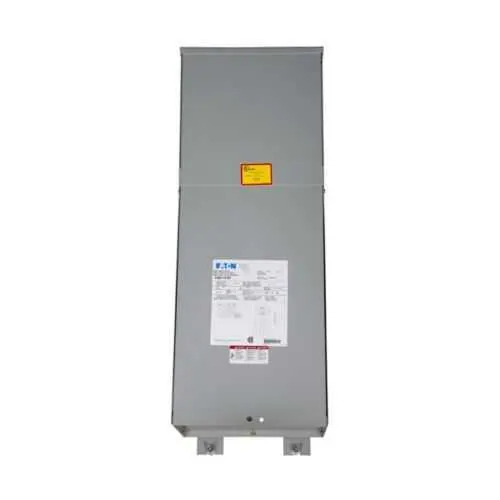

Eaton P48G28T1518CUS6 Mini-Power center - UL Listed
Part Number: P48G28T1518CUS6
Quick Summary
Eaton P48G28T1518CUS6 Mini-Power center is a compact, three-phase power distribution unit for industrial facilities. When upgrading panels or expanding capacity, engineers often contend with limited space, long install times, and tight compliance windows. This unit carries CSA Certified, IEEE Certified, ANSI, and UL Listed marks to streamline audits and procurement. Its 18-space cabinet, 316 stainless steel enclosure, and wall-mount design deliver durable power distribution with scalable capacity, reducing downtime and facilitating quick field integrations in demanding environments. With a 15 kVA rating and copper windings, it supports reliable, code-compliant operation for manufacturing lines, data centers, and control panels alike.
Product Information
Extended Description
P48G28T1518CUS6 Eaton: Eaton Mini-Power center, 15 Kva, Three-phase, PV: 480, SV: 208Y/120V, copper, plug-on, 18 spaces, NEMA 3R, 316 SS enclosure, Frame: 289B
Product Name
Eaton Mini-Power center
Catalog Number
P48G28T1518CUS6
UPC
786680239526
Product Length/Depth
9.35 in
Product Height
34.27 in
Product Width
31.5 in
Product Weight
320 lb
Compliances
NAFTA
Certifications
CSA Certified IEEE Certified ANSI UL Listed
Coil material
Copper
Design
MPC 3 Ph
Enclosure
NEMA 3RX
Frame
289B
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G1H
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Special features
316 SS Enclosure
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G28T1518CUS6
Feature: 15 kVA three-phase transformer with 480 V primary and 208Y/120 V secondary, 18-space cabinet. Business Impact: Enables compact, scalable power distribution for medium-load machinery while preserving voltage integrity and reducing wiring complexity. Application: Panel boards on manufacturing lines and machine centers needing reliable step-down power. Feature: 316 stainless steel enclosure with NEMA 3R rating. Business Impact: Delivers outdoor and wash-down resistance, cutting maintenance costs and boosting uptime. Application: Outdoor plant areas, outdoor enclosures, and process facilities exposed to moisture or corrosion. Feature: Copper windings with 180 °C insulation and 115 °C rise. Business Impact: Improves efficiency, thermal performance, and long-term durability, lowering lifecycle costs. Application: High-temperature industrial environments and continuous-duty applications. Feature: Plug-on wiring connection (M48G1H) in an 18-space, wall-mount design. Business Impact: Speeds installation and serviceability, reducing commissioning time and labor costs. Application: New builds and retrofits requiring fast, reliable panel integration. Feature: Certifications and compliance (CSA, IEEE, ANSI, UL Listed). Business Impact: Simplifies supplier qualification and regulatory adherence, reducing procurement risk. Application: Medical facilities, data centers, and manufacturing plants with strict compliance needs. Feature: Frame 289B, NEMA 3RX enclosure, 316 SS features. Business Impact: Structural robustness for space-constrained installations while maintaining a clean, serviceable footprint. Application: Industrial spaces with limited installation depth and high exposure to elements.
Get a Quick Quote for a Eaton P48G28T1518CUS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P48G28T1518CUS6?
Enquire Now
FAQs
The unit is designed for a 480 V primary, delivering 208Y/120 V secondary in a three-phase configuration at 60 Hz. With copper windings and a 15 kVA rating, it suits mid-sized industrial loads and control panels. It also uses plug-on connections for straightforward field wiring and maintenance, reducing installation time and potential wiring errors.
The 316 SS enclosure provides superior corrosion resistance and structural durability, enabling reliable operation in outdoor or wash-down areas. NEMA 3R protection helps shield critical power distribution equipment from weather and contamination, decreasing maintenance frequency and extending service life in demanding industrial settings.
This Eaton unit carries CSA Certified, IEEE Certified, ANSI, and UL Listed marks, meeting widely recognized safety and performance standards. These certifications simplify procurement, regulatory audits, and quality assurance for sectors such as healthcare, data centers, and manufacturing, helping ensure compliant installations with fewer risk factors.
Typical applications include feeding medium-load equipment from a 480 V main to 208Y/120 V distribution in control panels, machine centers, and small data center auxiliary power. The 18-space cabinet supports scalable expansion, while the wall-mount design offers flexible placement in constrained plant rooms or equipment rooms without compromising accessibility.
Copper windings and high-temperature insulation improve efficiency and lifecycle reliability, reducing energy losses and replacement costs. The plug-on wiring and modular 18-space configuration shorten commissioning and future expansions, delivering faster ROI through lower labor, faster upgrades, and reduced downtime during transitions or maintenance events.
