Eaton P48G28T2124 Mini-Power Center - UL Listed
Part Number: P48G28T2124
Quick Summary
Eaton Mini-Power Center P48G28T2124 is a compact three‑phase power distribution solution designed for industrial panels and equipment rooms. Engineers often wrestle with limited floor space, lengthy installation times, and the challenge of meeting safety and regulatory requirements; this unit consolidates transformer and distribution in a single, rugged enclosure. The design carries IEEE Certified, UL Listed, and CSA Certified markings, with ANSI alignment for broader compliance. Additionally, the NEMA 3R enclosure supports reliable operation in indoor and sheltered outdoor environments. By delivering a compact footprint, straightforward wiring, and NAFTA‑compliant construction, it enables faster projects, reduced field labor, and predictable maintenance to improve total cost of ownership.
Product Information
Extended Description

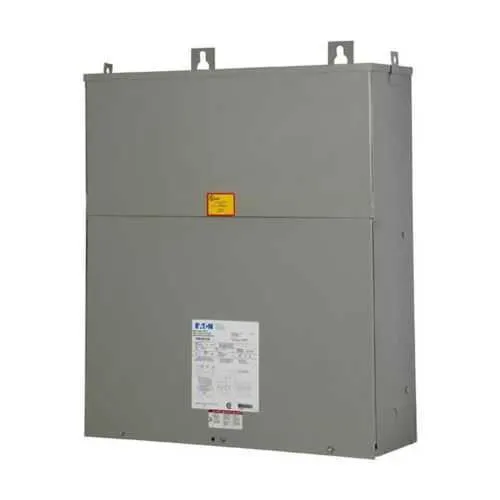

P48G28T2124 Eaton: 22.5 KVA Mini Power Center 3PH 480V Delta-208Y/120V 24 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P48G28T2124
UPC
786680225772
Product Length/Depth
13.62 in
Product Height
40.01 in
Product Width
32.63 in
Product Weight
635 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
IEEE Certified UL Listed ANSI CSA Certified
Coil material
Aluminum
Enclosure
NEMA 3R
Frame
291B
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G1J
Frequency rating
60 Hz
kVA
22.5 kVA
Kva Rating
22.50 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
22.5 kVA
Modification 1
NEMA 3R
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G28T2124
Feature: 22.5 kVA three‑phase transformer with 480 V primary and 208Y/120 V secondary. Business impact: ensures reliable, clean step‑down power for controls and machines while supporting consistent voltage across loads. Application: machine builders and panel builders needing stable automation power. Feature: NEMA 3R enclosure for durable protection. Business impact: reduces downtime in variable environments and facilitates outdoor or sheltered indoor installations. Application: outdoor panels and sheltered plant spaces. Feature: Wall‑mount design with substantial footprint management. Business impact: saves floor space and simplifies retrofits, enabling quick integration into existing racks. Application: compact control rooms and space‑constrained automation cabinets. Feature: Wiring connection M48G1J and tap settings 2 at ‑5% FCBN. Business impact: minimizes field wiring errors and supports voltage optimization for tighter control of loads. Application: OEM equipment and retrofit projects requiring precise wiring schemes. Feature: 13.62 in depth, 40.01 in height, 32.63 in width, 635 lb weight. Business impact: predictable installation planning and sturdy, vibration‑resistant installation. Application: on‑site handling and industrial installations. Feature: Certifications IEEE, UL Listed, ANSI, CSA; NAFTA compliance. Business impact: procurement confidence, regulatory alignment, and smoother cross‑border sourcing. Application: compliance‑driven projects across North America.
