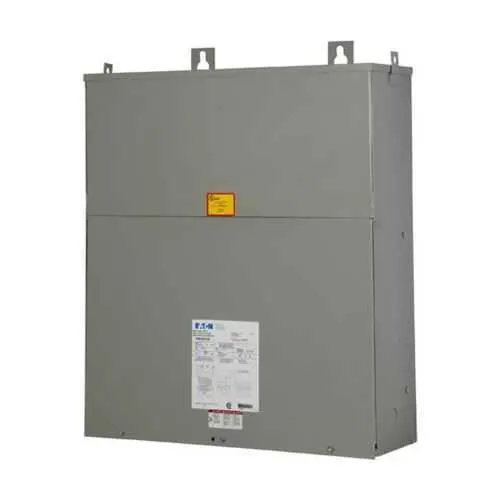

Eaton Mini-Power Center P48G28T2124CUBS64X - NEMA 4X
Part Number: P48G28T2124CUBS64X
Quick Summary
Eaton Mini-Power Center provides compact, reliable power distribution for industrial control panels. In today’s automation environments, engineers wrestle with limited space, rugged duty cycles, and the need to meet evolving safety and performance standards. This unit is CSA Certified, UL Listed, and ANSI certified, reinforcing compliance in diverse markets and helping avoid costly rework. With a 22.5 kVA three-phase rating and a 480 V primary to 208Y/120 V secondary, it supports scalable panel designs while delivering steady voltage under load. The NEMA 4X enclosure adds weather resistance and easy outdoor or wet-area installation, while copper windings and robust insulation improve efficiency and lifespan. The result is faster deployment, lower total cost of ownership, and better uptime for critical processes.
Product Information
Extended Description
P48G28T2124CUBS64X Eaton: 22.5 kVA NEMA 4X Mini Power Center 3PH 480V to 208Y/120V Bolt-on breakers, Copper Windings 24 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P48G28T2124CUBS64X
UPC
786680226236
Product Length/Depth
14.5 in
Product Height
37.63 in
Product Width
30.84 in
Product Weight
898 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
CSA Certified UL Listed IEEE Certified ANSI
Coil material
Copper
Enclosure
NEMA 4X
Frame
2914X
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M48G1J
Frequency rating
60 Hz
kVA
22.5 kVA
Kva Rating
22.50 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
22.5 kVA
Modification 1
NEMA 4X
Special features
NEMA 4X
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P48G28T2124CUBS64X
Feature: 22.5 kVA three-phase transformer with 480 V input and 208Y/120 V output. Business impact: Enables centralized, dense power distribution within compact panels, reducing footprint and wiring complexity while maintaining voltage stability under fluctuating loads. Application: Industrial control panels for manufacturing lines and process automation. Feature: NEMA 4X enclosure with weather and washdown resistance. Business impact: Enhances reliability in harsh environments, lowers maintenance cycles, and supports outdoor installations without protective housings. Application: Outdoor panels, food and beverage processing, and harsh plant floors where moisture or corrosion is a concern. Feature: Copper windings and 180 °C insulation. Business impact: Improves electrical efficiency, thermal performance, and long-term durability, reducing energy waste and unplanned downtime. Application: High-demand production lines and continuous operation facilities. Feature: Bolt-on breakers and wiring connection M48G1J; 24-space capacity. Business impact: Simplifies field wiring, speeds installation, and enables scalable expansion without heavy rework. Application: Retrofit projects and new builds needing modular, serviceable distribution. Feature: Wall-mount design with 14.5 in depth, 37.63 in height, and 30.84 in width. Business impact: Optimizes space planning in compact control rooms, maximizing footprint efficiency and easing access for maintenance. Application: Industrial automation cabinets in constrained environments. Feature: Compliance and warranty support; NAFTA compliance, CSA/UL/IEEE/ANSI certifications; one-year warranty (or 18 months from shipment). Business impact: Reduces procurement risk, accelerates regulatory approvals, and protects investment with established service terms. Application: Global manufacturing sites and regulated facilities where traceability matters.
