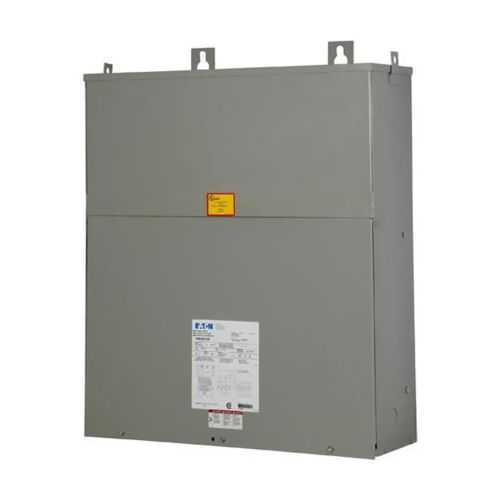

Eaton P60G11S0312 Mini-Power Center - UL Listed
Part Number: P60G11S0312
Quick Summary
Eaton Mini-Power center is a compact transformer solution for single-phase power distribution in commercial panels. It reduces wiring complexity and ensures reliable secondary voltages without consuming excessive floor space. The unit carries UL Listed, CSA Certified, and ANSI/IEEE certified markings to meet safety and performance standards. Designed for quick wall-mount installation with 600 V primary and 120/240 V secondary outputs, it improves site power reliability and reduces labor costs. With 12 spaces, aluminum-windings transformer, and plug-in branch breakers, the P60G11S0312 enables modular expansion and simplified maintenance, reducing spare parts inventory and downtime. It supports wall-mount installation for space-constrained rooms and integrates with standard distribution panels, meeting NAFTA compliance expectations for cross-border procurement.
Product Information
Extended Description
P60G11S0312 Eaton: 3 KVA Mini Power Center 1PH 600V-120/240V 12 spaces, Aluminum windings, Plug-in branch breakers
Product Name
Eaton Mini-Power center
Catalog Number
P60G11S0312
UPC
786680225628
Product Length/Depth
8.9 in
Product Height
29.5 in
Product Width
11.9 in
Product Weight
125 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
CSA Certified ANSI IEEE Certified UL Listed
Coil material
Aluminum
Enclosure
NEMA 3R
Frame
284
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M60G11C
Frequency rating
60 Hz
kVA
3 kVA
Kva Rating
3 kVA
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
3 kVA
Modification 1
NEMA 3R
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P60G11S0312
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 3 kVA single-phase transformer with a 600 V primary and a 120/240 V secondary. Business Impact: Delivers compact, reliable power for small load centers, minimizing voltage drop and power quality issues while enabling predictable performance. Application: Ideal for commercial lighting, control circuits, and small motors in retail, office, or light industrial spaces. Feature: 12-space, NEMA 3R enclosure and aluminum windings. Business Impact: Provides weather resistance in protected outdoor or harsh indoor environments with long service life and reduced maintenance. Application: Suitable for wall-mounted panel boards in factories or service areas where space is at a premium. Feature: Plug-in branch breakers and M60G11C wiring connection. Business Impact: Simplifies installation and future upgrades, lowers spare parts inventory, and reduces downtime during maintenance. Application: Quick field changes in evolving control schemes. Feature: Compact footprint and weight. Business Impact: Fits tight spaces, speeds commissioning, and minimizes disruption during retrofit projects. Application: Wall-mount installations in constrained rooms. Feature: Compliance and warranty framework. Business Impact: Ensures regulatory alignment (UL Listed, CSA Certified, ANSI/IEEE) and predictable support with Eaton policy. Application: Cross-border procurement and long-term service planning in NAFTA regions.
Get a Quick Quote for a Eaton P60G11S0312
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P60G11S0312?
Enquire Now
FAQs
The P60G11S0312 is a wall-mount, 12-space mini-power center designed for standard distribution panels. It uses the M60G11C wiring connection and plug-in branch breakers, integrating with Eaton and compatible MCB types without extensive rework. With a NEMA 3R enclosure and a 29.5 in height, it suits indoor or protected outdoor locations when mounted correctly.
Key specs include a 3 kVA rating, single-phase operation, 600 V primary, 120/240 V secondary, 60 Hz frequency, and aluminum coil windings. The voltage taps at -5% FCBN support minor compensation, and the center provides 12 spaces for modular expansion while maintaining a NEMA 3R protection level.
Yes. Its ratings and certifications (UL Listed, CSA Certified, ANSI/IEEE) meet common regulatory requirements, and NAFTA compliance streamlines cross-border supplier processes. The compact footprint (8.9 in depth, 11.9 in width, 29.5 in height) fits many commercial and light industrial panel applications, including panel boards in retail, healthcare, and machine control cabinets.
The unit is UL Listed, CSA Certified, and ANSI/IEEE Certified, with NAFTA compliance to support cross-border procurement. These certifications confirm safety, electrical performance, and compatibility with North American standards, reducing validation effort for new installations and helping with regulatory approvals and maintenance planning.
Warranty follows Eaton Selling Policy 25-000: one year from installation or 18 months from shipment, whichever occurs first. The 3 kVA center reduces spare parts costs and downtime, supports easy upgrades, and complies with standards for reliable power distribution, delivering favorable total cost of ownership across multi-site installations.
