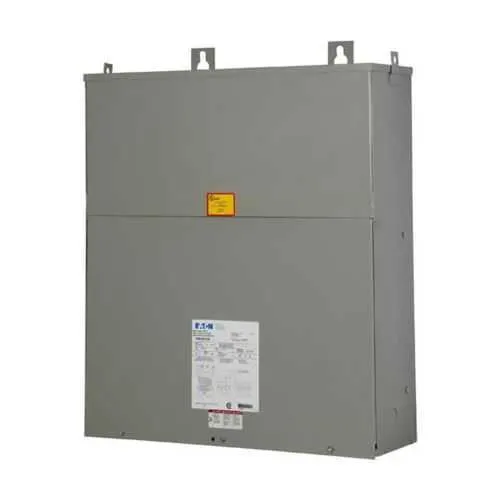

Eaton P60G11S0312SS Mini-Power center - NEMA 3RX
Part Number: P60G11S0312SS
Quick Summary
The Eaton P60G11S0312SS Mini-Power Center delivers compact power distribution for 3 kVA systems in single-phase industrial panels. Mismatched enclosures, wiring complexity, and installation delays are common bottlenecks in panel upgrades. CSA Certified, UL Listed, and IEEE Certified units help ensure safety and regulatory readiness in the field. Designed for wall-mount use in NAFTA-compliant environments, it reduces installation time and total cost of ownership while delivering reliable, compliant power for critical equipment.
Product Information
Extended Description
P60G11S0312SS Eaton: 3 kVA Mini Power Center 1PH 600V-120/240V SS Enclosure 12 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P60G11S0312SS
UPC
786680225444
Product Length/Depth
8.9 in
Product Height
29.5 in
Product Width
11.9 in
Product Weight
150 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
CSA Certified ANSI IEEE Certified UL Listed
Coil material
Aluminum
Enclosure
NEMA 3RX
Frame
284
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M60G11C
Frequency rating
60 Hz
kVA
3 kVA
Kva Rating
3 kVA
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
3 kVA
Modification 1
NEMA 3RX
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P60G11S0312SS
The P60G11S0312SS delivers 3 kVA as a single‑phase transformer with a 600 V primary and a 120/240 V secondary. This standard rating aligns with common control panels, enabling fewer part substitutions and consistent performance across assemblies. Ideal for factory automation panels, machine control centers, and small distribution boards that require reliable, code‑compliant power. The unit uses an aluminum coil and a rugged NEMA 3RX enclosure, offering excellent heat dissipation and weather‑resistant protection for indoor and select outdoor installations. Suitable for industrial environments, utility rooms, and equipment closets where resistance to dust, moisture and corrosion matters. Wall‑mount mounting and a 12‑space frame (284) simplify retrofits and reduce floor space, while organizing wiring harnesses for quicker commissioning. Tap size 2 at -5% FCBN enables voltage adjustments to maintain regulation under fluctuating loads, improving voltage stability for sensitive equipment and reducing nuisance tripping in critical lines. Wiring connection M60G11C streamlines field wiring and harmonizes with Eaton components, speeding installation and reducing sourcing complexity. Certifications (CSA, ANSI, IEEE, UL) and NAFTA compliance support regulatory adherence, while a one‑year warranty (or 18 months from shipment) mitigates risk and simplifies procurement on regulated projects.
Get a Quick Quote for a Eaton P60G11S0312SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P60G11S0312SS?
Enquire Now
FAQs
The P60G11S0312SS is designed for wall-mount installation in NAFTA-compliant environments and fits standard industrial control panels that require a 3 kVA single‑phase transformer. Its NEMA 3RX enclosure and 12-space frame support straightforward retrofits and new builds. Use with compatible Eaton components and M60G11C wiring to minimize field modifications and maintain code compliance.
Key specs include 3 kVA rating, 60 Hz operation, 600 V primary, and 120/240 V secondary, with aluminum coil construction and a 180 °C insulation class. These features deliver consistent voltage transformation with robust thermal performance, ensuring reliable operation for PLCs, sensors, and motor control circuits in demanding environments.
Yes. The P60G11S0312SS is well-suited for factory automation, machine control centers, and small distribution panels requiring a compact, compliant 3 kVA, single‑phase transformer. Its wall-mount design, 12-space frame, and compatible wiring simplify integration into new builds or panel upgrades without sacrificing space or accessibility.
This unit carries CSA Certified and UL Listed marks, ANSI/IEEE certification, and NAFTA compliance. These certifications support safety approvals, regulatory alignment, and international procurement processes, reducing risk during audits and ensuring compatibility with established electrical codes in North American facilities.
The rugged NEMA 3RX enclosure, aluminum coil, and standardized Eaton interfaces contribute to long-term reliability and ease of maintenance. With a one-year warranty from installation (or 18 months from shipment) and streamlined sourcing, projects experience reduced downtime, faster commissioning, and predictable lifecycle costs across industrial distributions.
