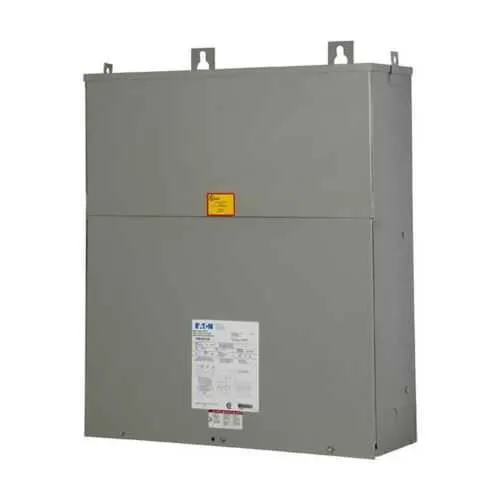

Eaton P60G11S1530CUB Mini-Power center - UL Listed
Part Number: P60G11S1530CUB
Quick Summary
Eaton Mini-Power center is a compact, single‑phase transformer solution designed for control panels and power distribution in small facilities. When space is at a premium and wiring complexity grows, engineers need a reliable, easy‑to‑install option. UL Listed, CSA Certified, and IEEE Certified markings support safety, regulatory compliance, and interoperability across industrial environments. With a 15 kVA rating and 600 V primary feeding 120/240 V, plus a NEMA 3R enclosure and wall‑mount capability, deployment is faster and maintenance is simpler. This combination helps manufacturers shrink footprint while improving efficiency and ensuring long-term service continuity.
Product Information
Extended Description
P60G11S1530CUB Eaton: Eaton Mini-Power center, 15 kVA, 1PH, 600V to 120/240V, Bolt-on breakers, Copper Windings 30 spaces
Product Name
Eaton Mini-Power center
Catalog Number
P60G11S1530CUB
UPC
786680226083
Product Length/Depth
14.58 in
Product Height
33 in
Product Width
20.41 in
Product Weight
385 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NAFTA
Certifications
UL Listed ANSI CSA Certified IEEE Certified
Coil material
Copper
Enclosure
NEMA 3R
Frame
310
Insulation
180 °C
Mounting
Wall Mount
Tap size
2 at -5% FCBN
Type
Mini-power center
Wiring connection
M60G11HB
Frequency rating
60 Hz
kVA
15 kVA
Kva Rating
15 kVA
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Modification 1
NEMA 3R
Weathershield
Not required
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton's Transformer Flex Center
Eaton Specification Sheet - P60G11S1530CUB
Feature: 15 kVA single-phase transformer with 600 V primary stepping down to 120/240 V. Business Impact: Enables compact power distribution for control panels in constrained spaces, reducing enclosure count and wiring complexity. Application: Ideal for industrial control panels and small commercial systems. Feature: Copper windings. Business Impact: Improves efficiency and durability, reducing energy losses and long-term maintenance costs. Application: Critical in harsh or high-load environments where reliability matters. Feature: NEMA 3R enclosure. Business Impact: Provides weather resistance and safe operation for indoor/outdoor installations, lowering risk and downtime. Application: Suitable for wall-mounted transformer centers in variable environments. Feature: Wall-mount installation. Business Impact: Frees floor space and simplifies retrofits or new builds in tight plant layouts. Application: Common in compact production lines and switchgear rooms. Feature: Bolt-on breakers with 30 spaces. Business Impact: Flexible protection and easy expansion of circuits without rework. Application: Enables customized distribution for mixed-load panels. Feature: Certifications and warranty. Business Impact: Ensures regulatory compliance and reduces total cost of ownership with a one-year (or 18 months from shipment) warranty. Application: Supports procurement for regulated industries and long-term service planning.
Get a Quick Quote for a Eaton P60G11S1530CUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton P60G11S1530CUB?
Enquire Now
FAQs
The P60G11S1530CUB is a single-phase transformer with a 600 V primary and a 120/240 V secondary, rated at 15 kVA. It is designed for wall-mount installation in a NEMA 3R enclosure and uses bolt-on breakers for scalable protection, making it suitable for compact control panels and small power-distribution applications.
This unit carries UL Listed, CSA Certified, and IEEE Certified markings, ensuring safety and interoperability across markets. It includes a warranty of one year from installation or eighteen months from shipment, whichever occurs first, providing risk mitigation for procurement and maintenance teams.
Yes. It features a NEMA 3R enclosure designed for indoor and limited outdoor use, supporting wall-mount installation. This combination suits compact control rooms, equipment closets, and exposed or partially protected spaces where reliable transformer distribution is required.
Key features include bolt-on breakers with 30 spaces for flexible circuit protection, a copper-wound design for reliability, and a compact footprint (14.58 in depth, 20.41 in width, 33 in height). These elements simplify wiring, speed up commissioning, and minimize rework in busy industrial environments.
Industries with compact control panels and critical power distribution needs, such as manufacturing, facilities management, and commercial electrical installs, benefit most. The 15 kVA rating, single-phase design, and durable enclosure make it ideal for controlling loads in space-constrained switchgear rooms and on machine centers.
